Section 1 | Getting Started
Site Location
Choose a location for your EZ Connect Wireless Ethernet
Adapter. Usually, the best location is at the center of your
wireless coverage area, and if possible within line-of-sight of
your main wireless broadcast device, such as an Access Point
or a Wireless Router.
Connect the Ethernet Cable
The EZ Connect Wireless Ethernet Adapter can be connected
to any device that has a standard Ethernet connection. Use a
standard Category 5 UTP Crossover Ethernet cable with an RJ-
45 connector to connect the Wireless Ethernet Adapter to any
Ethernet-enabled device.
Note: Do not connect this adapter directly to the LAN
port of a router, such as the Barricade.
Connect the Power Cable
Connect the power adapter cable to the 5V DC power socket
on the rear panel.
Warning: Use only the power adapter supplied with the
SMC2670W. Using another power adapter will cause
damage to the unit and void the warranty.

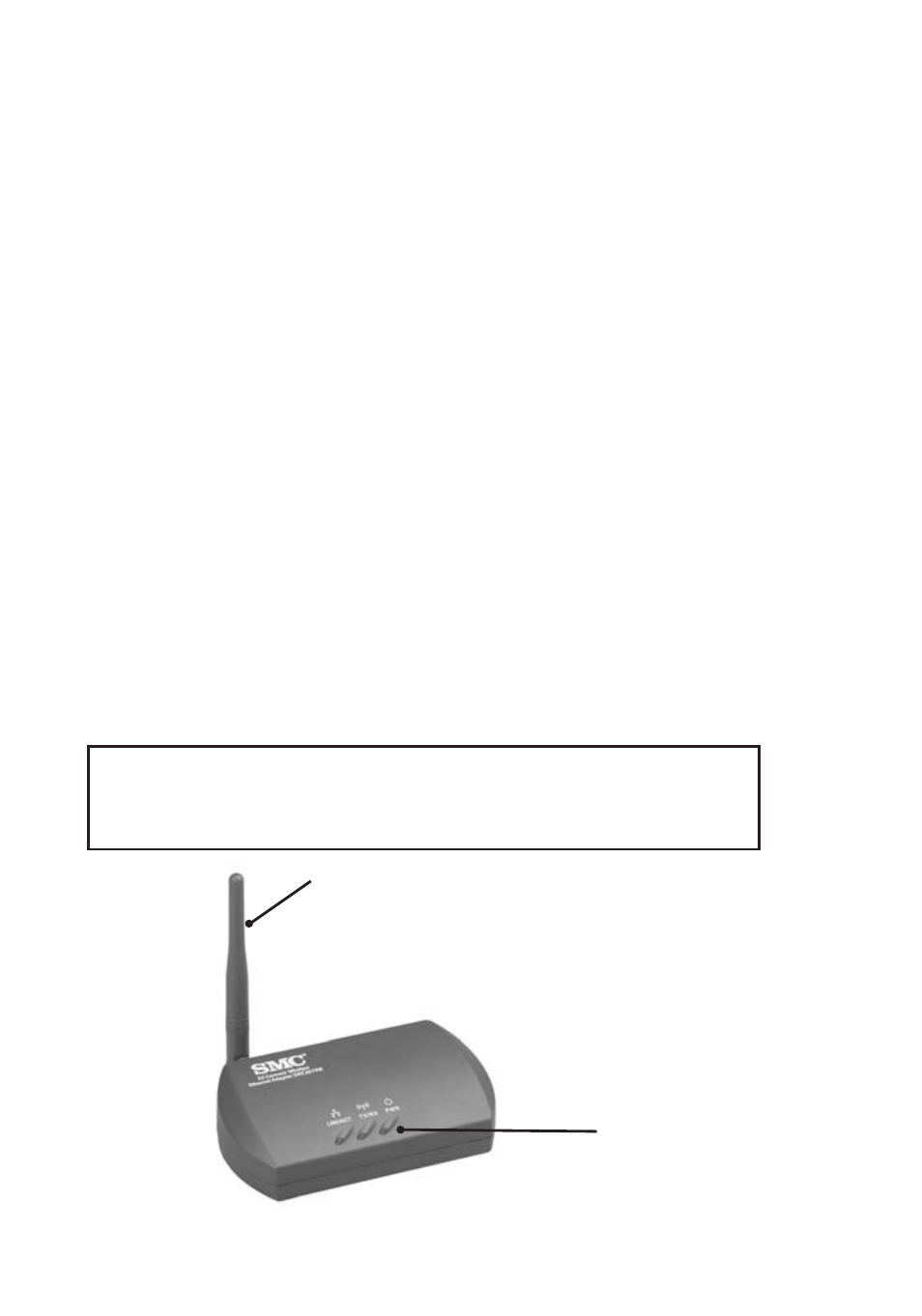

Antenna
Indicator Lights:
• Power
• Wireless Transmit/Receive
• Ethernet Link/Acivity
