SUPER MICRO Computer SUPERSERVER 6012L-6 User Manual
Page 42
5-8
S
UPERSERVER 6012L-6 User’s Manual

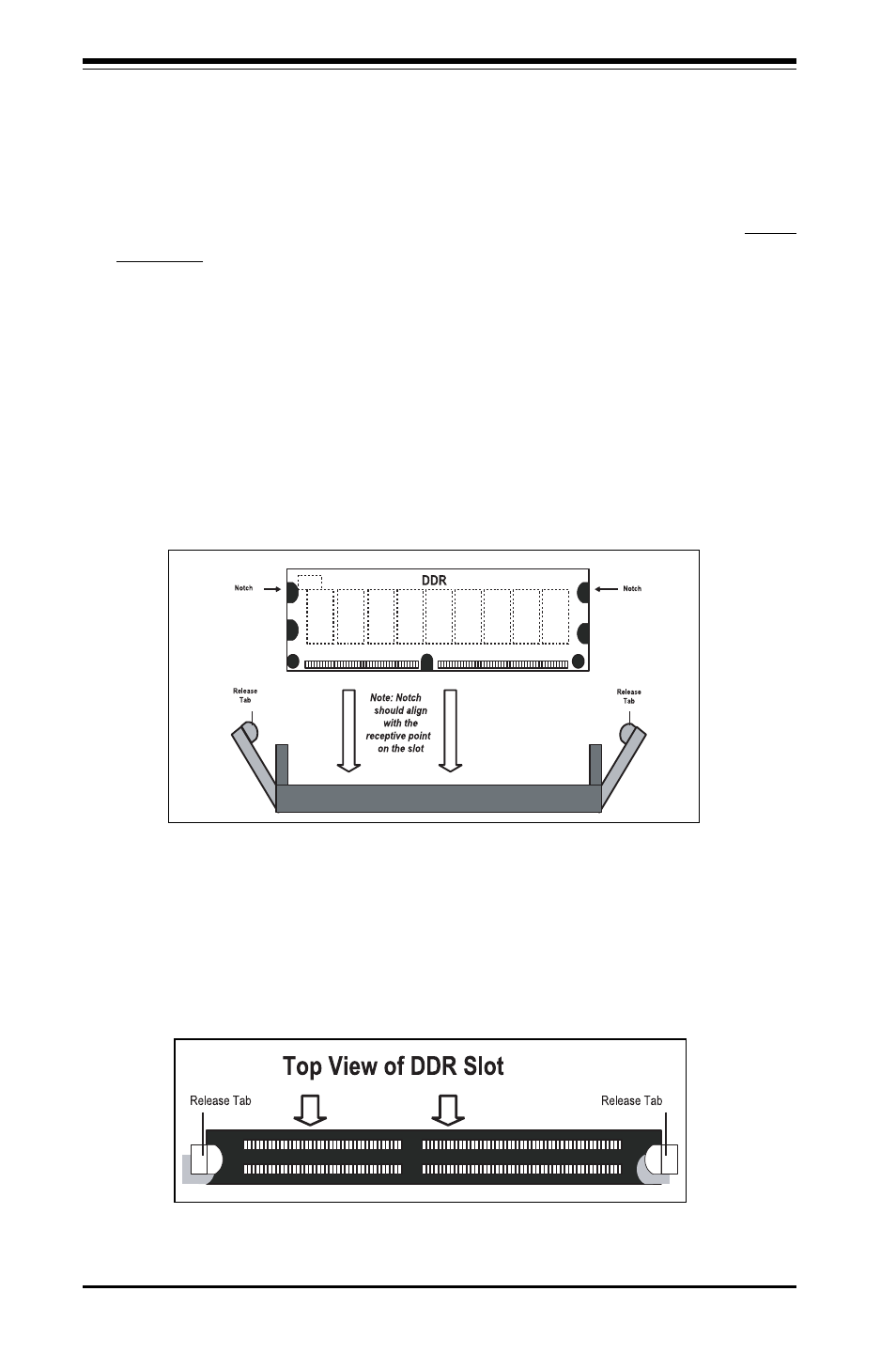

Figure 5-5b. Top View of DIMM Slot
Figure 5-5a. Side View of DIMM Installation into Slot
To Install: Insert module and press down until it snaps into place. Pay
attention to the bottom notch.
To Remove: Use your thumbs to gently push each release tab outward
to free the DIMM from the slot.
Memory Support
The P4DLR+ only supports ECC registered PC1600 (DDR-200) SDRAM
memory. An interleaved memory configuration PC2100 DDR-RAM is sup-
ported but only at 200 MHz (PC1600 speed). PC100/133 SDRAM is not
supported. It is recommended that you do not mix DIMMs of different sizes
and speeds.
See Figures 5-5a and 5-5b for installing and removing memory modules.
