MANUFACTURED UNDER LICENSE FROM DOLBY
LABORATORIES. "DOLBY", "PRO LOGIC", AND THE
DOUBLE-D SYMBOL ARE TRADEMARKS OF DLOBY
LABORATORIES.

SPEAKER IMPEDANCE

FRONT , CENTER , SURROUND A or B,

SURROUND BACK : 6 OHMS ( ) MIN.
SURROUND A and B : 12 OHMS( ) MIN.

11 7

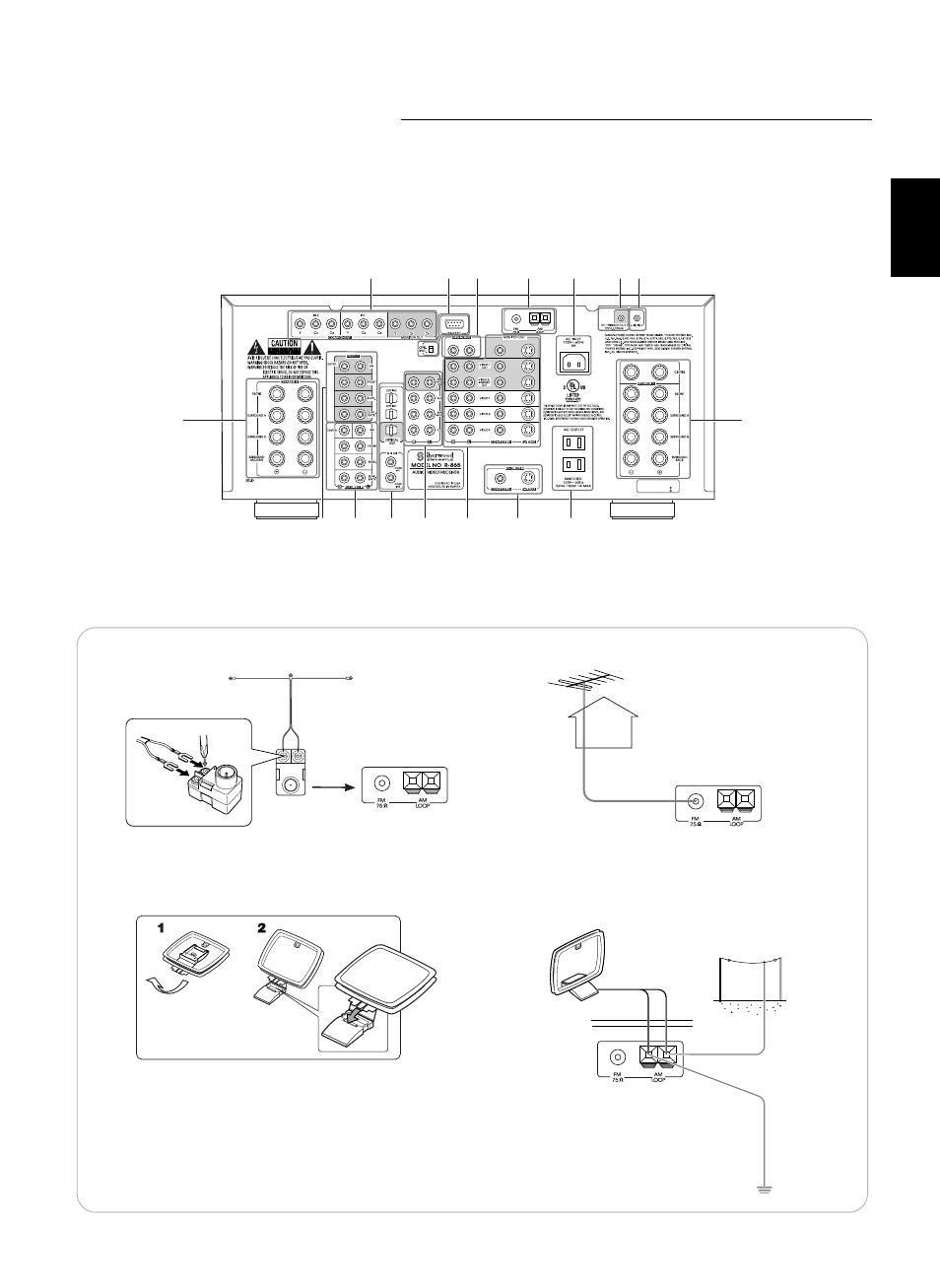

System Connections

• Pleas be certain that this unit is unplugged from the AC outlet before making any connections.
• Since different components often have different terminal names, carefully read the operating instructions of the component

connected.

• Be sure to observe the color coding when connecting audio, video and speaker cords.
• Make connections firmly and correctly. If not, it can cause loss of sound, noise or damage to the unit.

ENGLISH

1. CONNECTING ANTENNAS

FM Indoor Antenna

FM Outdoor Antenna

AM Loop Antenna

AM Outdoor Antenna

• Change the position of the FM indoor antenna until you

get the best reception of your favorite FM stations.

• Place the AM loop antenna as far as possible

from the receiver, TV set, speaker cords and
the AC input cord and set it to a direction for
the best reception.

• If the reception is poor with the AM loop anten-

na, an AM outdoor antenna can be used in
place of the AM loop antenna.

• A 75

Ω outdoor FM antenna may be used to fur-

ther improve the reception. Disconnect the indoor
antenna before replacing it with the outdoor one.
