ROOM 2 connections
• ROOM 2 playback feature allows you to play a different program source in another room as well as one source in the main
room at the same time.
• For ROOM 2 playback, connect the VIDEO 2 / ROOM 2 OUT jacks to the amplifier, TV, etc. installed in another room, or
connect the SURROUND BACK speaker terminals to the speakers.
• In case of using a pair of speakers only, you should assign the power amplifier for surround back channels to the ROOM
2.(For details, refer to “SELECTING THE POWER AMP ASSIGN” on page 49.)
Notes :
• To minimize hum or noise, use high quality connected cords.
• You cannot use the digital audio signal for ROOM 2 playback.
10. CONNECTING MULTI-ROOM SYSTEM KIT
• The multi-room system kit (sold separately ) is essential for operation from a remote location.
For information on the multi-room kit, contact the Xantech corporation at 1-800-843-5465 or www.xantech.com.
• IR IN jack allows you to control this receiver from another room with the remote control unit.
• To control this receiver from another room with the remote control unit, connect the IR IN jack to the output of the connecting
block.
• If this receiver is located inside a cabinet or other enclosure where the infrared beams from the remote control unit cannot
enter, then operation with the remote control unit will not be possible.
In such a case, connect the IR IN jack to the output of the connecting block.
12
TV or projector
IN
S-VIDEO
IN
VIDEO
(COMPOSITE)
Amplifier
Another room(Room 2) Main room
This receiver
Speakers
AUDIO
IN R
L
This receiver
Speakers
left right

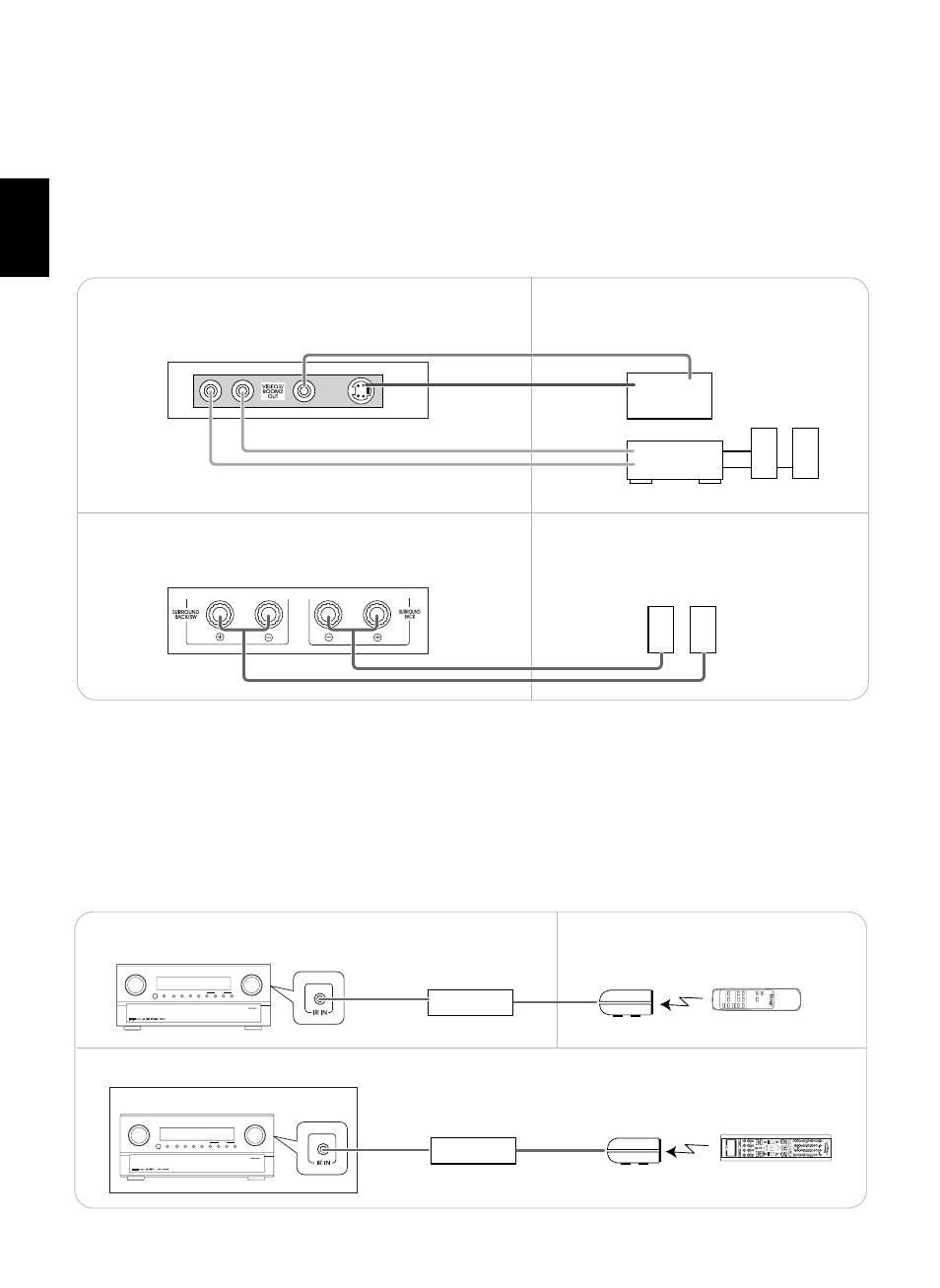

• When connecting VIDEO 2/ROOM 2 OUTs to the components.
