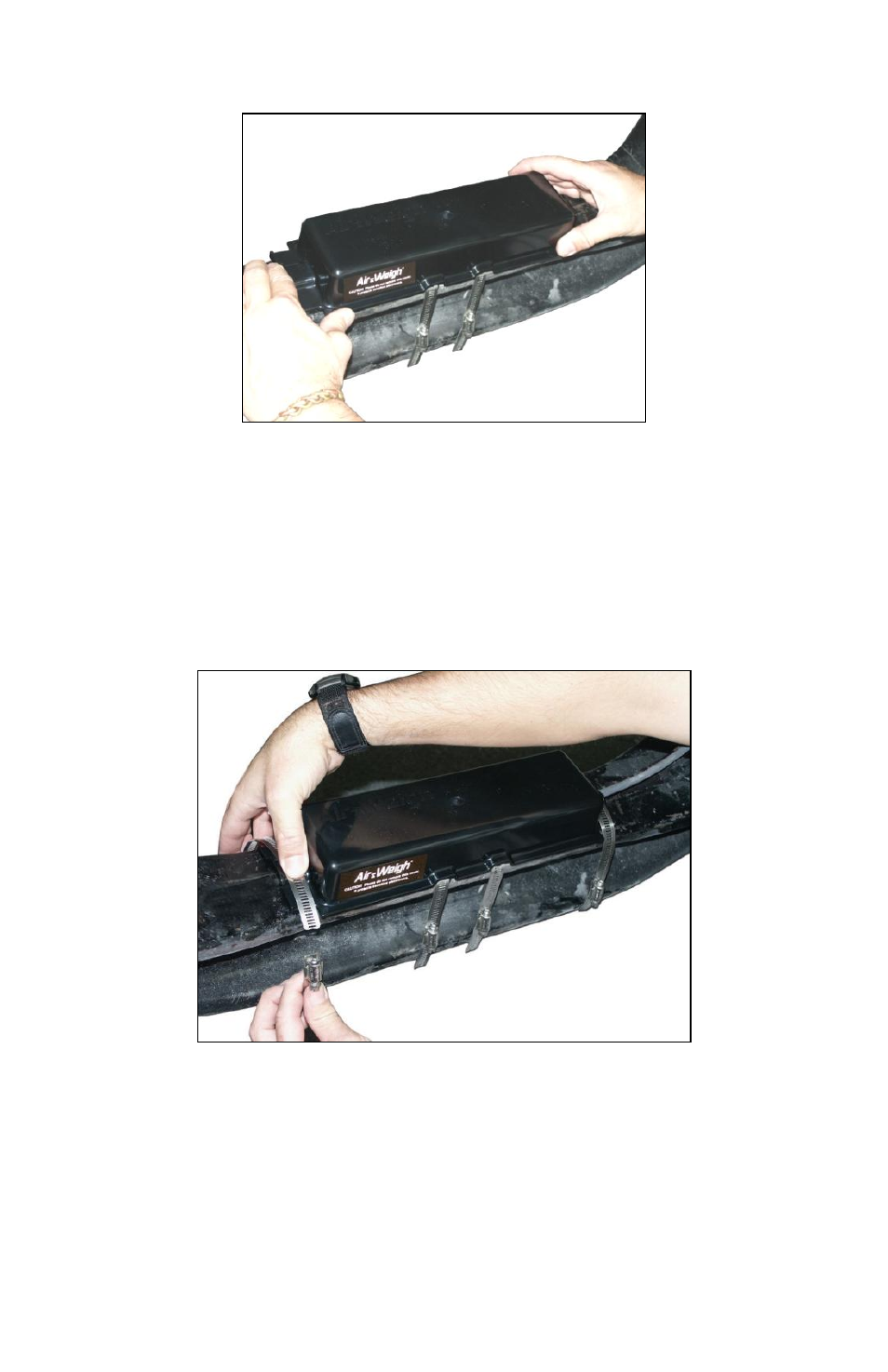

Figure 15
39. Mount the cover on top of the sensor and sensor
brackets so that the sensor cable is completely under the
cover. The bracket band clamps should emerge from the
cover’s side ports (Figure 15). The sensor extension cable
should emerge from the cover’s end port on the side that
you will be routing the cable to the firewall.
Figure 16
