SMC Networks Air Weigh AW5800 - Manual (Page 17)

17

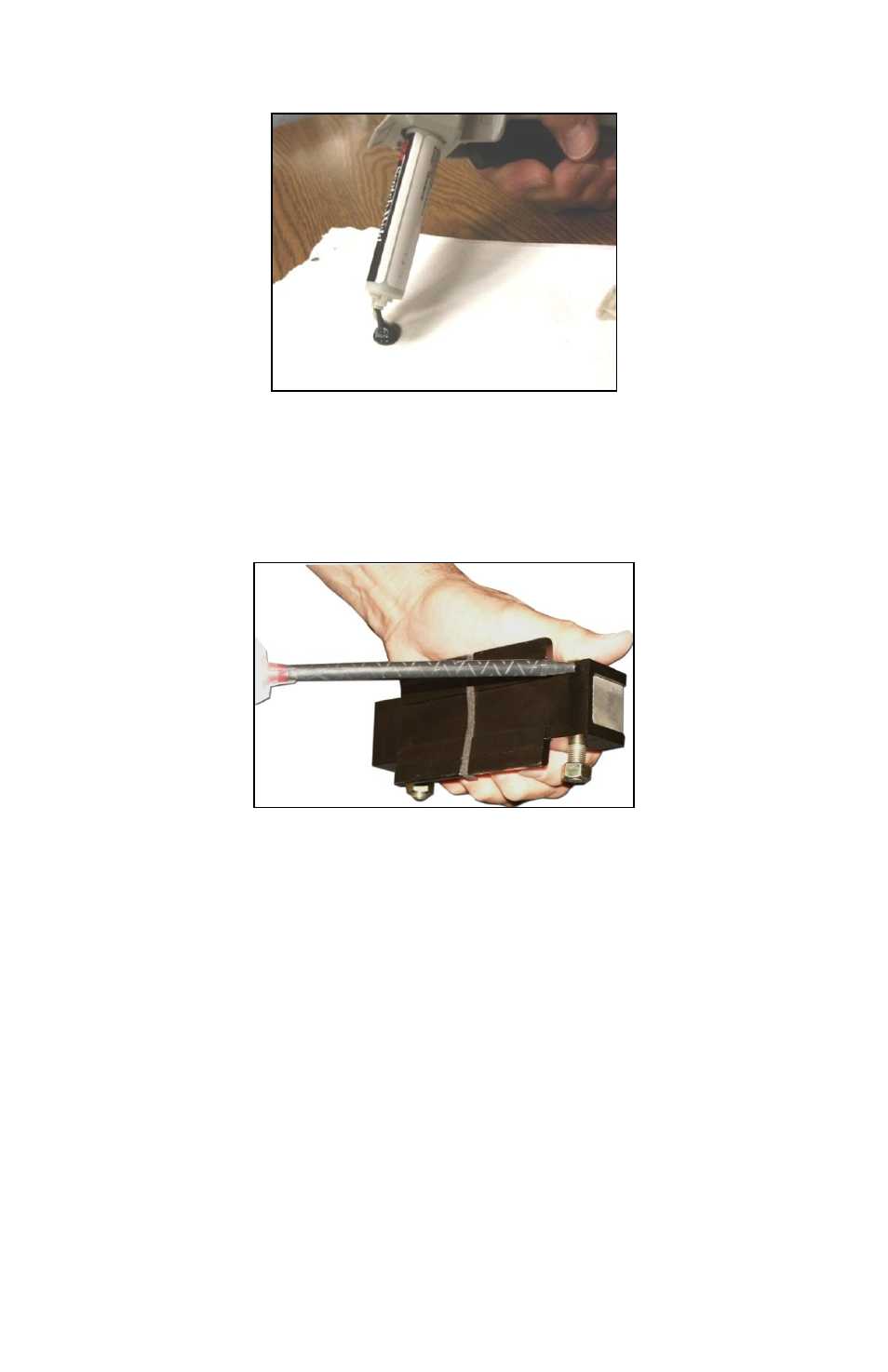

Figure 5
8. Dispense and discard a small amount of adhesive to be
sure both sides of the glue cartridge are flowing evenly and
freely. (Figure 5)
Figure 6
9. Following
the adhesive manufacturer’s instructions, apply
the adhesive liberally to the bottom of the bracket assembly
(Figure 6). Do not remove the foam strip from the
bottom of the bracket. Ensure that there is no adhesive in
the bracket channels or mounting bolt holes. Completely
remove any that may have been put there accidentally.
Remove and discard the glue cartridge when finished.
