26

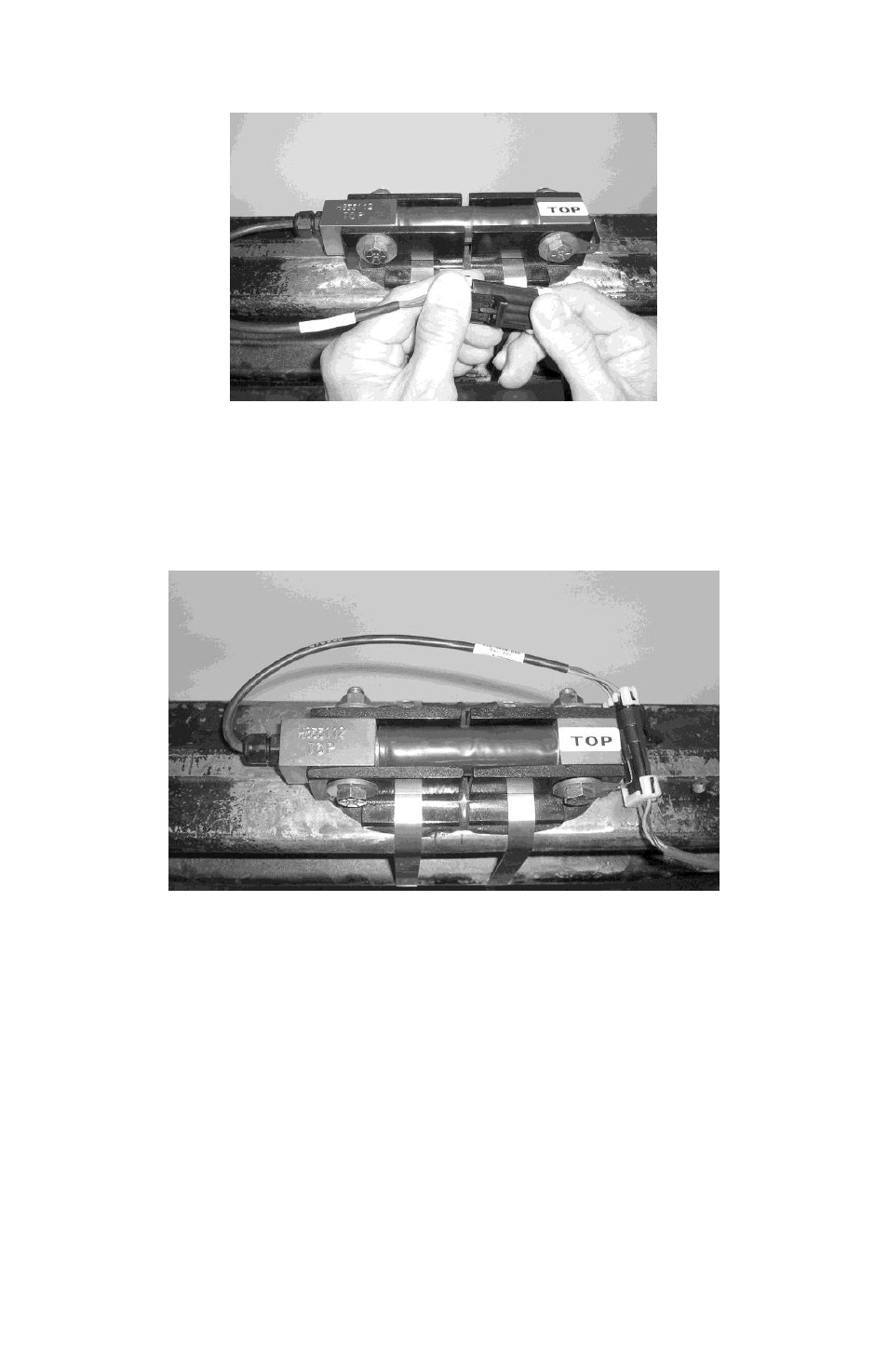

Figure 13
32. Assembling the connectors. Connect the sensor
connector to the 15' sensor extension cable (014-1500-028)
to form a connector assembly (Figure 13).
Figure 14
33. Mount the connector assembly on the connector
assembly bracket tab by inserting the tab in the grooves on
the sensor extension cable connector. The connector
grooves are on the side opposite the installed connector
position assurance tab (Figure 14).
