I
NSTALLING AN
O
PTIONAL
M
ODULE INTO THE
S
WITCH
3-7
Installing an Optional Module into the Switch

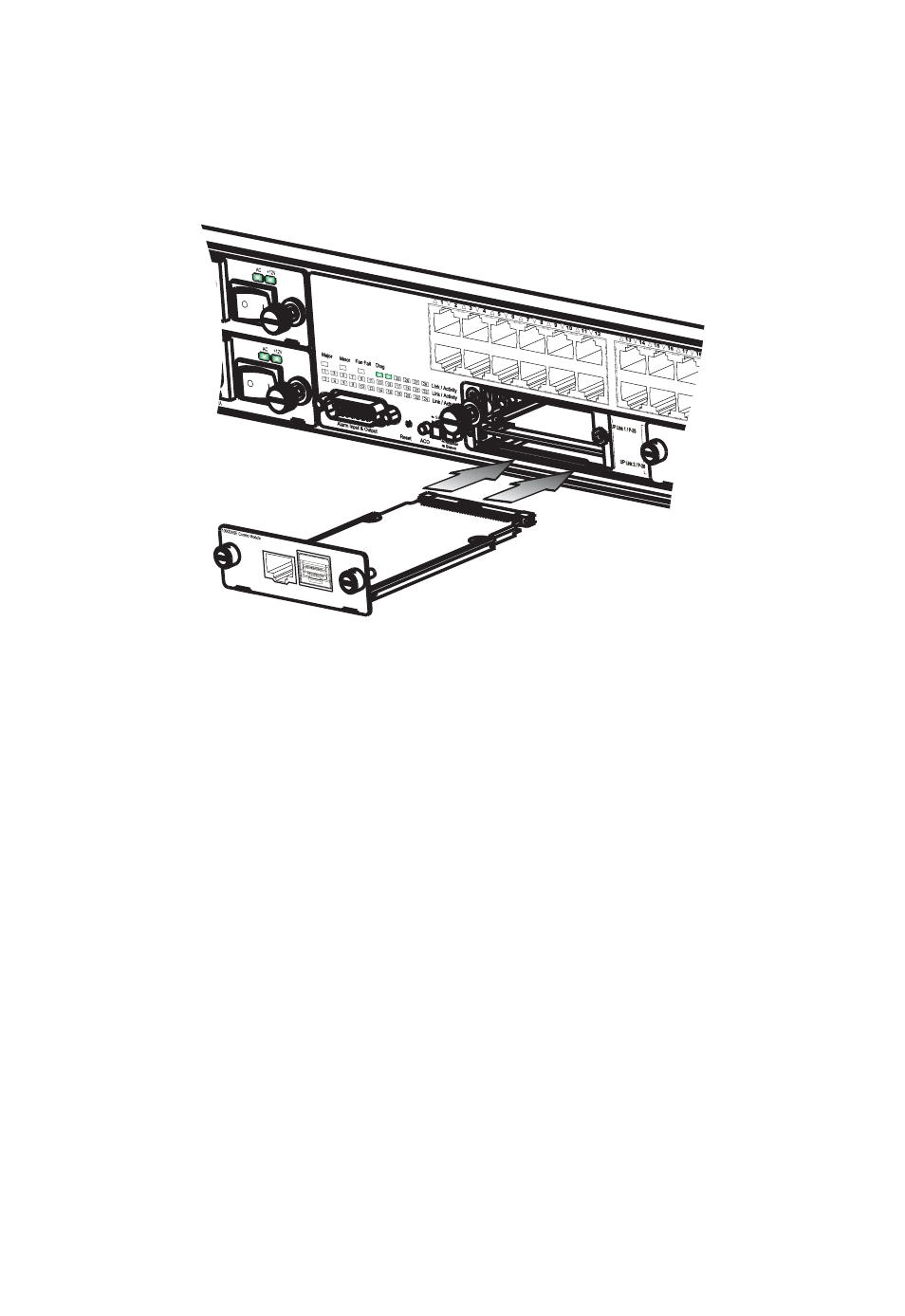

Figure 3-5 Installing an Optional Module
Note: The slide-in modules are hot-swappable, you do not need to power
off the switch before installing or removing a module.
To install an optional module into the switch, do the following:
1. Remove the blank metal plate (or a previously installed module) from
the appropriate slot by removing the two screws with a flat-head
screwdriver.
2. Before opening the package that contains the module, touch the bag to
the switch casing to discharge any potential static electricity. Also, it is
recommended to use an ESD wrist strap during installation.
3. Remove the module from the anti-static shielded bag.
4. Holding the module level, guide it into the carrier rails on each side
and gently push it all the way into the slot, ensuring that it firmly
engages with the connector.
