Wiring map for alarm cable, Wiring map for alarm cable -16, Table 3-2 alarm cable wiring -16 – SMC Networks SMC TigerAccess SMC7824M/ESW User Manual

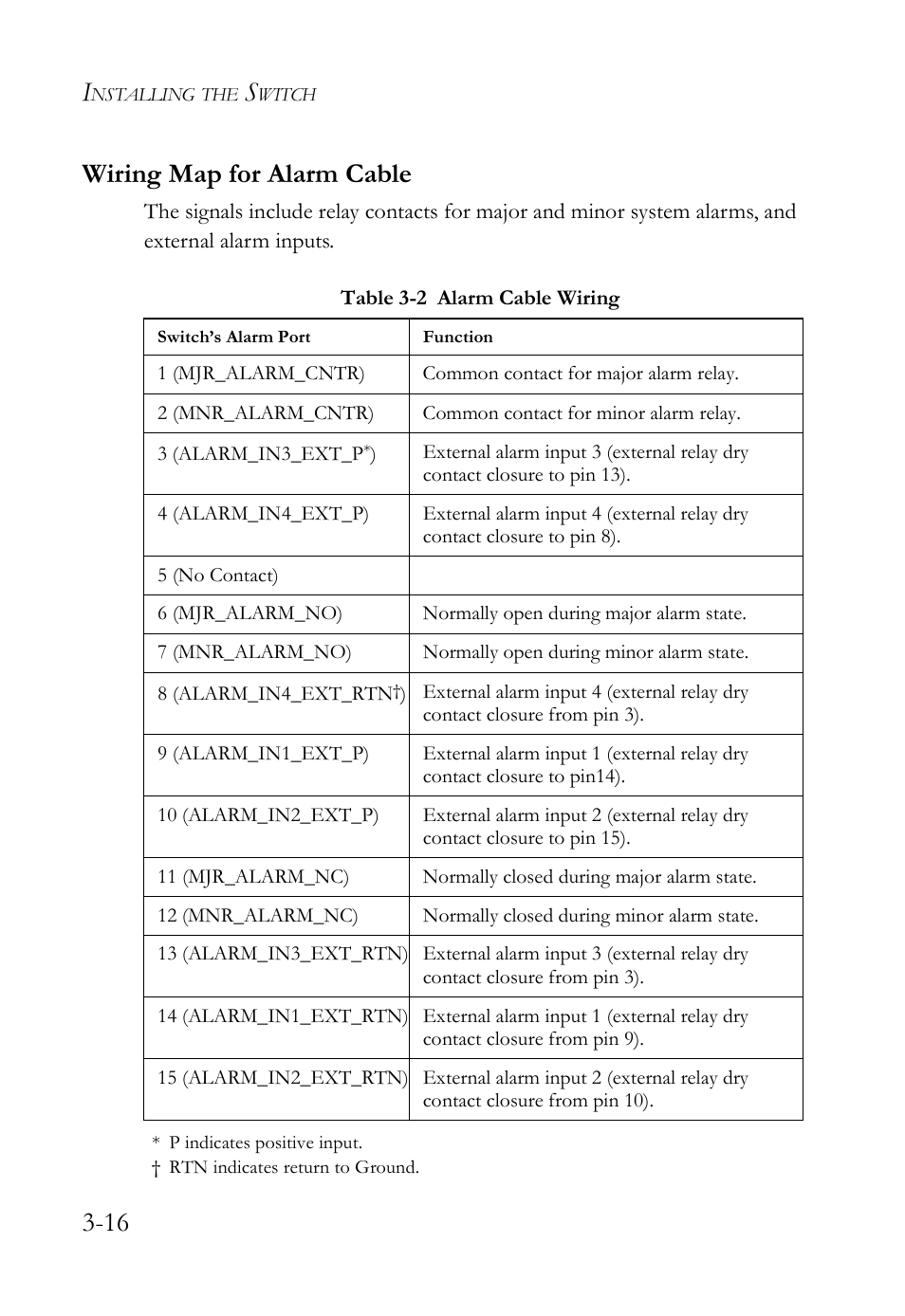

Page 54: 16 wiring map for alarm cable
