Connections
-31

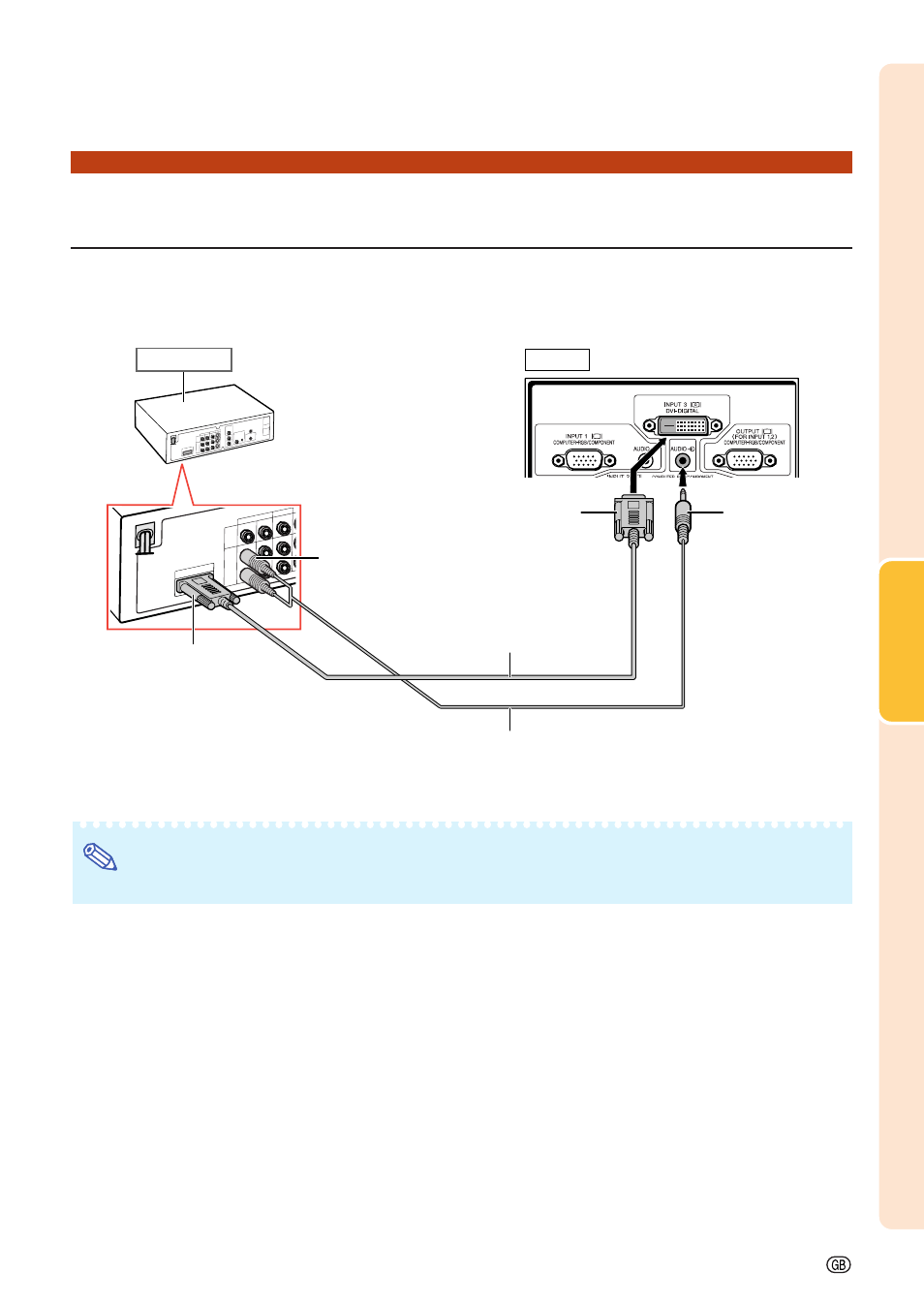

Connecting to Video Equipment That Has a DVI Output
Terminal with a DVI Digital Cable
Use a DVI Digital cable when connecting video equipment with the DVI output terminal such
as DVD players to the INPUT 3 terminal.
Note
• Select the input signal type of the video equipment. See page
To INPUT 3 terminal
DVI Digital cable
(commercially available)
To audio output
terminals
To AUDIO input
(2, 3) terminal
ø3.5 mm stereo minijack to RCA audio cable
(commercially available)
To DVI output terminal
Video Equipment
Side view
