3-6

3. Disassembly and Reassembly

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -

NC10

Part


Description

LCD

Ass'y

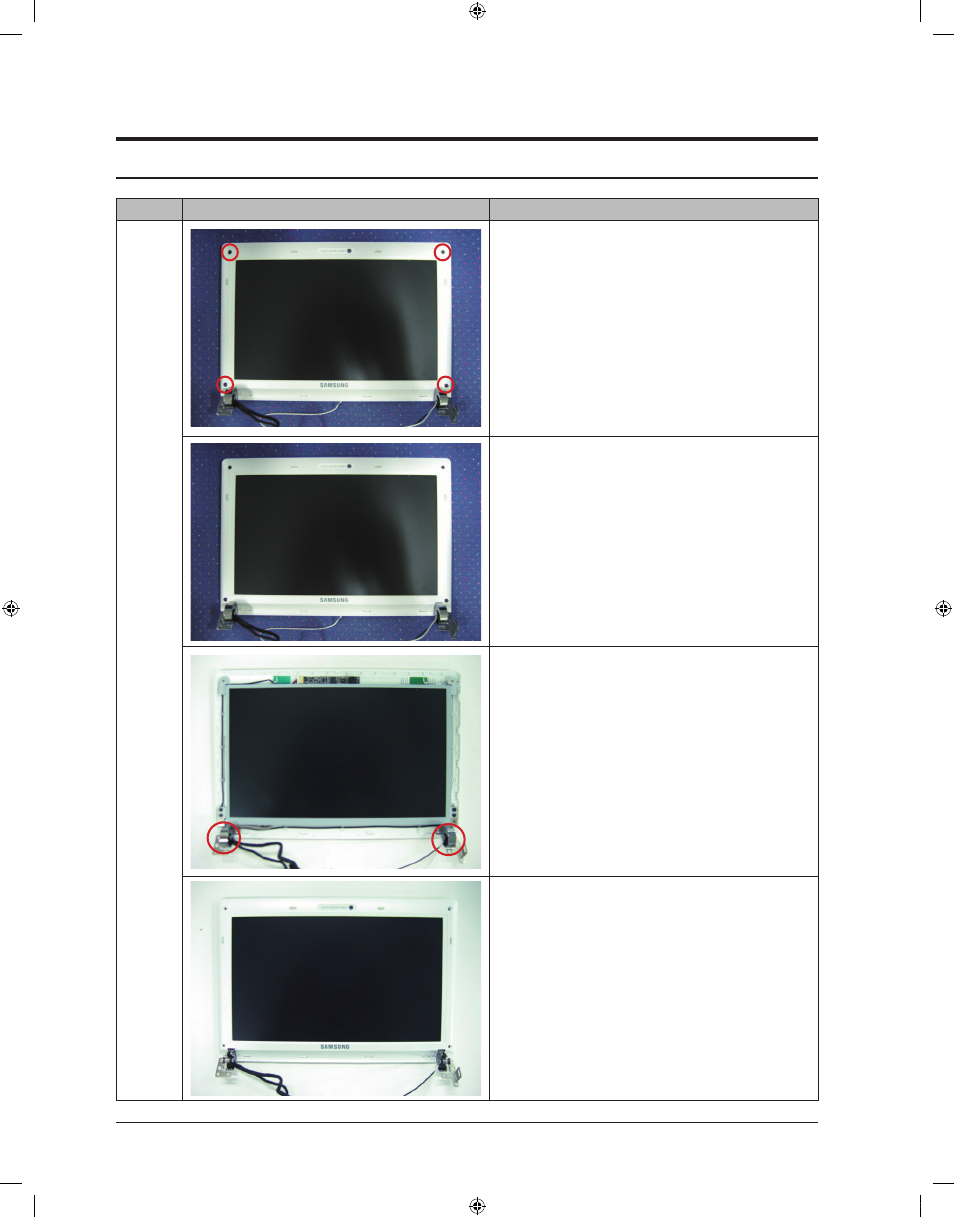

21. Remove the RHE as shown in the picture.

M2 X L4 (4EA)

[Notice]
When you remove the Rubber-LCD-Cap, be careful not to

scratch the Front..

22. Insert your hand into the gap of the LCD Back and the

LCD front and then separate first, the upper part of the

LCD Front and second, the both sides of the LCD Front

then finally the bottom part of it.

M2 X L4 (4EA)

23. Remove the both sides of Hinge Cover.

24. Conditions after removing the both sides of Hinge Cover.
