3. Disassembly and Reassembly

- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -

NC10

Part


Description

TOP

Ass'y

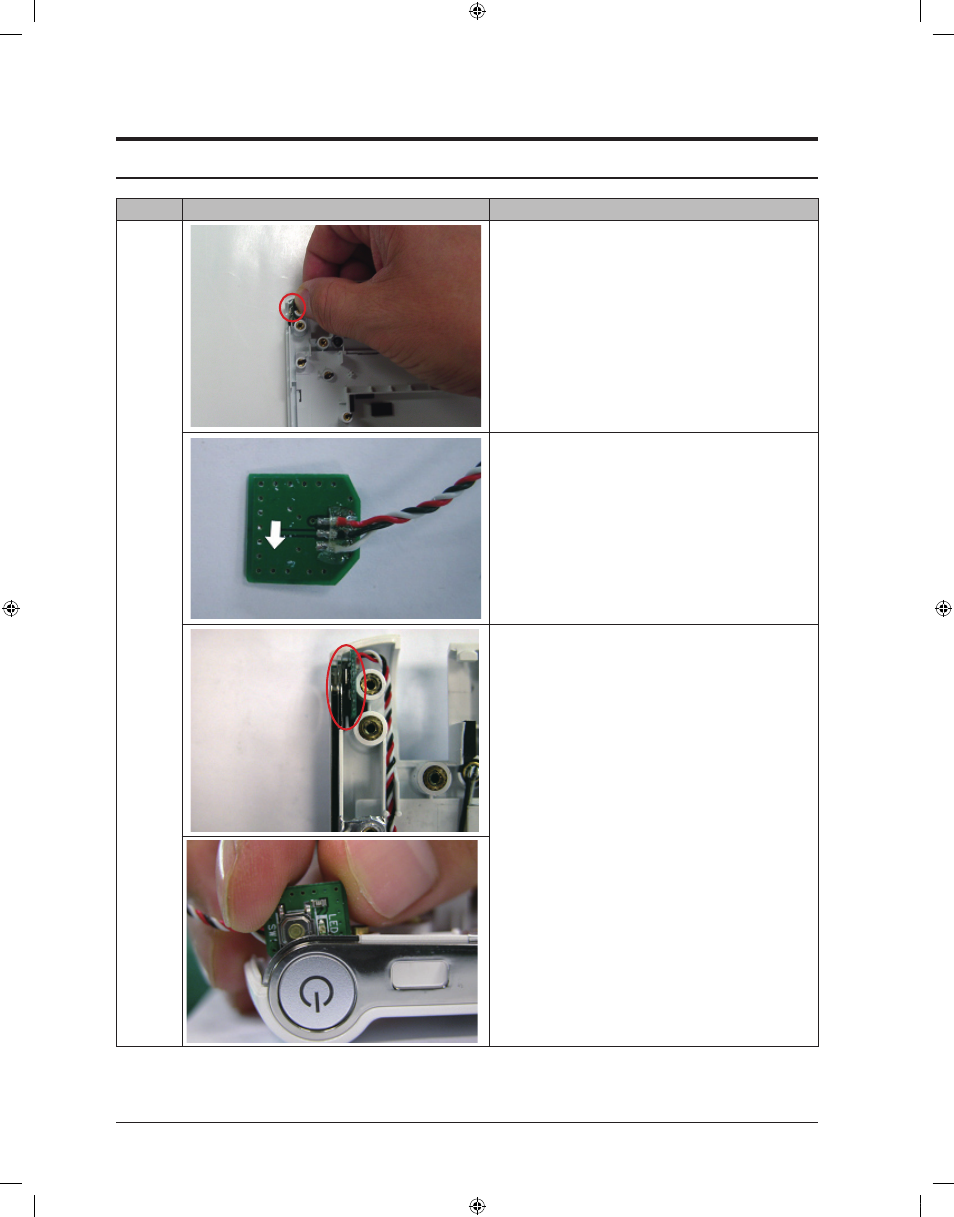

35. Remove the Power S/W Ass’y.

36. Confirm the arrow mark for assembly direction on the

Power S/W Sub board.

37. Check the Guide in which the Power S/W at bottom will

be inserted, then you have to assemble the Power S/W.
