702 x2, 705 x2 – Smooth Fitness USER WEIGHT LIMITATION CE7.4 User Manual
Page 19
www.smoothfitness.com
19
ASSEMBLY

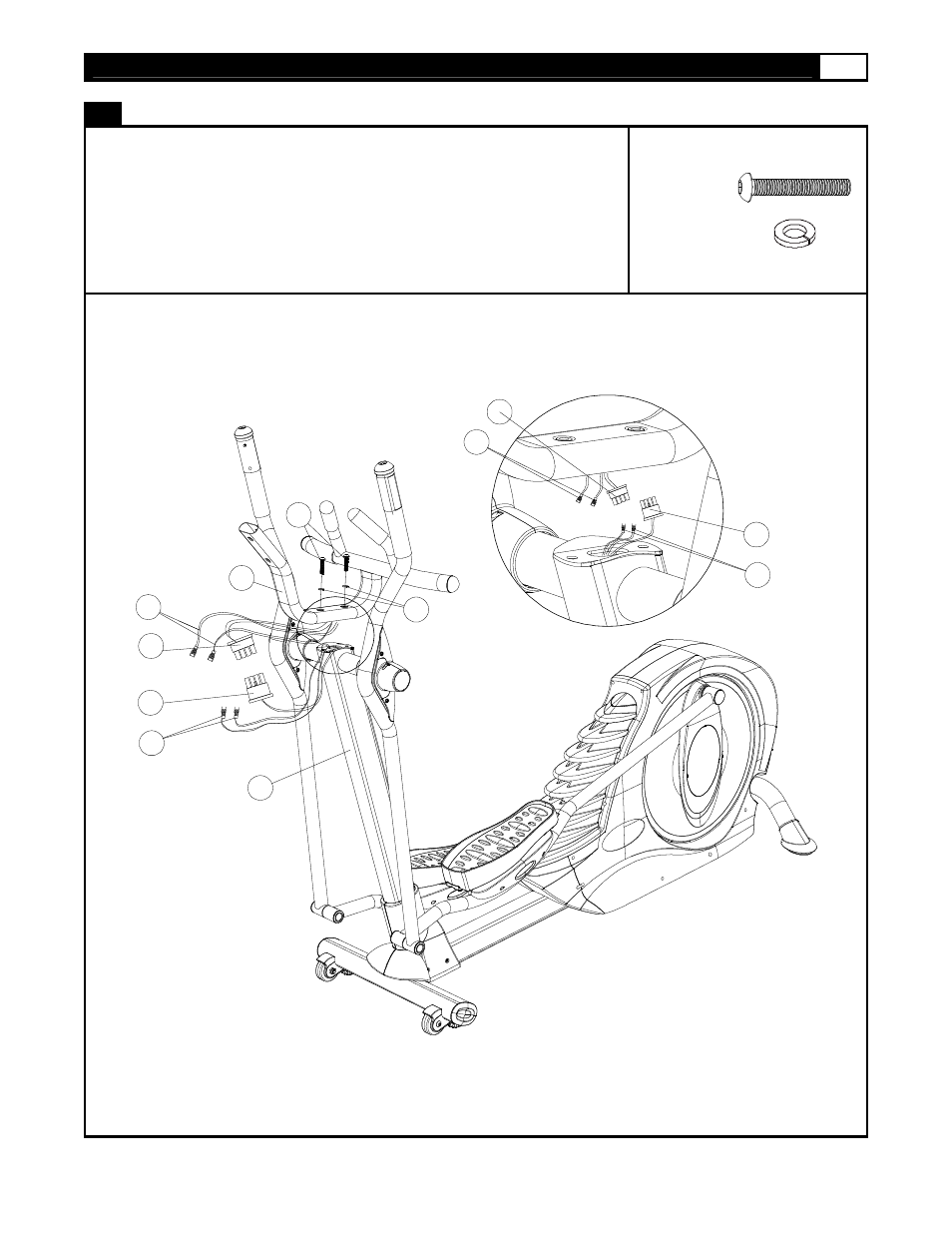

STEP 5: Assemble the Console Support Tube
(A) Connect the 8pin Computer Wire – Upper (830) to the 8pin Computer Wire –
Middle (831) and connect the Handle Pulse Sensor Wire – Upper (813) to
the Handle Pulse Sensor Wire – Lowe (814)
(B) Attach the Console Support Tube to the Upright (107) and secure using two
M8x40mm Allen Head Bolts (702) with 8x14x2mm Spring Washer (705).
702 X2
705 X2
705
702
101
107
813
831
814
830
813
830
831
814
