Assembly – Smooth Fitness USER WEIGHT LIMITATION CE7.4 User Manual
Page 15
www.smoothfitness.com
15
ASSEMBLY

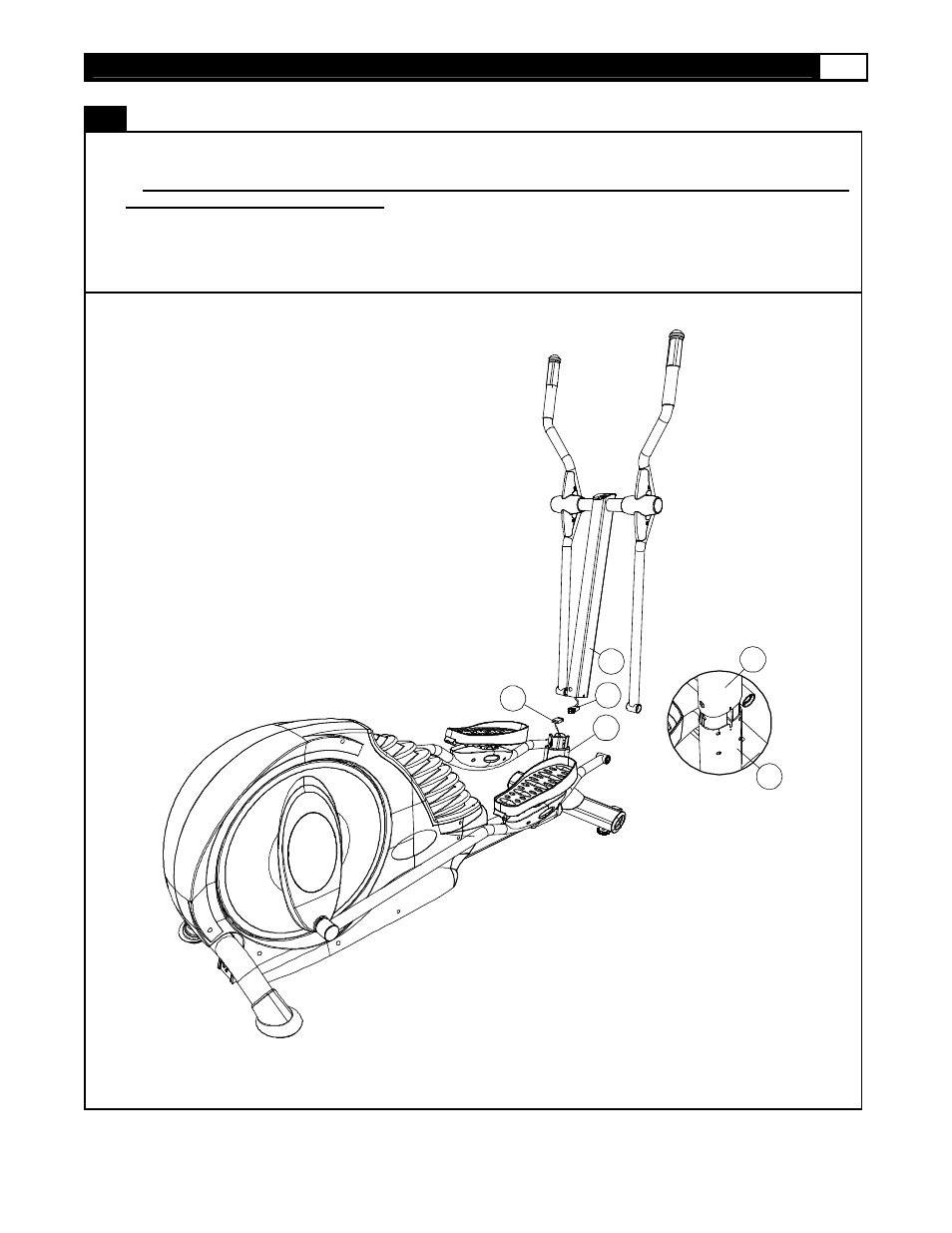

STEP 1: Attach the Upright Assembly
NOTE: BE SURE THAT THE WIRES DO NOT TIGHTEN THE UPRIGHT FIXING BOLT YET WHEN ASSEMBLING
THE UPRIGHT TO THE MAIN FRAME.
(A) Connect the 8pin Computer Wire – Middle (831) and 8pin Computer Wire – Lower (832)
(B) Slide the Upright(107) into the Main Frame(102)
1 07
1 02
1 07
1 0 2
831
83 2
