SMOOTH CE7.4 ELLIPTICAL TRAINER
ASSEMBLY

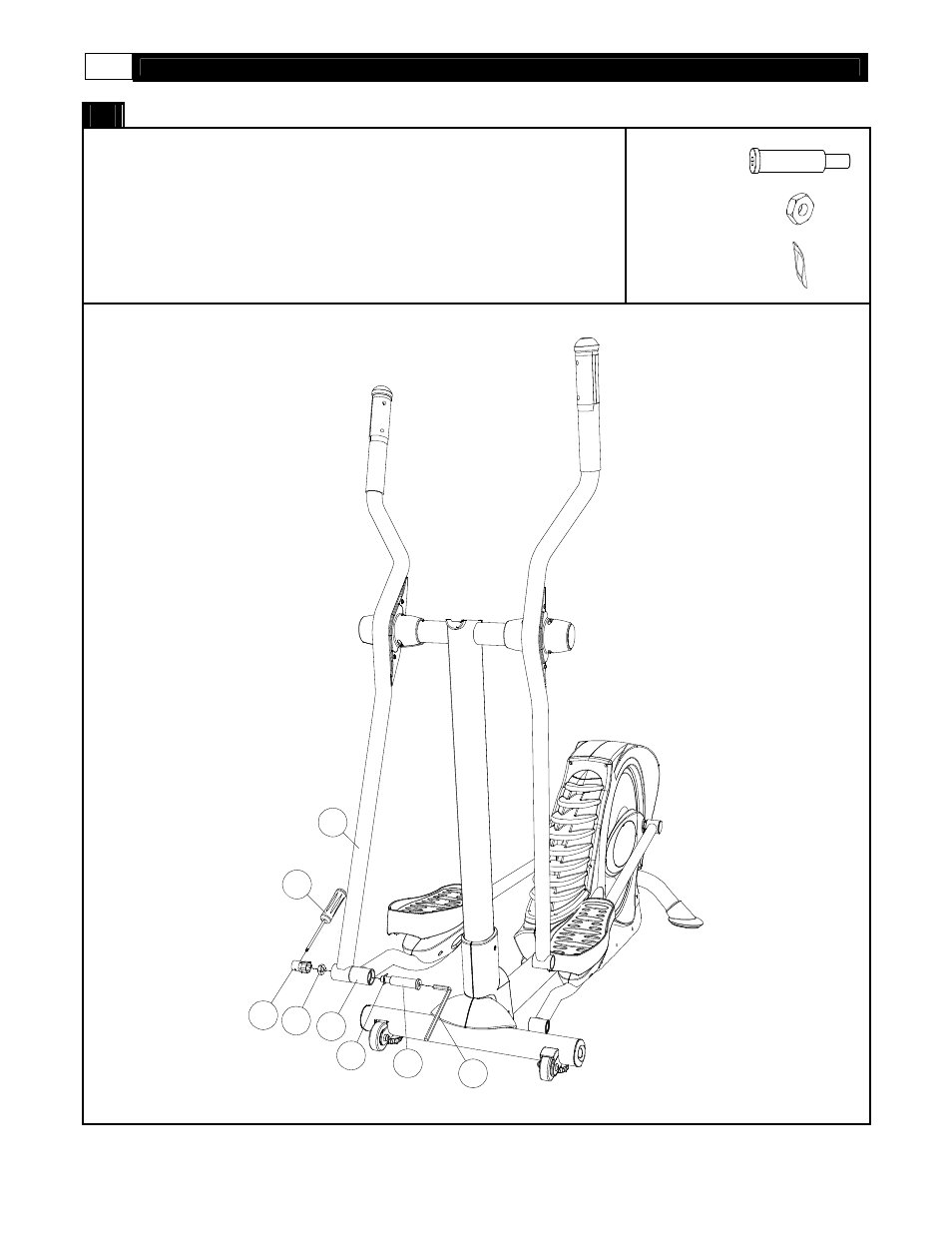

STEP 2: Assemble the Pedal Arm – Right
(A) Slide the 20x91--M14x25mm Bolt (703) with 20.7x29.1x0.3mm Wave Washer
(706) through the Pedal Arm – Right(104) and Action Handlebar – Right (106)
then secure using one M14 Nut (704).
703
X1
704
X1
706
X1
C
E
D
703
104
704
106
706
