First Steps
Gigaset SX541 WLAN dsl / englisch / A31008-M1025-L101-1-7619 / device.fm / 21.07.2005
Sc
hablone 2005_05_02
Operating Displays and Connections

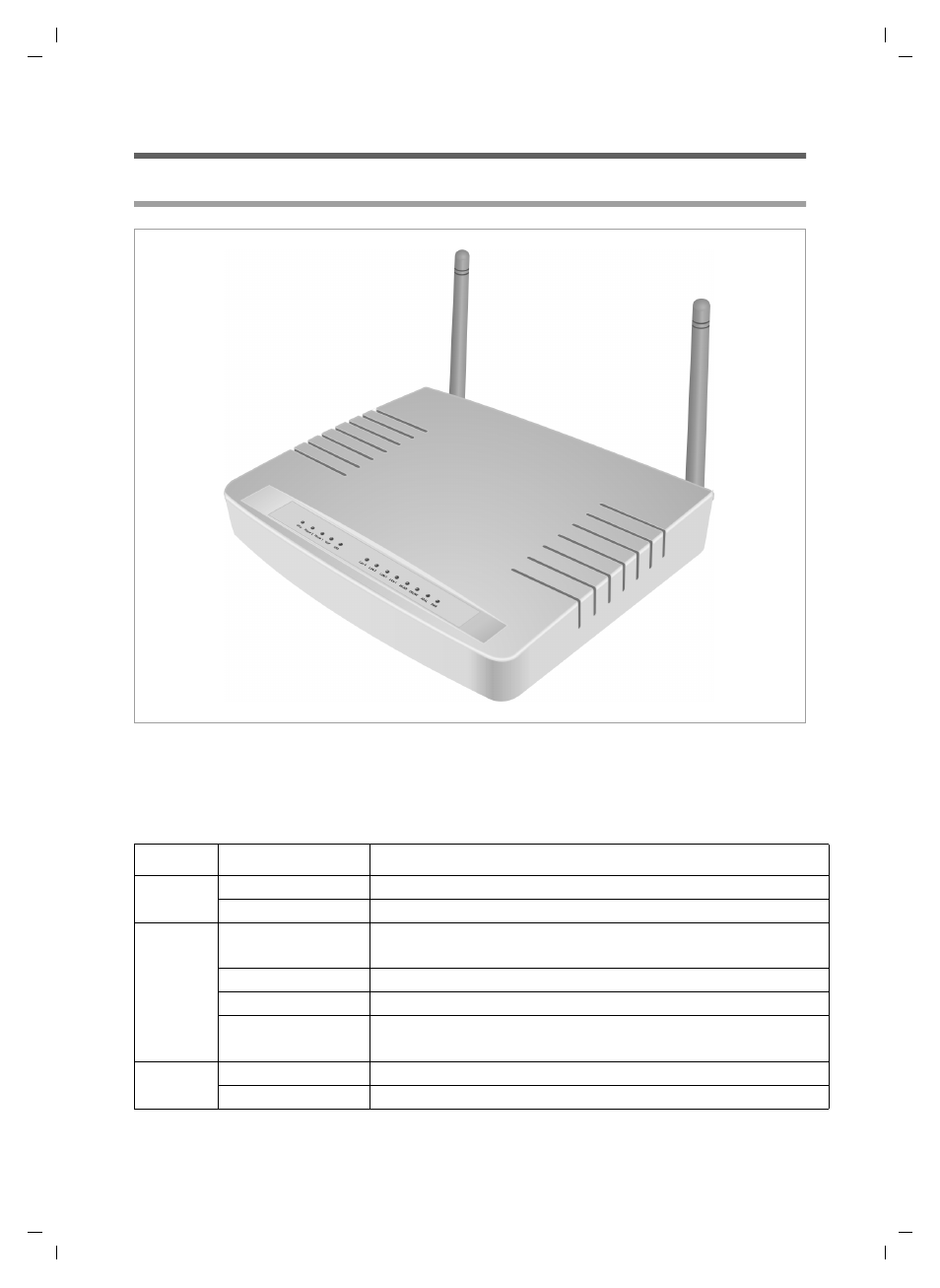

Front Panel
LED displays
The front panel of the device contains LED displays that show the operating state and
simplify installation and fault finding in the network.
The LEDs show the following (from right to left):
LED State Status
PWR
On The Gigaset SX541 WLAN dsl is powered on.
Off The Gigaset SX541 WLAN dsl is powered off.
ADSL
On The DSL line is connected and the ADSL port is opera-
tional.
Flashing slowly The DSL line is being synchronised.
Flashing quickly The DSL line synchronisation is in its last phase.
Off The DSL line is not connected or the interface is not syn-
chronised.
Online
On Connection to the Internet has been established.
Off There is no Internet connection.
