Punch
57
2
Note
❒ When using Punch and Combine, Double Copies, or Auto Reduce/Enlarge,
the message "Blank part will appear. Check orientation." may appear because
of the orientation of the original and the copy paper. If this occurs, change the
orientation of the copy paper.
❒ The relationship between the direction in which you set the original and the
punch hole positions is as follows:
❖ ❖ ❖ ❖ Punch hole positions

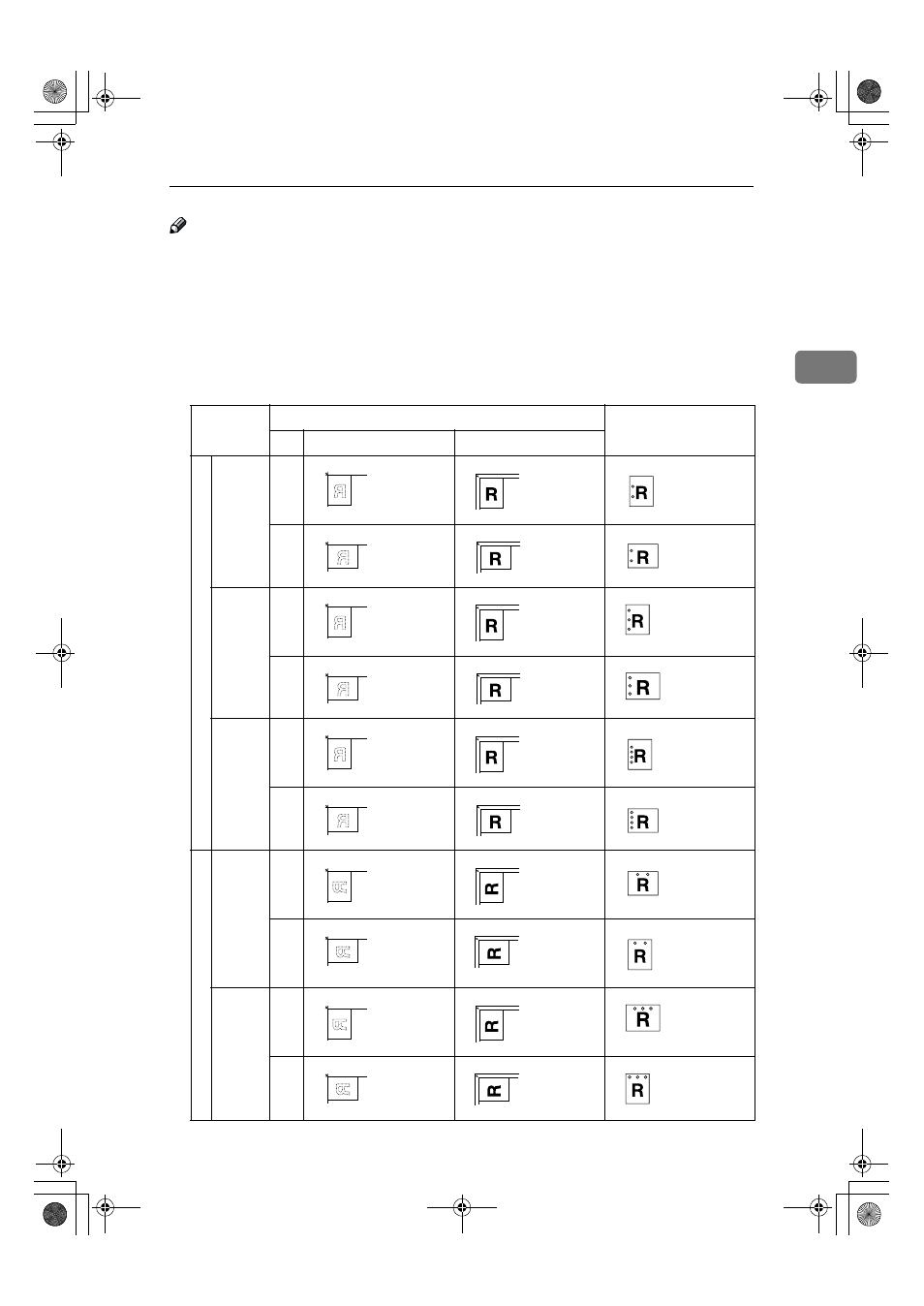

Direction in which Original is Set Punch Hole Positions
Exposure glass Document feeder
Sta
n
d
ar
d
2 holes K
L
3 holes K
L
4 holes K
L
90
º Tu
rn
2 holes
K
L
3 holes K
L
