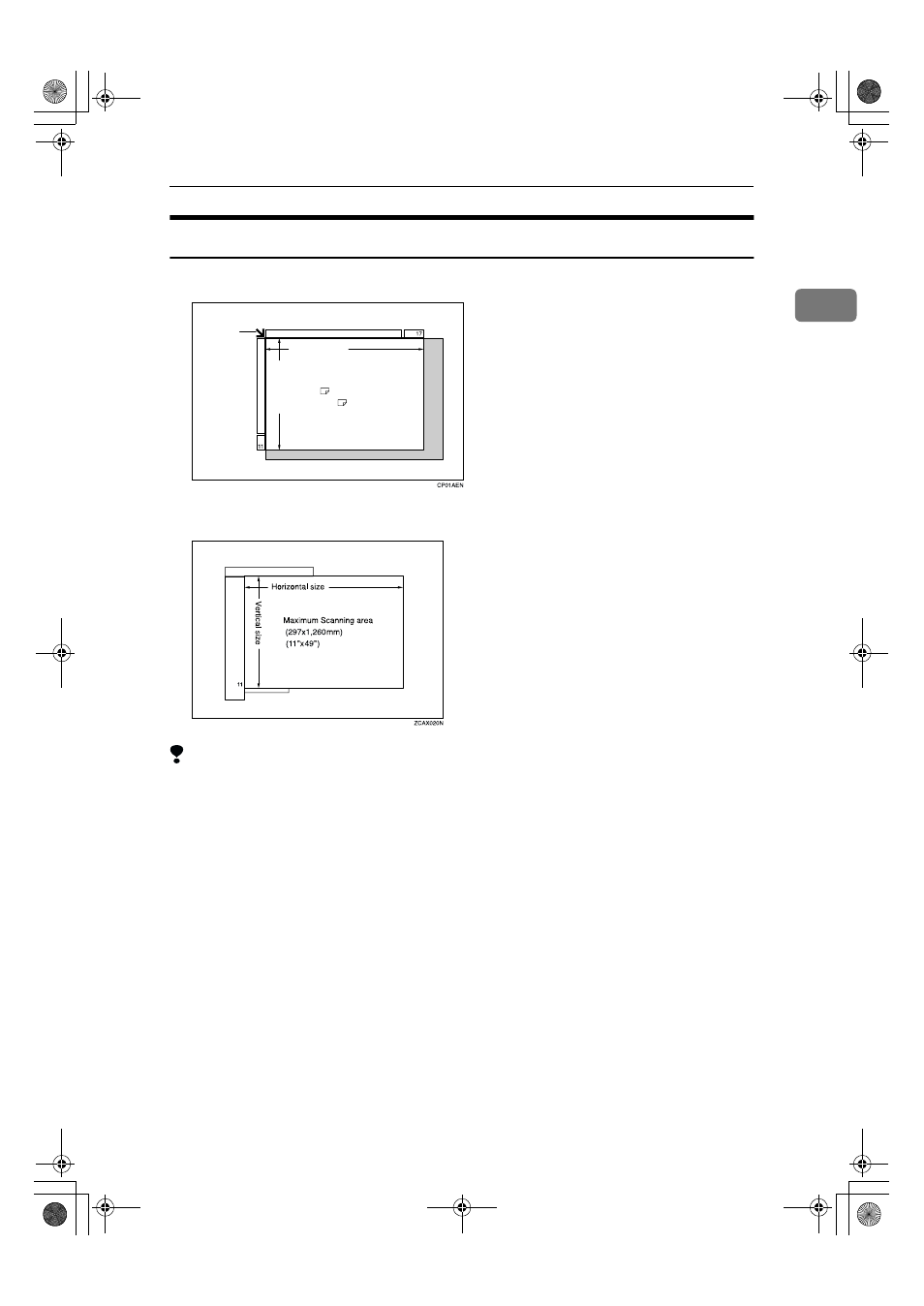

Missing Image Area
❖ ❖ ❖ ❖ Exposure glass
❖ ❖ ❖ ❖ Document feeder
Limitation
❒ Even if you correctly set originals in the document feeder or on the exposure
glass, 3mm (0.1") margins on all four sides of the original might not be copied.
❒ There are cases where the paper will be fed diagonally when a paper size of
433mm or larger is used. Ensure that the paper is set in place it is fed straight.
❒ The system length setting is at its maximum value when set at 1260mm (49").
Horizontal size
Vertical size
Reference
position
Maximum Scanning area
A3 (297x420mm)
11"x17" (279x432mm)
