5

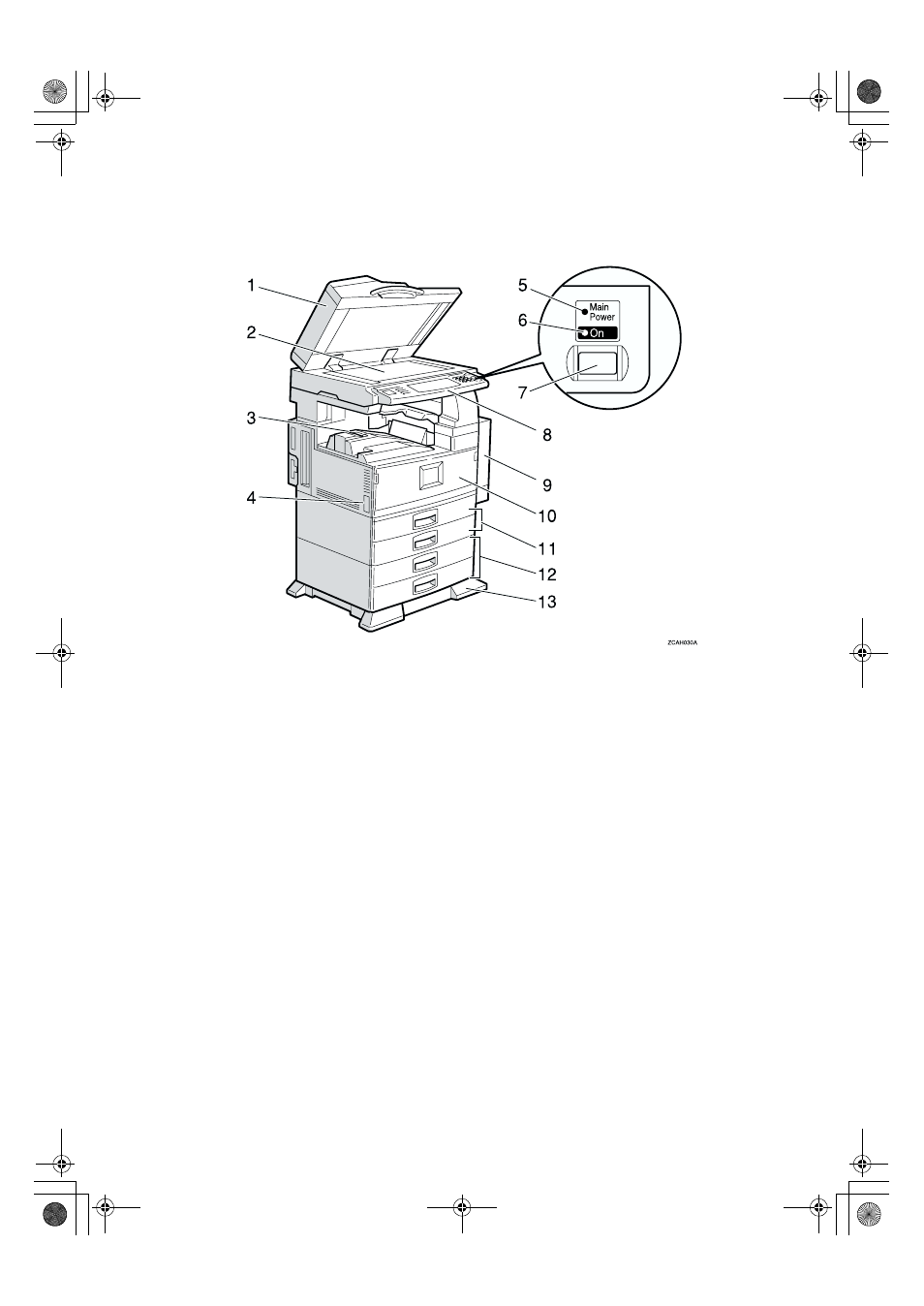

Guide To Components
1. Document Feeder (ADF)
The document feeder automatically feeds
a stack of originals one by one.
2. Exposure glass
Place originals here face down for copy-
ing.
⇒ P.19 “Originals”
3. Internal tray
Copied paper is delivered here face
down.
4. Main power switch
If the machine does not operate after
turning on the main power switch, check
if the main power switch is turned on. If
it is off, turn it on.
5. Main power indicator
This indicator light up when the main
power switch is turned on, and goes off
when the switch is turned off.
6. On indicator
This indicator lights up when the opera-
tion switch is turned on, and goes off
when the switch is turned off.
7. Operation switch
Press this switch to turn the power on
(the On indicator light up). To turn the
power off, press this switch again (the On
indicator goes off).
8. Control panel
⇒ P.9 “Control Panel”
9. Duplex unit (Unit for two-sided
copies)
Makes two-sided copies.
10. Front cover
Open to access the inside of the machine.
11. Paper tray
Set paper here.
12. Paper tray unit (Option)
13. Holding stand
