Setting Originals
31
2

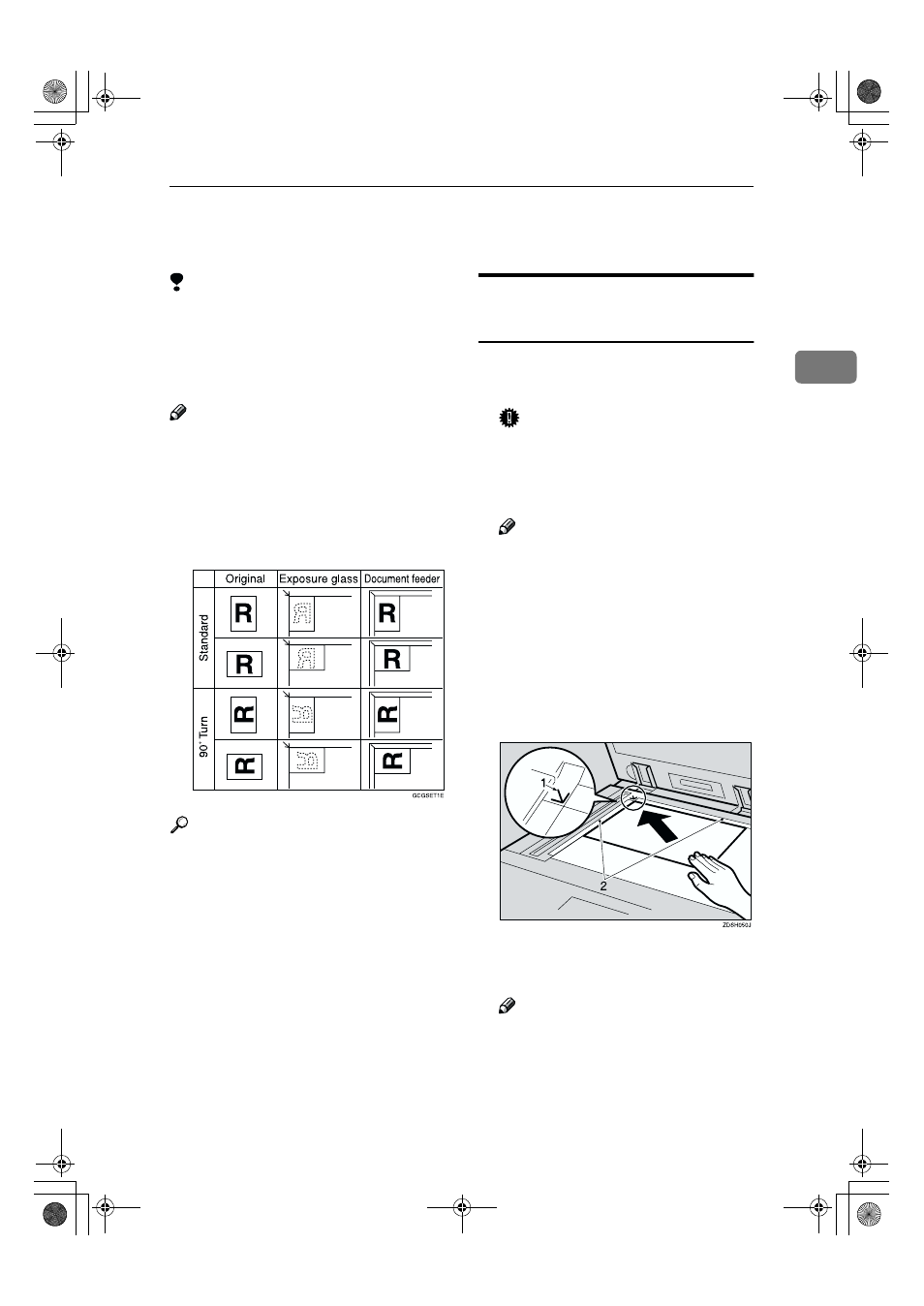

Setting Originals
Limitation
❒ Set originals after correction fluid
and ink has completely dried. Not
taking this precaution could mark
the exposure glass and cause
marks to be copied.
Note
❒ Basically originals should be
aligned to the rear left corner.
However, some copy functions
may produce different results de-
pending on the direction of the
originals. For details, see the expla-
nations of each function.
Reference
⇒ P.19 “Originals”.
Setting Originals on the
Exposure Glass
A
Lift the platen cover or the docu-
ment feeder.
Important
❒ Do not open the document feed-
er with a force. Otherwise, the
cover of the document feeder
might open or be damaged.
Note
❒ Be sure to open the document
feeder by more than 30
°. Other-
wise the original size might not
be detected correctly.
B
Set the original face down on the
exposure glass. The original
should be aligned to the rear left
corner.
1: Reference mark
2: Scale
Note
❒ Start with the first page to be
copied.
C
Lower the platen cover or docu-
ment feeder.
