Display Panel
The display panel shows the status of the machine, error messages and function
menus.
Important
❒ Do not apply a strong shock or force of about 30 N (about 3 kgf) or more to
the display panel. If you do, the display might be damaged.
Note
❒ The function items displayed serve as selector keys. You can select or specify
an item by lightly pressing it.
❒ When you select or specify an item on the display panel, it is highlighted like
.
❒ Keys appearing as
cannot be used.
Displays and Key Operations
Note
❒ The following illustrations are examples for the machine with the optional 2
Tray finisher and large capacity tray (LCT) installed.

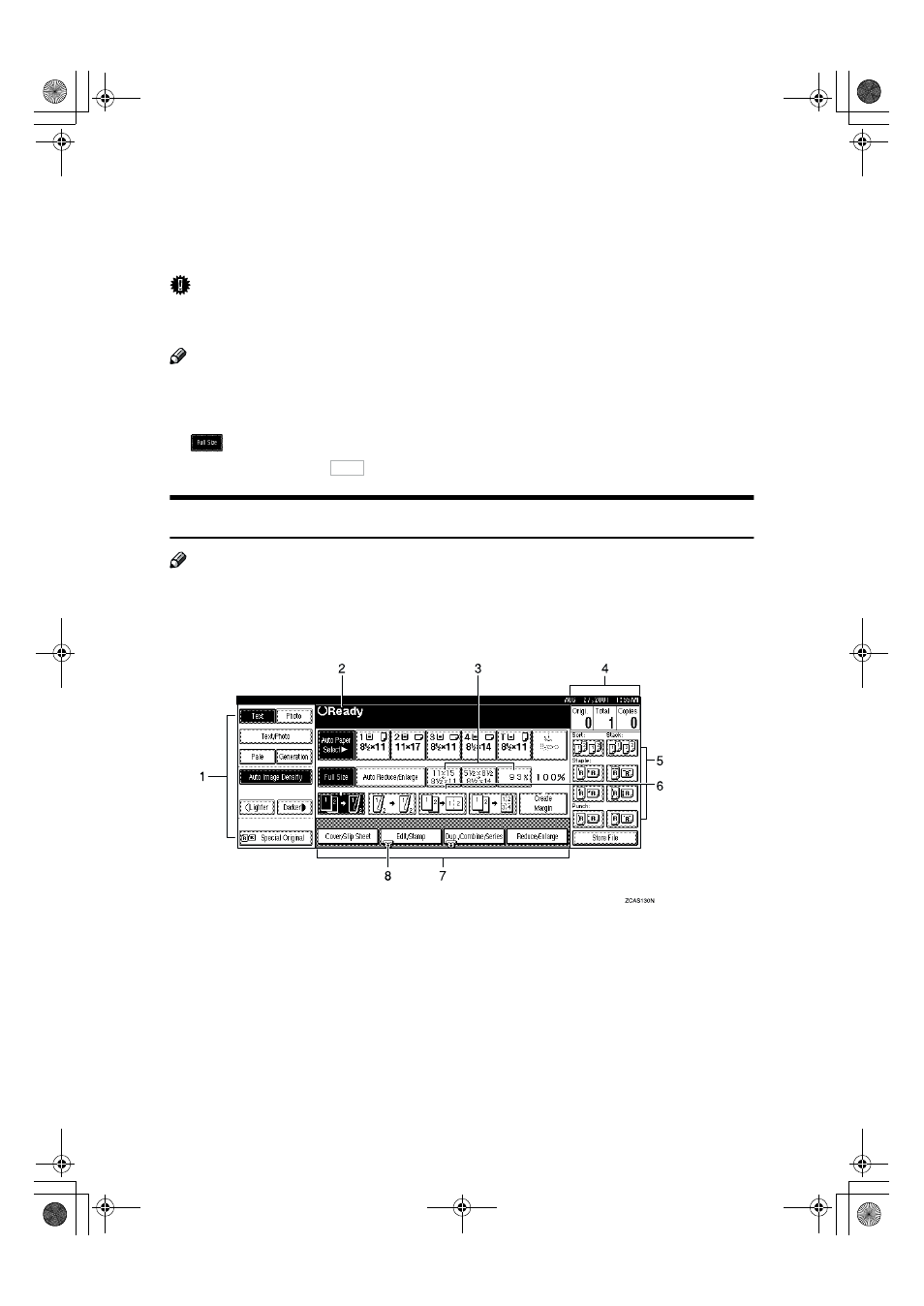

❖ ❖ ❖ ❖ Initial copy display
1. Original mode, Image Density
and Special Original mode.
2. Operational status or messages.
3. You can register up to three fre-
quently used reduce/enlarge ratios
other than the fixed reduce/enlarge
ratios.
⇒ ⇒ ⇒ ⇒ “Shortcut R/E” in P.219
“Reproduction Ratio 1 /
2
”.
4. The number of originals scanned
into memory, number of copies set,
and number of copies made.
5. Sort, Stack, Staple or Punch
mode.
OK
