25 ap45 w, Iring diagram, Solenoids with negative common – Simrad ROBERTSON AP45 User Manual

Page 74: 015936h)5-24

background image

Page 5-24

Robertson AP45 Autopilot

Installation

Simrad Robertson AS

Egersund - Norway

Fig. 5-25

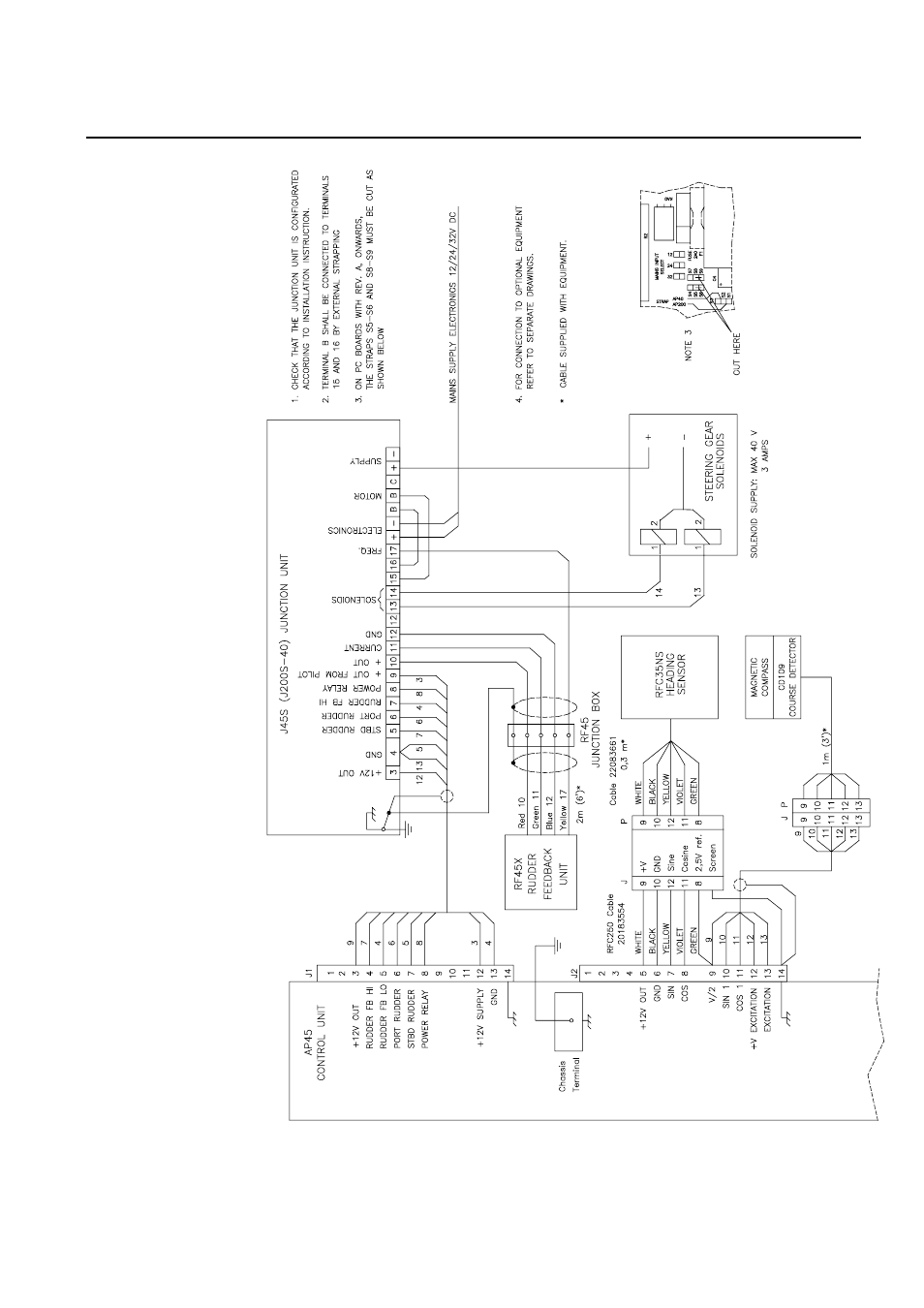

AP45 Wiring diagram - solenoids with negative common (015936H)
