Robertson AP45 Autopilot
Design and theory of operation

Simrad Robertson AS

Egersund - Norway

Page 3-5

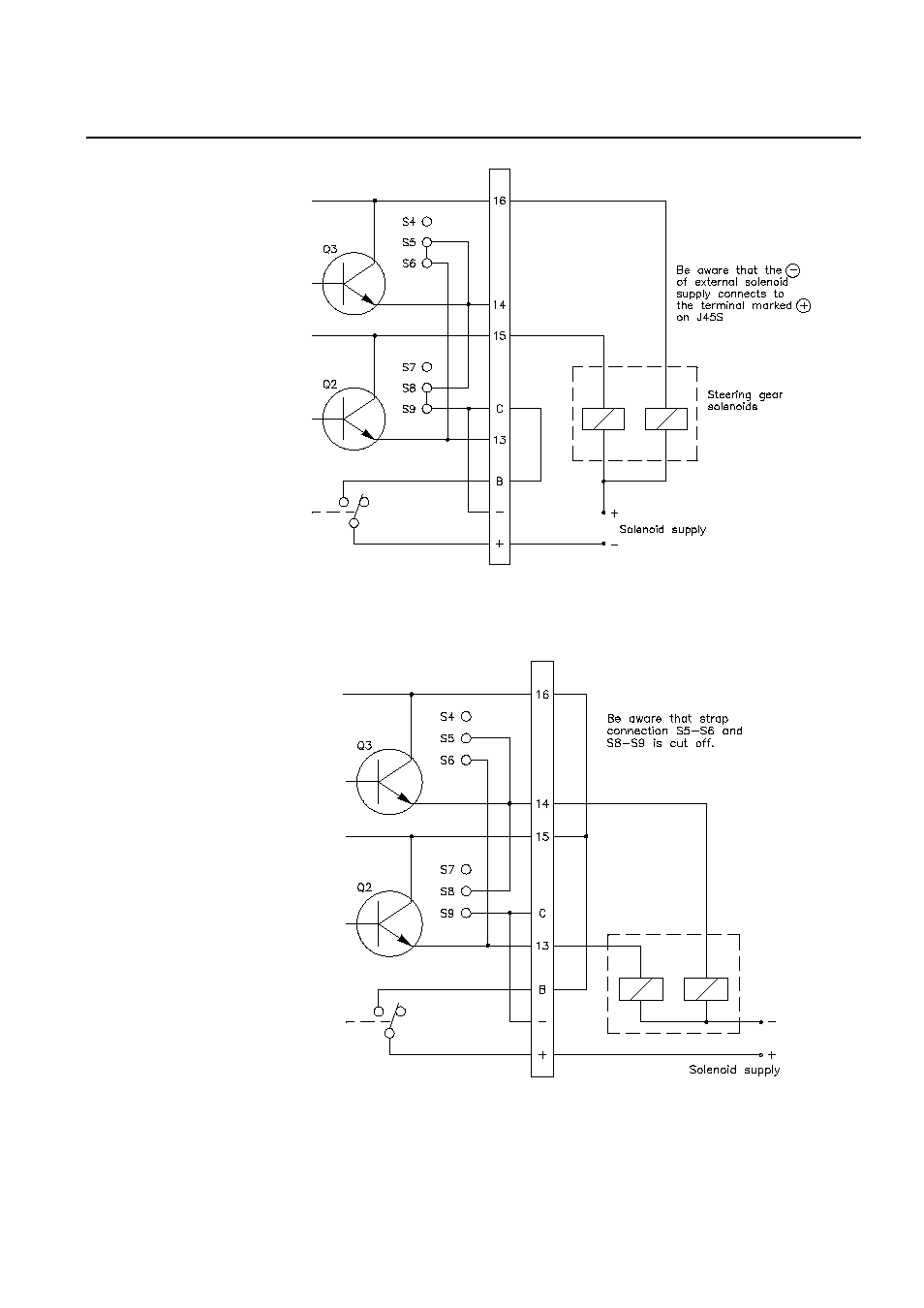

Fig. 3-6

Solenoids with positive common

Fig. 3-7

Solenoids with negative common
