Robertson AP45 Autopilot

Spare parts and drawings

Simrad Robertson AS

Egersund - Norway

Fig. 8-7

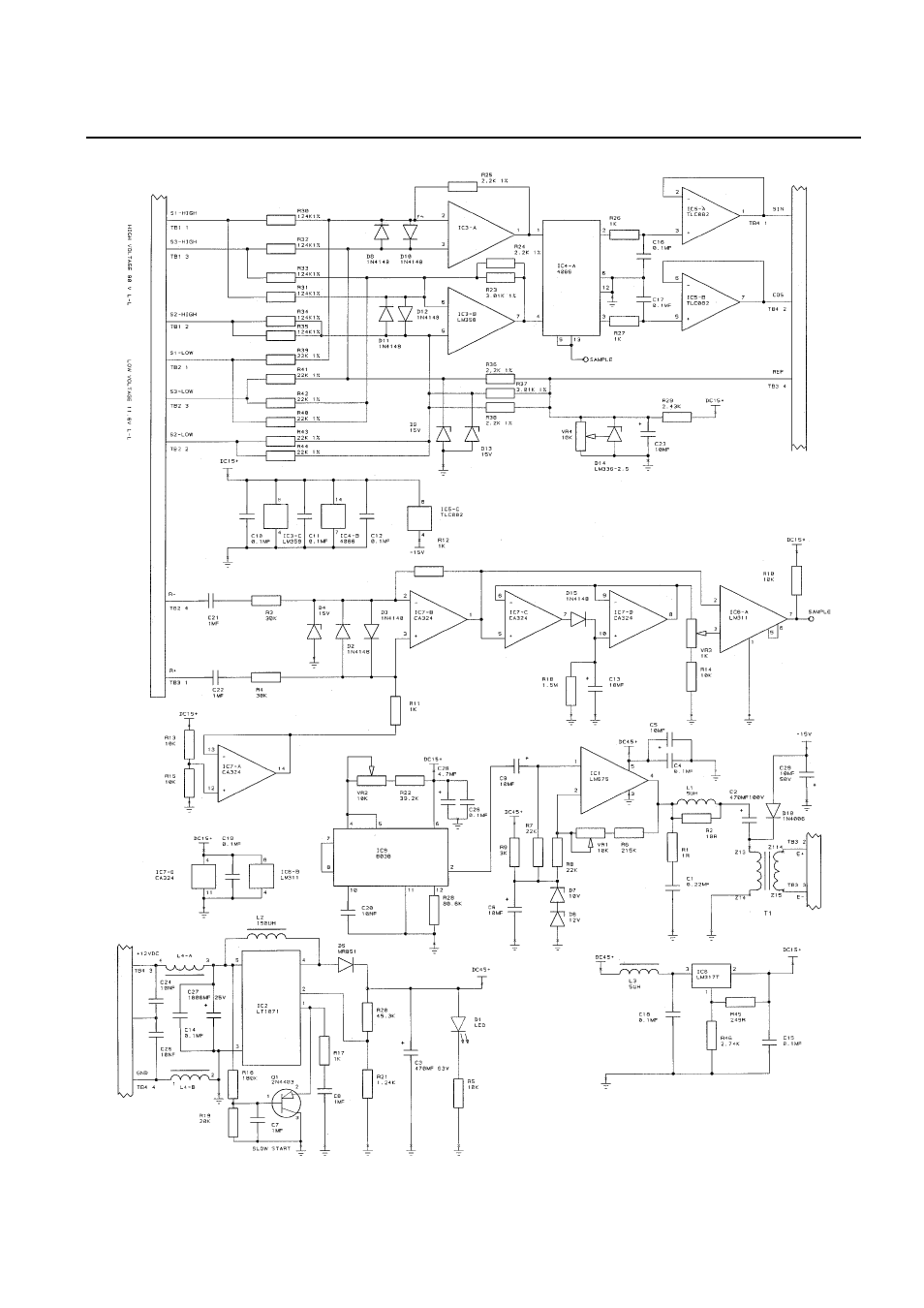

G45 Circuit diagram
