23 ap45 w, Iring diagram, Basic system – Simrad ROBERTSON AP45 User Manual

Page 72: 015936h) -22, M (fig. 5-23), Fig. 5-23 - f

background image

Page 5-22

Robertson AP45 Autopilot

Installation

Simrad Robertson AS

Egersund - Norway

Fig. 5-23

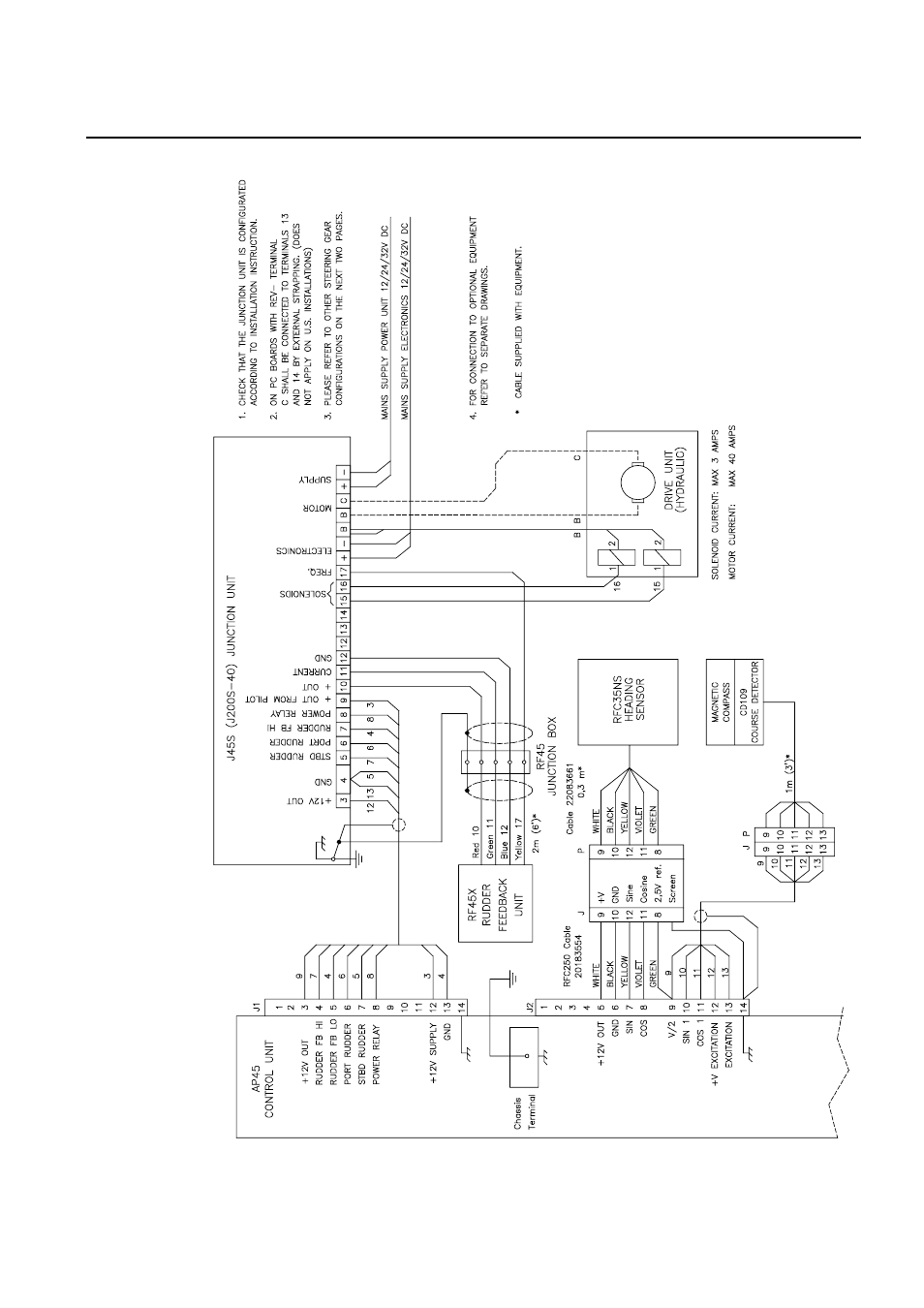

AP45 Wiring diagram - basic system (015936H)
