Robertson AP45 Autopilot
Technical specifications
Simrad Robertson AS
Egersund - Norway
Page 4-11
Dimensions:..............................See Fig. 4-14.
Weight: .....................................1.0 kg
Supply voltage:.........................12/24V DC –25%/+30%, polarity independent
Power consumption: .................Max 3 W
Input signal: .............................Frequency 3400 Hz (midship
reference),
±20Hz/degree
Current: 0.1 - 1.1mA (midship 0,6mA),
polarity independent
Accuracy:...................................±3° (Indicator alone)
Temperature range: .................Storage: –30
°
C to +80
°
C
Operating: –10
°
C to +55
°
C
Environmental protection:.......IP56
Safe distance to
magnetic compass: ...................0.3 m (1 ft)
Cable: ........................................20 m, single twisted pair (not connected).
Rudder Feedback Units: ..........RF300 (frequency signal),
RF45X (current signal)

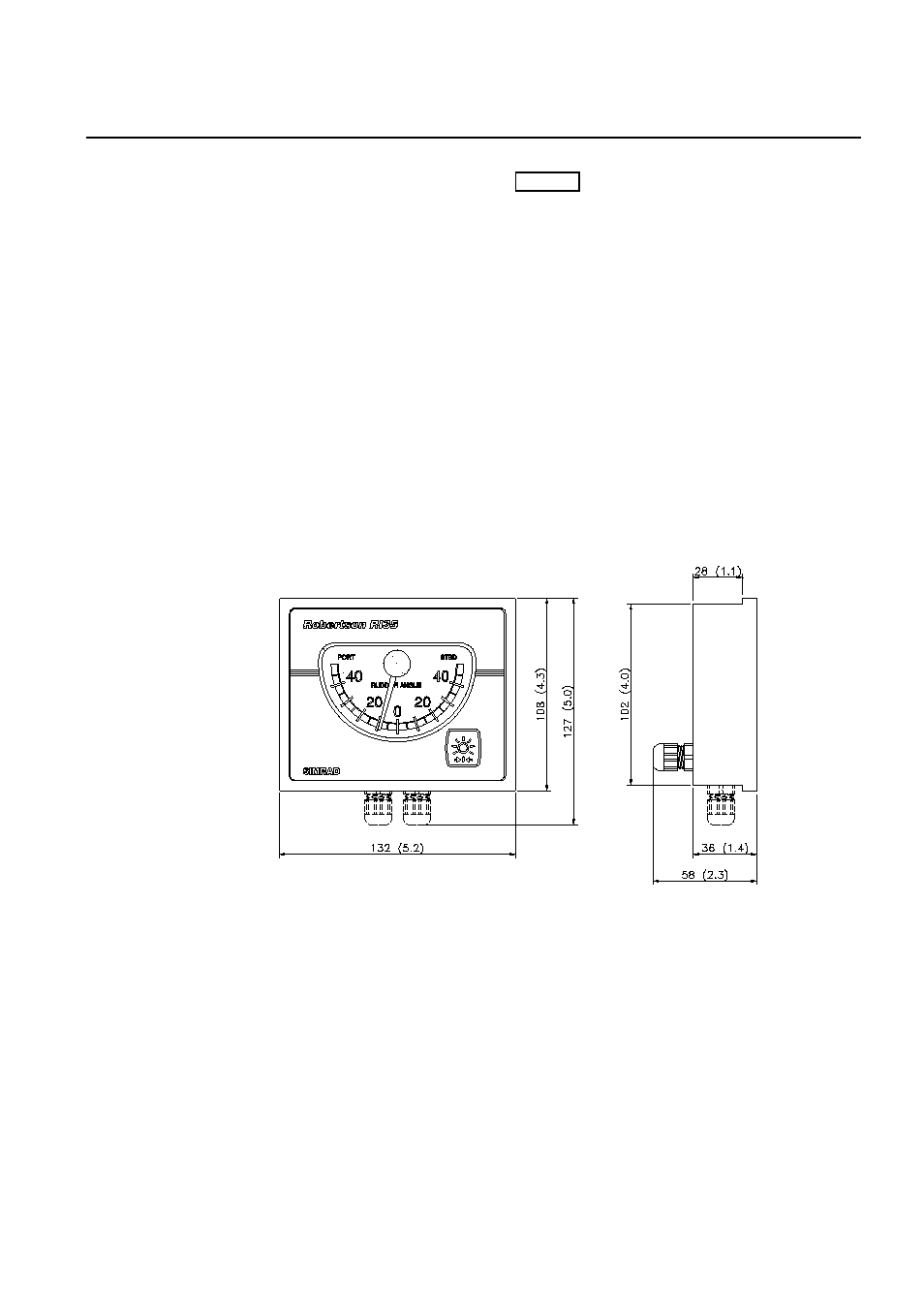

Fig. 4-14
RI35 Rudder Angle Indicator - Dimensions
RI35 Rudder Angle
Indicator
