Instructions for the installer – Smeg APL2640TC User Manual
Page 15
Instructions for the installer
32
MOD. 60 CM
MOD. 77 CM

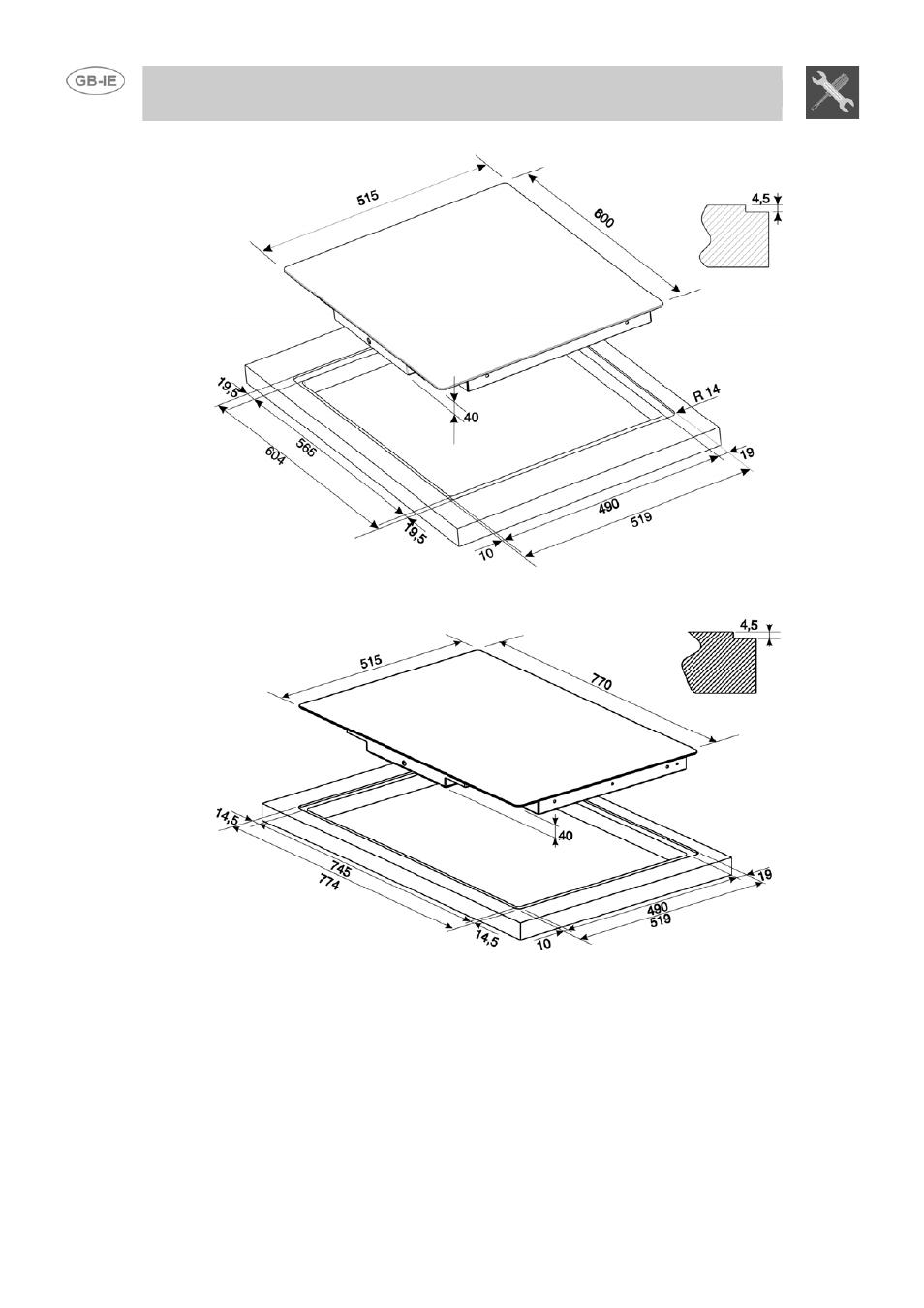

The diagrams illustrate the cutting sizes and additional shaping required for the installation hole if you
decide to install the hob flush with the work-top surface. The work-top hole and shaping dimensions
are purely guideline; it is essential to refer to your actual ceramic hob before making any cuts.
Once the appliance has been installed, fill the gaps between the product and the work-top surface
with insulating silicone and clean to remove any overflows.
