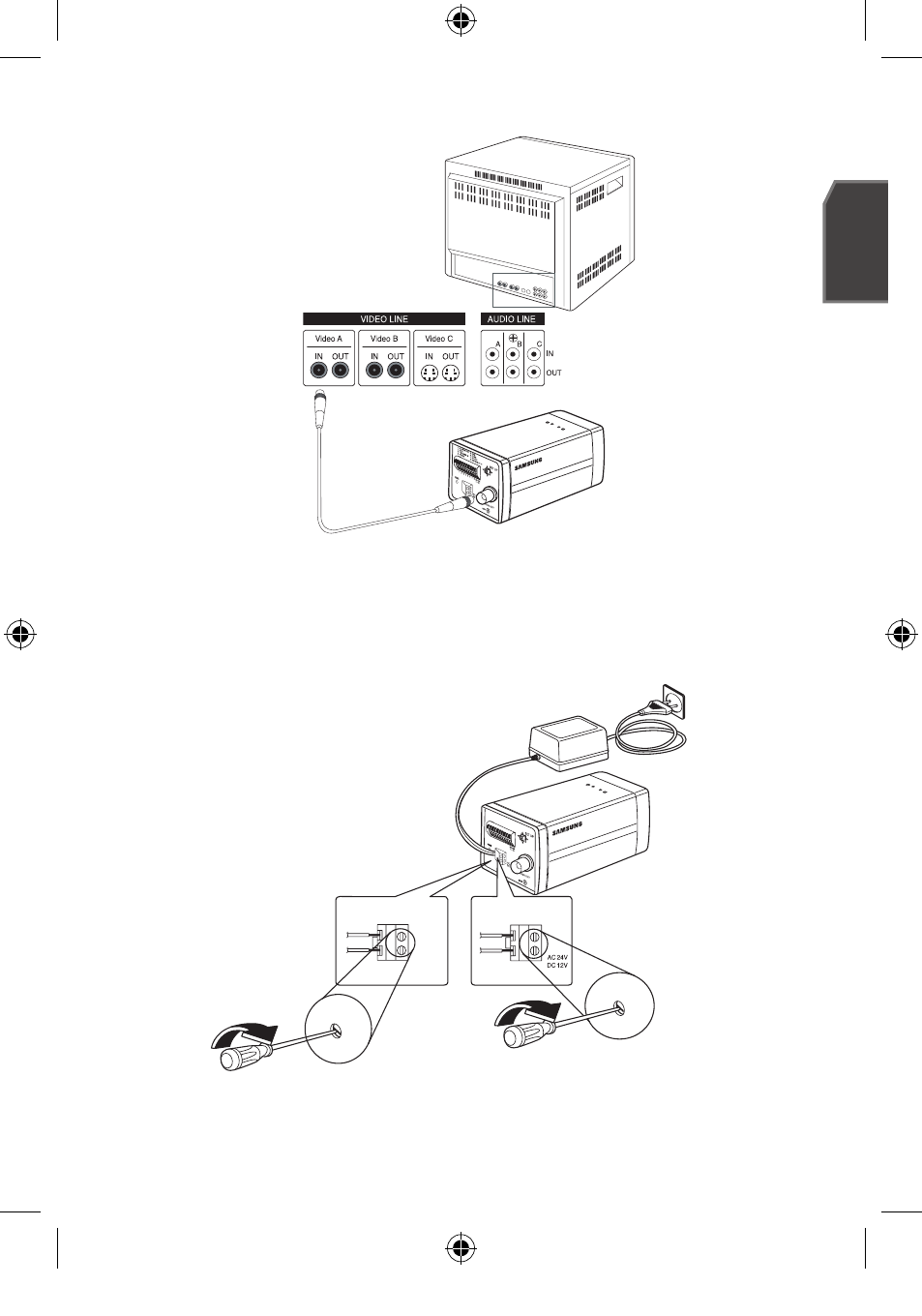

3. Plug in the power adapter(not inlcluded). Use a “minus” screwdriver to connect one
part of the power adapter, which consists of two lines, to the POWER terminal of the
camera as follows :
1 2 3
4 5 6
7 8
1. ALARAM OUT
2. GND
3. TRIGGER IN
4. FOC
US
5. COM
6. ZOOM
7. 5V OUT
8. DA
Y/NIGHT
IN
+12V
GND
SCC-C4353(P)/C4355(P)
SCC-C4253(P)/C4255(P)
Video In Terminal of Monitor Rear Surface
BNC cable(not included)
Video Out Terminal
NTSC ENGLISH.indd 13
2009-9-22 15:48:31
