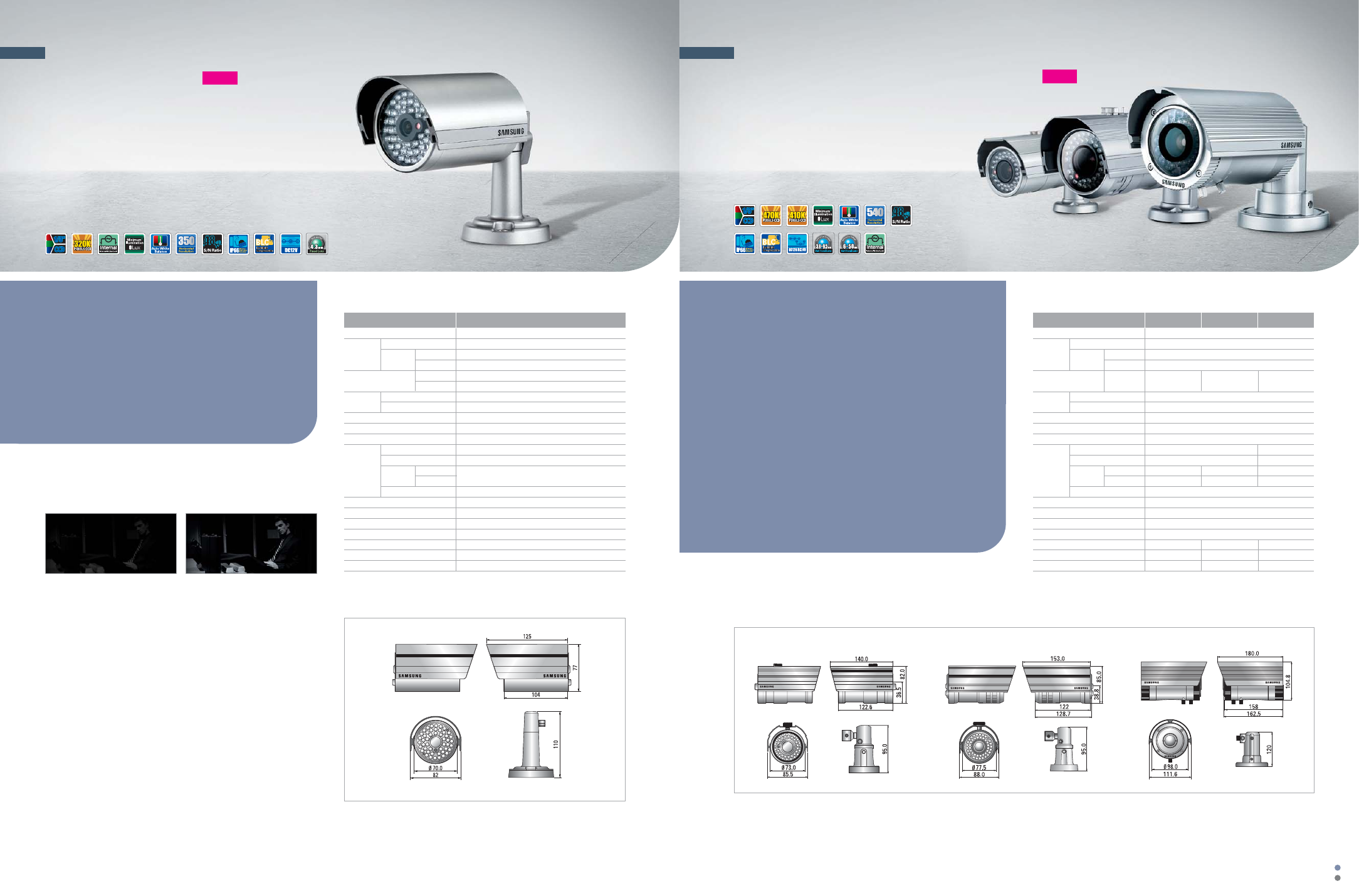

SAMSUNG VIDEO SECURITY SYSTEM I CAMERAS
| Dimensions (unit:mm)
SCC-B9270P
Bullet type IR Leds Day & Night Camera
• 1/3" 320K pixels CCD
• 350 TV lines resolution
• Minimum scene illumination : 0 Lux with IR-LED(48pcs)
• 4.3mm fixed iris lens built-in F2.0
• No focus shift in night time (at LED turn on)
• Back light compensation
• Water resistant (IP66)
• Size: 70(ø) x 104(L)mm
• DC12V, 110mA/450mA (IR LED On)
| Features | Specifications
Model SCC-B9270P
| Min. Illumination 0Lux with IR-LED
Provides sharp images of high resolution through IR LEDs installed by default under
zero Lux when there is no light.
0Lux
SCC-B9371/B9372/B9373
Bullet type IR Leds Day & Night Camera
| Dimensions (unit:mm)
• 1/3" 410K/470K pixels Super-HAD CCD
• 540(Color)/570(BW) TV lines resolution
• Minimum scene illumination : (SCC-B9371(P) : 0 Lux with IR-LED(36pcs)
SCC-B9372P : 0 Lux with IR-LED(42pcs)
SCC-B9373(P) : 0 Lux with IR-LED(42pcs))
• Focal length & focus externally adjustable
• DC iris level external adjustable
• Viewable length at night : (SCC-B9371 : 35m
SCC-B9372 : 45m
SCC-B9373 : 70m)
• Back light compensation
• Water resistant (IP66)
• Size : (SCC-B9371 : 73(ø) x 122(L)mm
SCC-B9372 : 77.5(ø) x 129(L)mm
SCC-B9373 : 98(ø) x 162.5(L))mm
• AC24V/DC12V : (SCC-B9371 : 210mA/600mA (IR LED On)
SCC-B9372 :210mA/650mA (IR LED On)
SCC-B9373 : 210mA/1.2A (IR LED On))
| Features
SCC-B9371 SCC-B9372 SCC-B9373
| Specifications
Camera Type Color
Image Device 1/3" Super-HAD IT CCD
Pixels Total NTSC : 811 x 508 / PAL : 795 x 596
Effective NTSC : 768 x 494 / PAL : 752 x 582
Minimum Scene Color O Lux with IR-LED(36pcs) O Lux with IR-LED(42pcs) O Lux with IR-LED(42pcs)
Illumination B/W Viewable length at night : 35m Viewable length at night : 45m Viewable length at night : 70m
Resolution Horizontal 540(Color)/570(BW) TV Lines
Vertical 350 TV Lines
Video Output VBS 1.0Vp-p
S/N Ratio 48 dB
Function AGC, BLC, ATW
Lens Focal Length 3.8~9.5mm 6~50mm
Aperture Ratio F1.2 F1.6
Viewing Tele 30.0˚(H) x 22.4˚(V) 30.0˚(H) x 22.4˚(V) 5.7˚(H) x 4.3˚(V)
Angle Wide 74.2˚(H) x 54.0˚(V) 74.2˚(H) x 54.0˚(V) 43.9˚(H) x 33.2˚(V)
Lens Drive Type Vari-Focal Auto Iris
Operating Temperature -10˚C ~ + 50˚C
Operating Humidity Less than 90%
Water Resistant IP 66
Power Requirement AC 24V & DC 12V
Power Consumption 2.5W(Led Off)/7.2W(Led On) 2.5W(Led Off)/7.8W(Led On) 2.5W(Led Off)/14.4W(Led On)
Dimension 73(ø) x 122(L)mm 77.5(ø) x 129(L)mm 98(ø) x 162.5(L)mm
Weight 910g 1010g 2335g
Model SCC-B9371 SCC-B9372P SCC-B9373(P)
Camera Type Color
Image Device 1/3" Super-HAD IT CCD
Pixels Total 537 x 597
Effective 500 x 582
Minimum Scene Color O Lux with IR-LED(48pcs)
Illumination B/W Viewable length at night : 40m
Resolution Horizontal 350 TV Lines
Vertical 350 TV Lines
Video Output VBS 1.0Vp-p
S/N Ratio 48 dB
Function AGC, BLC, ATW
Lens Focal Length 4.3mm
Aperture Ratio F2.0
Viewing Tele 73.7˚(H) x 47.3˚(V)
Angle Wide
Lens Drive Type Fixed Iris (ELC Function)
Operating Temperature -10˚C ~ + 50˚C
Operating Humidity Less than 90%
Water resistant IP 66
Power Requirement DC 12V
Power Consumption 1.3W(Led Off)/5.4W(Led On)
Dimension 70(ø) x 104(L)mm
Weight 750g
NEW NEW
