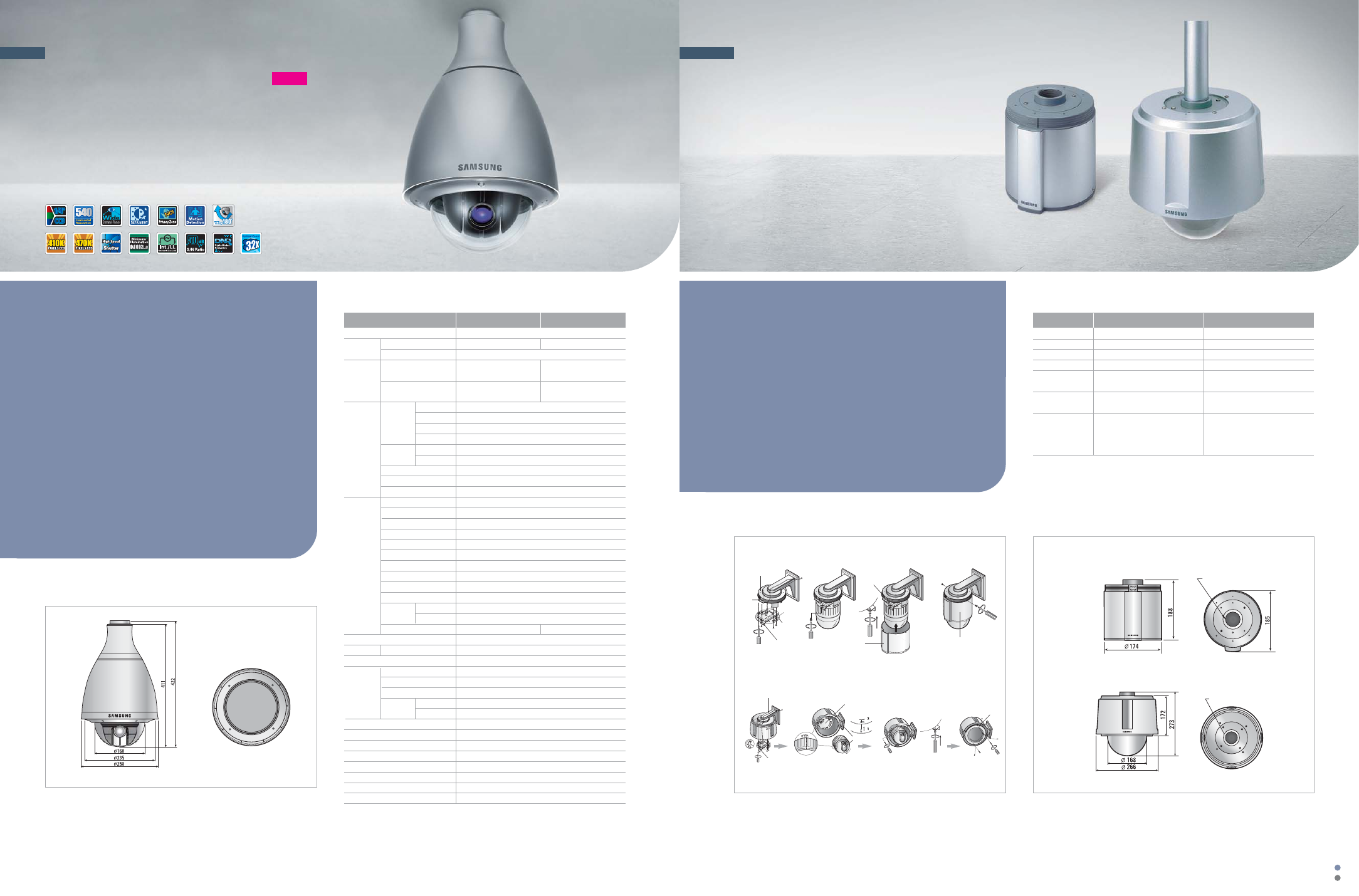

SAMSUNG VIDEO SECURITY SYSTEM I CAMERAS
| Dimensions (unit:mm)
SHG-120/220
In/Outdoor Housing
| Specifications
SHG-120
• For indoor use
• The place of installation should be able to bear up to 4 times of the
total product weight (about 32Kg).
• Aluminum material
• IP 66
SHG-220
• For outdoor installation
• Aluminum material
• Built-in fan/heater function
• IP 66
• Anti-vandal
| Features
| Installation
SHG-120
SHG-220
Cover Top
Boss
Boss
Camera
Adaptor
Lever
Lever
Lever
Case Body
Boss
Camera
Adaptor
Camera
Adaptor
Camera
Adaptor
Camera
Pin
SHG-120
SHG-220
1/2” NPT PiPE THREAD
1/2” NPT PiPE THREAD
Dimensions 174(Ø)x188(H)mm 266mm(Ø)x273(H)mm
Weight 1.2Kg 3.7Kg
Operating Temperature -10~+50ºC -40~+50ºC
Operating Humidity 0~90% 0~100%
Fan Operating
- Always
Temperature
Heater Operating
- 10ºC or below
Temperature
Accessories
Screw(BH M3xL8) 2EA Screw(BH M3xL12) 3EA
Pin 3EA
Silicon Grease 5g
Teflon Tape 1EA
Model SHG-120 SHG-220
| Dimensions (unit:mm)
Camera Type
Device
Effective Pixels
Min. Scene Color
Illumination
B/W
PAN/TILT Speed Manual Pan
Preset Pan
Manual Tilt
Preset Tilt
Range Panning
Tilting
Number of Auto PAN
Number of Preset
Number of Pattern
Functions Number of Privacy Zone
Day & Night
Line Lock
White Balance
D-Zoom
High Speed Shutter
Motion Detection
Sens Up
Camera ID
Remote Control
Alarm
Input
Output
Wide Dynamic Range
Horizontal Resolution
Video Output VBS 1.0Vp-p
S/N Ratio
Lens
Focal Length
Zoom ratio
Aperture Ratio
Viewing Tele
Angle
Wide
Operating Temperature
Operating Humidity
Power Requirement
Power Consumption
LED Indicator
Dimensions
Weight
Color
Color
1/4" Super-HAD IT CCD
1/4" Ex-View-HAD CCD
NTSC : 768 x 494 / PAL : 752 x 582
0.6 Lux(15IRE,Sens-up Off) 0.3 Lux(15IRE,Sens-up Off)
0.002 Lux(15IRE, Sens-up 256x) 0.001 Lux(15IRE, Sens-up 256x)
0.06 Lux(15IRE,Sens-up Off) 0.03 Lux(15IRE,Sens-up Off)
0.0002 Lux(15IRE, Sens-up 256x) 0.0001 Lux(15IRE, Sens-up 256x)
0 ~180˚/sec
400˚/sec
0.1~90˚/sec
200/sec
0~360˚/sec (Endless)
0~180˚
4
128
3
16
Color/BW/Auto (Moving Filter)
INT/Line Lock
ATW1/ATW2/AWC/MANUAL
Yes(~16x)
Yes (OFF ~ 1/10K)
Yes
Yes(2x ~ 256x)
Max 20 Character
RS485(Half&Full Duplex)/RS422
8
3(Open Collector 1 relay)
N/A
Yes
540(Color)/570(BW) TV Lines
VBS 1.0Vp-p
about 50 dB
3.55 ~ 113mm
32x Optical
F1.69(W)/F4.2(T)
1.78˚(H) x 1.34˚(V)
56.41˚(H) x 43.01˚(V)
-45˚C ~ + 50˚C
Less than 90%
NTSC : AC24V, 60Hz / PAL : AC24V, 50Hz
24W (Only Camera) / 55W (With Fan & Heater)
Yes
258(Ø) X 422(H)mm
5,950g
Silver
Model SCC-C7433(P) SCC-C7435(P)
SCC-C7433/C7435
High Resolution SmartDome Camera
| Specifications
• 1/4" 410K/470K pixels Ex-View HAD PS CCD (SCC-C7435)
1/4" 410K/470K pixels Super HAD IT CCD (SCC-C7433)
• 32x optical zoom lens (16x D-zoom)
• High resolution : 540(Color)/570(BW) TV lines
• Day & Night (moving filter)
• Minimum scene illumination :
(SCC-C7435 : 0.001 Lux (15 IRE, 256x Sens-up, Color)
SCC-C7433 : 0.002 Lux (15 IRE, 256x Sens-up, Color))
• 128x(NTSC) / 160x(PAL) WDR function (SCC-C7435)
• Full auto focus function
• Pan (max 400˚/sec), tilt (200˚/sec)
• 360˚ endless pan(slip-ring), 0~180˚ tilt
• RTC function for schedule setting
• Multi-protocol (more than 8 companies), multi-OSD
• Remote control : RS485(half & full duplex)/RS-422
• Operating temp.(-45˚C~50˚C) with fan / heater
• Water / dust resistant(IP66)
| Features
