1_ installation & connection
installation & connection
PREPARING INSTALLATION
To install and use the camera, first prepare the following cables.

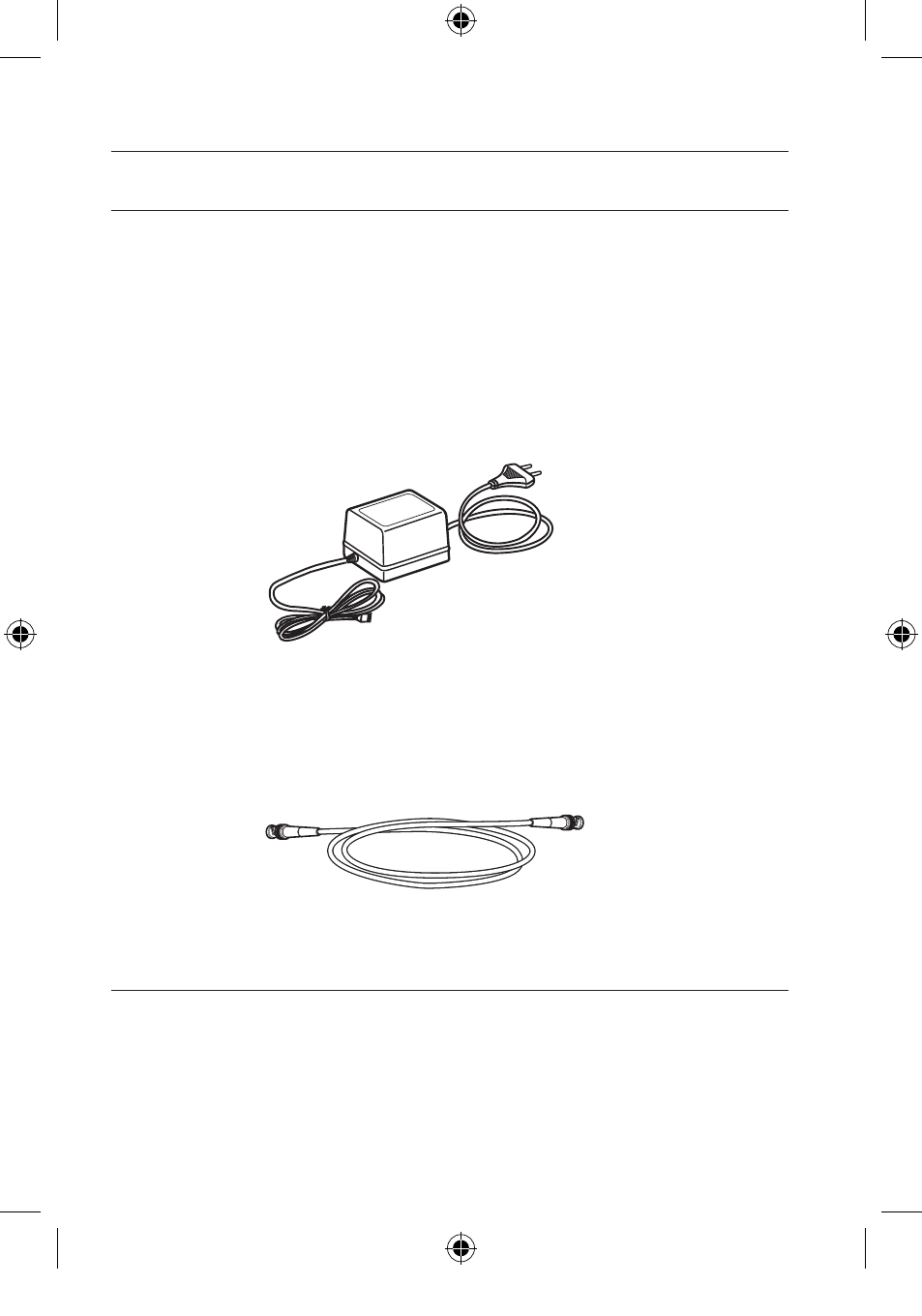

Power Adapter Cable (sold separately)
The requirements for the power adapter, which connects to the camera’s
POWER IN terminal, are as follows:
- SCC-C4253/C4255 : DC 12V 600mA
- SCC-C4353/C4355: AC 24V 300mA
DC 12V 600mA
video Cable(sold separately)
Use a BNC cable, such as the one shown below, to connect the camera’s VIDEO
OUT to the monitor.
CONNECTING THE CAbLES
1. Connect one end of the BNC cable(not included) to the VIDEO OUT.
2. Connect the other end of the BNC cable (not included) to the VIDEO IN of the
monitor.
