Pin assignment of the multipin cable
Pin assignment of the multipin cable

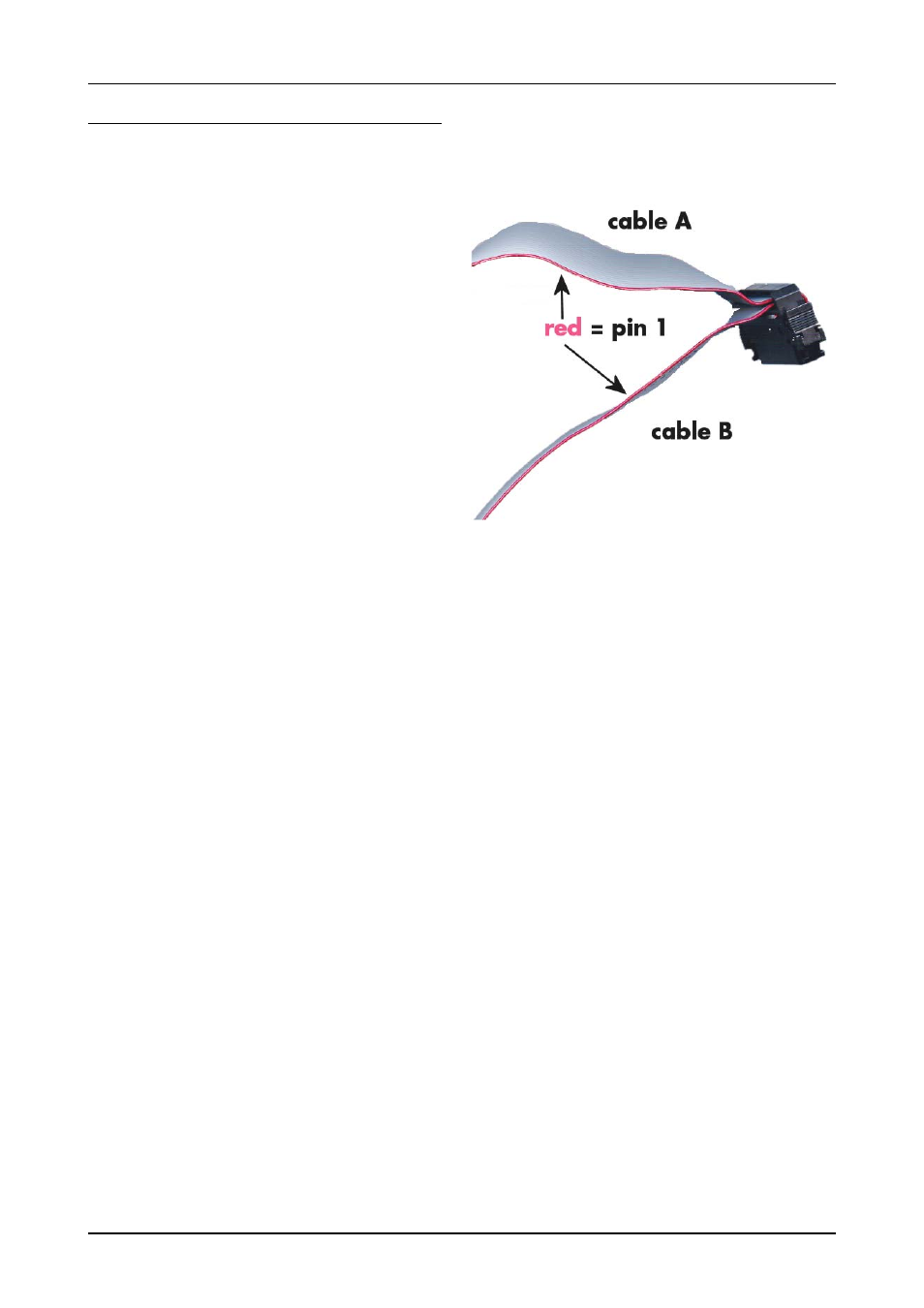

The 40 lead multipin cable is used for the additional digital inputs
(on analog acquisition boards only) or additional digital outputs (on
analog generation boards only) as well as for the digital I/O or pat-
tern generator boards.
The flat ribbon cable is shipped with the boards that are equipped
with one or more of the above mentioned options. The cable ends
are assembled with a standard IDC socket connector so you can eas-
ily make connections to your type of equipment or DUT (device under
test).
The pin assignment is given in the table in the according chapter of
the appendix.
