April 17, 2000

Man ual Versio n 1.0

B.9

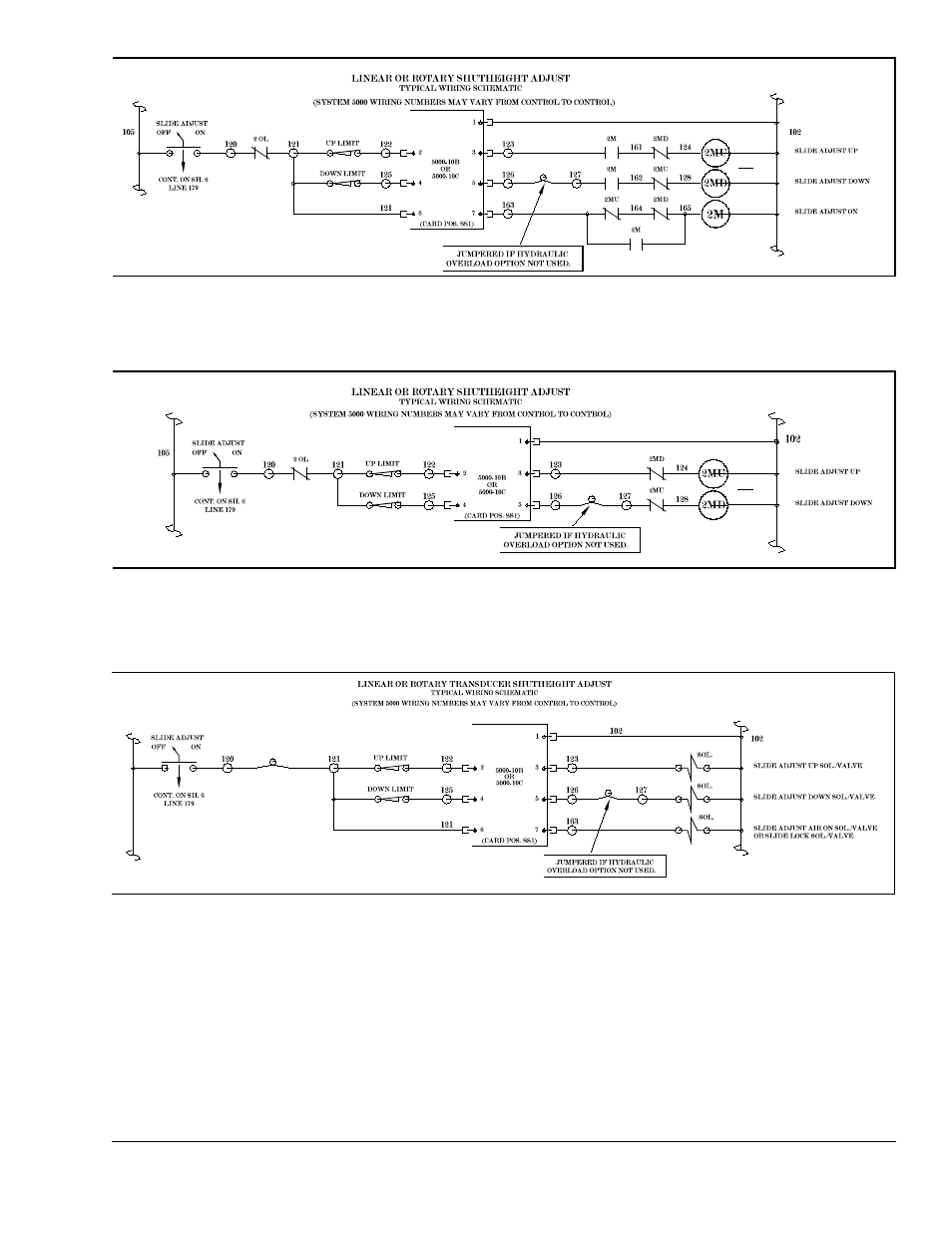

Figure B.9: Typical Slide Motor Starter Wiring With Auxiliary Contactor

Figure B.10: Typical Slide Motor Starter Wiring Without Auxiliary Contactor

Figure B.11: Typical Slide Air Motor Solenoid Wiring
