Instructions for the installer
40
3.2 Burner and nozzle characteristics table
Rated
Burner heating
capacity
(kW)
LPG – G30/G31 28/37 mbar
Nozzle By-pass Reduced Flowrate Flowrate
diameter mm flowrate g/h G30 g/h G31
1/100 mm 1/100 (W)
Auxiliary 1.05 50 30 400 76 75
Semi rapid 1.8 65 33 500 131 128
Rapid 3.0 85 45 800 218 214
Triple crown 4.0 100 65 1600 291 286
Rated
Burner heating
capacity
(kW)
NATURAL GAS – G20 20 mbar
Nozzle diameter Reduced flowrate
1/100 mm (W)
Auxiliary 1.05 72 400
Semi rapid 1.8 97 500
Rapid 3.0 115 800
Triple crown 4.0 135 1600

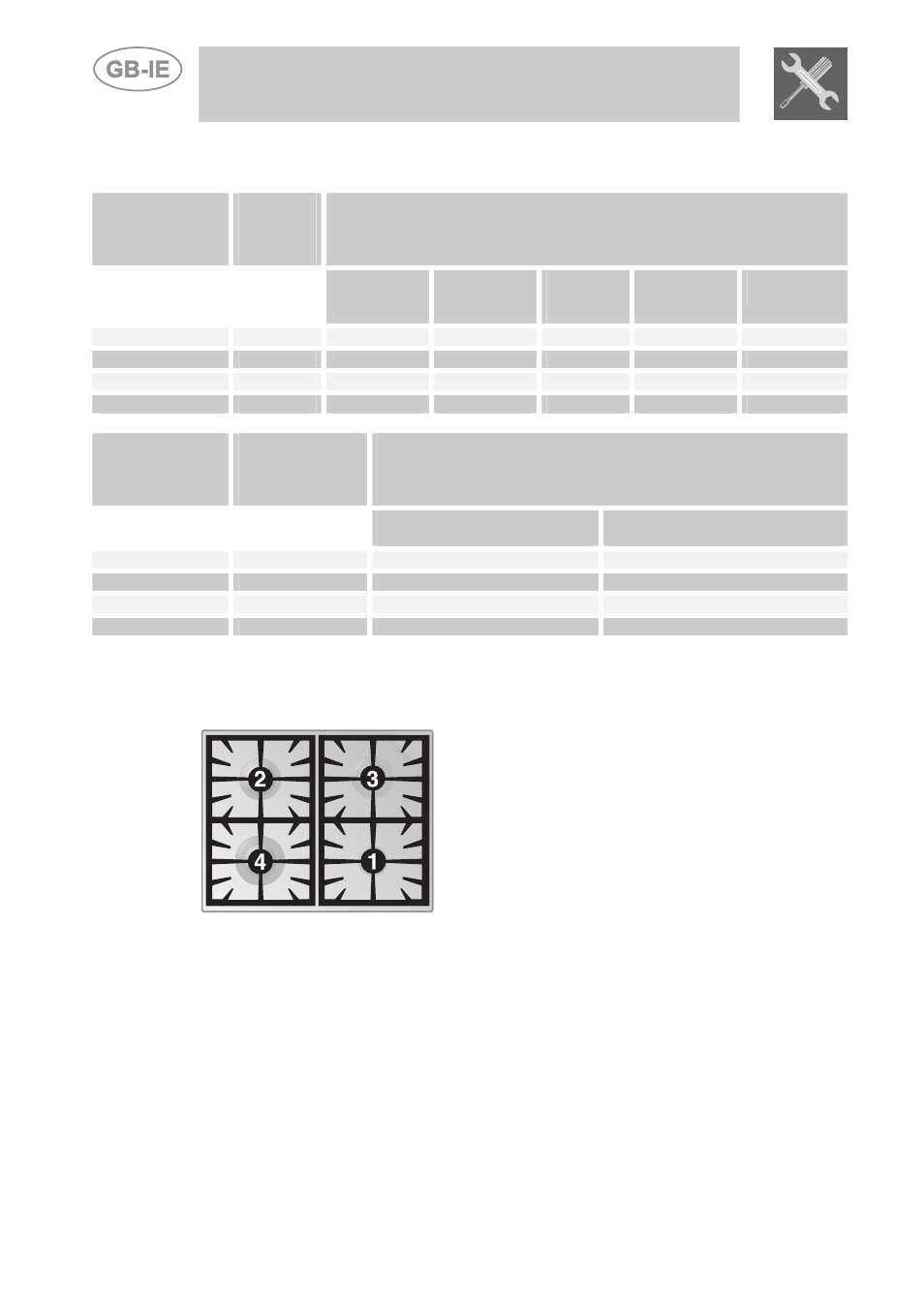

3.3 Arrangement of burners on cooking hob
BURNERS
1 Auxiliary
2 Semi rapid
3 Rapid
4 Triple crown
