ULTRA HIGH EFFICIENCY POWER VENT/POWER DIRECT VENT - SERVICE MANUAL

Technical Literature Department

14 of 52

Servicing should only be performed by a Qualified Service Agent

VENTURI

A Venturi is connected to the inlet of the blower. All combustion air flows through the Venturi.
The outlet of the 24 VAC gas valve connects directly to the side of the Venturi. Fuel gas
flows from the outlet of the gas valve into the side of the Venturi directly.

Inside the Venturi there is a cone shaped restrictor that constricts the air passage to the
blower inlet. As air enters the constriction point it’s velocity increases. A pressure drop
occurs at this point and creates a negative pressure in the cavity between the cone shaped
restrictor and the Venturi housing. This negative pressure “pulls” gas from the outlet of the
gas valve into the blower where it is mixed with combustion air and then supplied to the

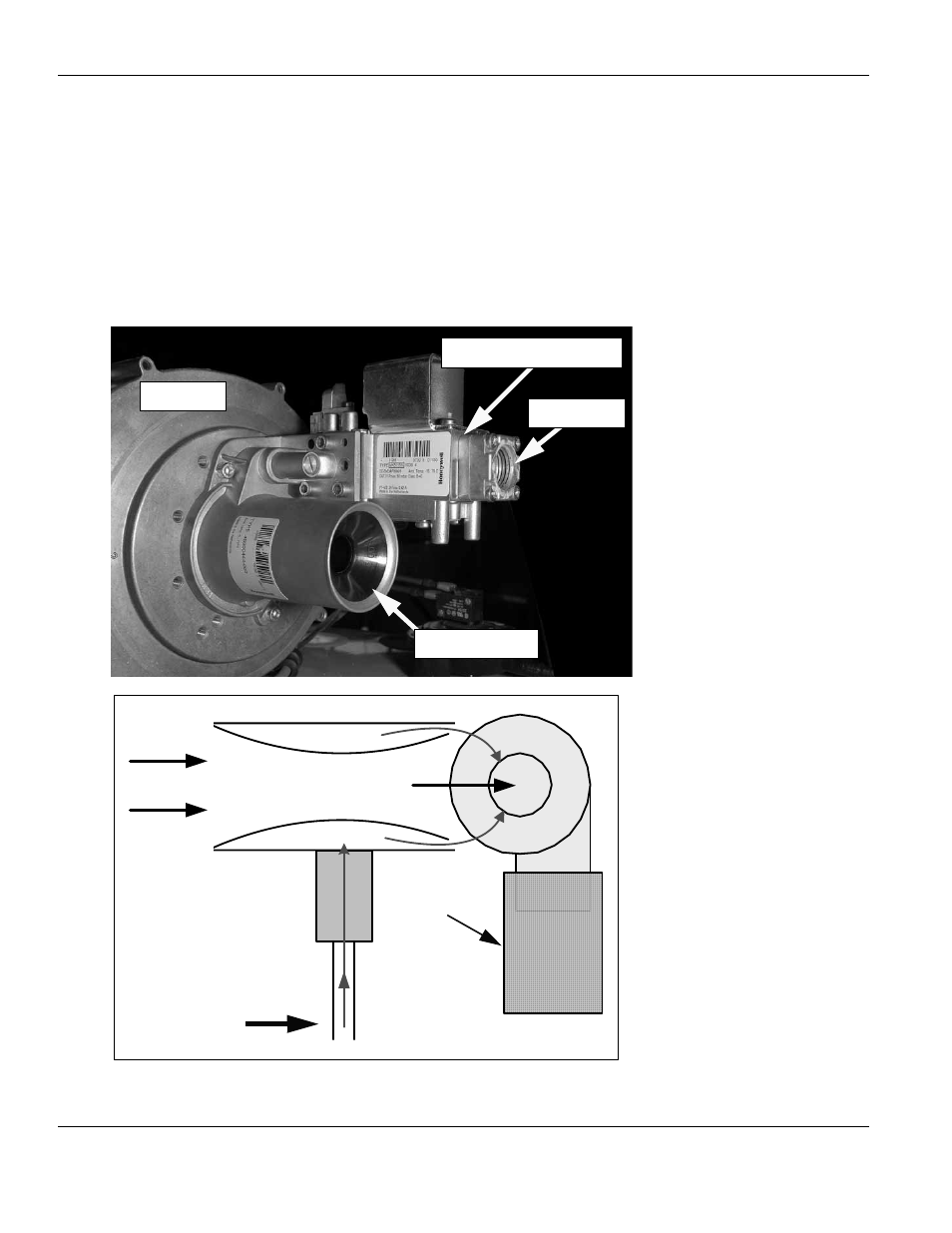

burner. See the images below.

VALVE

Velocity Increases

At Constriction Point

Pressure Drops

Negative Pressure

Combustion Air

Venturi Inlet

24 VAC Gas Valve

Gas Inlet

Supply Gas

Blower

Blower

Burner

Venturi
