Chapter 3. Troubleshooting RXT Media
29
5. Use a #2 Phillips screwdriver to loosen the screw on the bracket that secures the
connector to the disk drive (Figure 3-10).
Caution: Take care not to
damage the
flex circuit;
keep the cable
as straight as
possible.
6. Carefully remove the bracket from the disk drive, sliding it first down the cable,
then off (Figure 3-11).

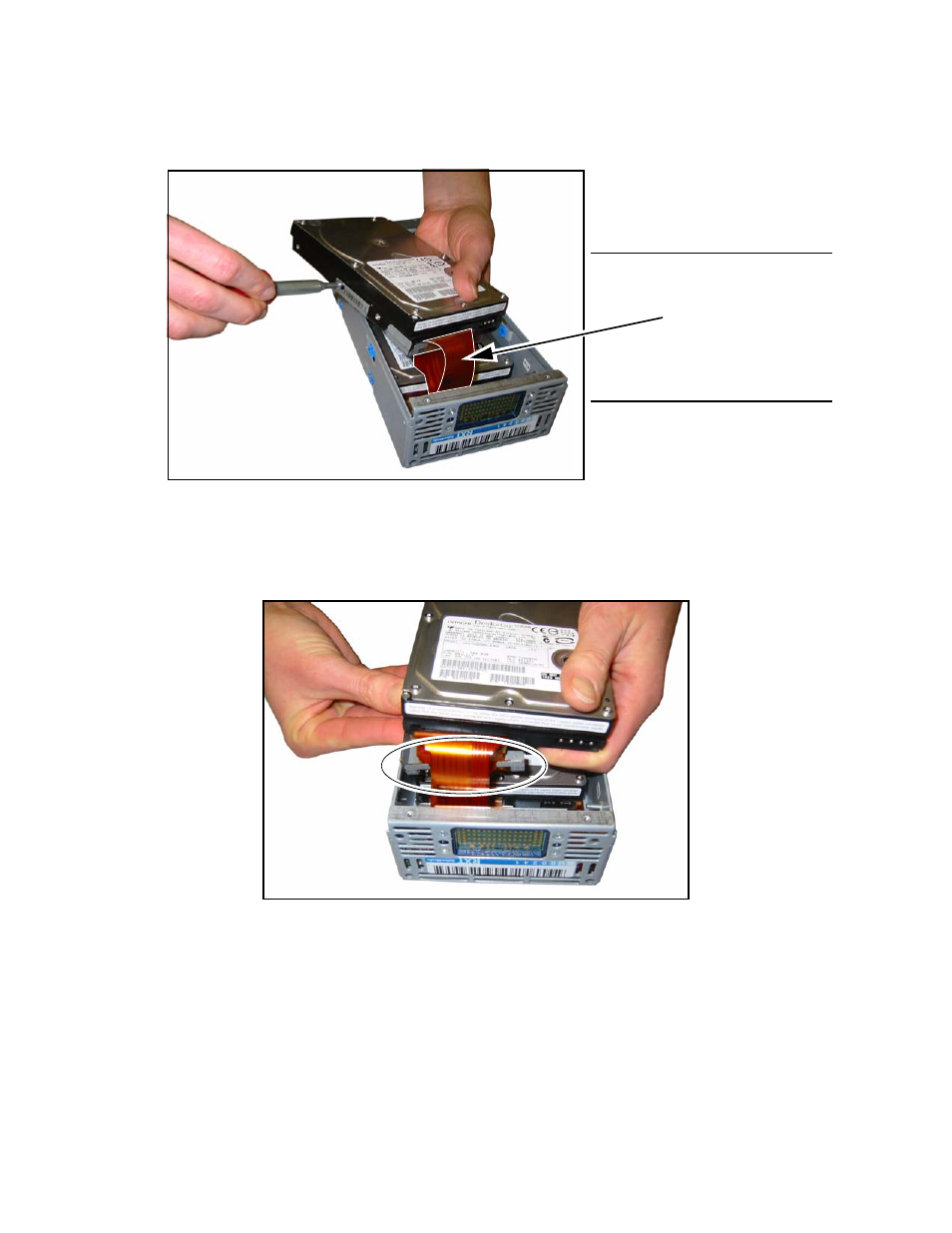

Figure 3-10 The bracket screw (Silver media shown).
o
Figure 3-11 Sliding the bracket off the connector.
