Chapter 3. Troubleshooting RXT Media
25
Replacing a Disk Drive in
Silver and Green RXT Media
Use this process to replace a 3.5-inch disk drive in Silver and Green RXT media.
Opening the Media Pack
1. Carefully turn the RXT media pack upside-down.
2. Use a #1 Phillips screwdriver to remove the screws that secure the pack’s bottom
(Figure 3-3 and Figure 3-4).
3. Remove the bottom panel and set it aside.

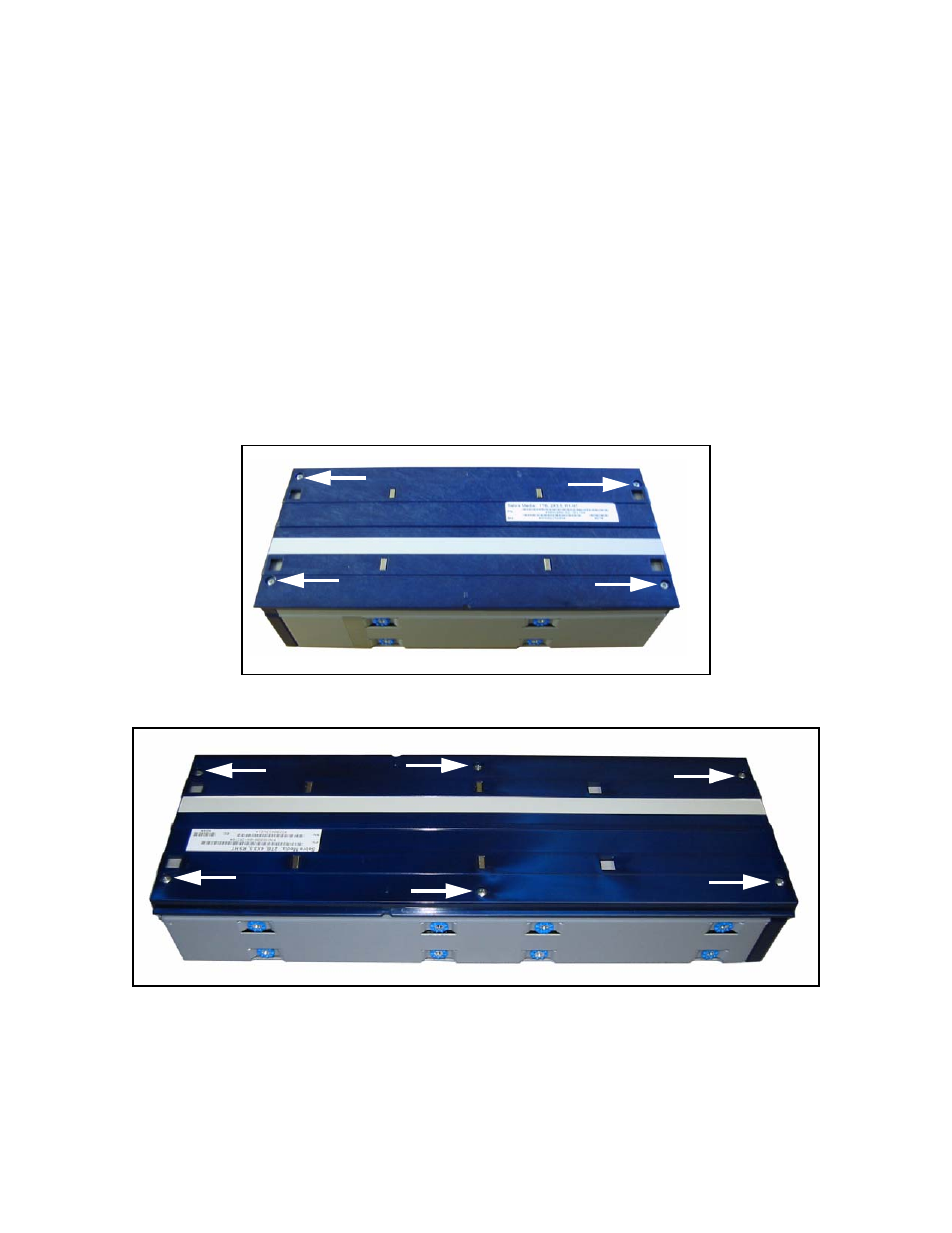

Figure 3-3 An Silver RXT media pack with four screws to remove.
Figure 3-4 An Green RXT media pack with six screws to remove.
