Chapter 2. Troubleshooting the RXT150
18
Capturing Debug Files with the Serial Interface
Before You Begin
Before using the serial interface, make sure that:
• You have a properly configured terminal emulator, such as TeraTerm.
(HyperTerminal is not recommended for use with the RXT-150.)
• You have a standard DB9 serial cable.
• The terminal emulation settings are set to:
• 115200 bps • 8 data bits • No parity • 1 stop bit • No flow control
Capturing Debug Files
1. Connect a serial cable from the host to the RXT150.
2. Open TeraTerm, or a similar terminal emulation program.
You may need to press the Enter key on your keyboard to display a command
prompt.
3. Type cnDiagnosticShell , then press the Enter key on your keyboard. The
RXT Drive Diagnostics Main Menu (Figure 2-10) displays.

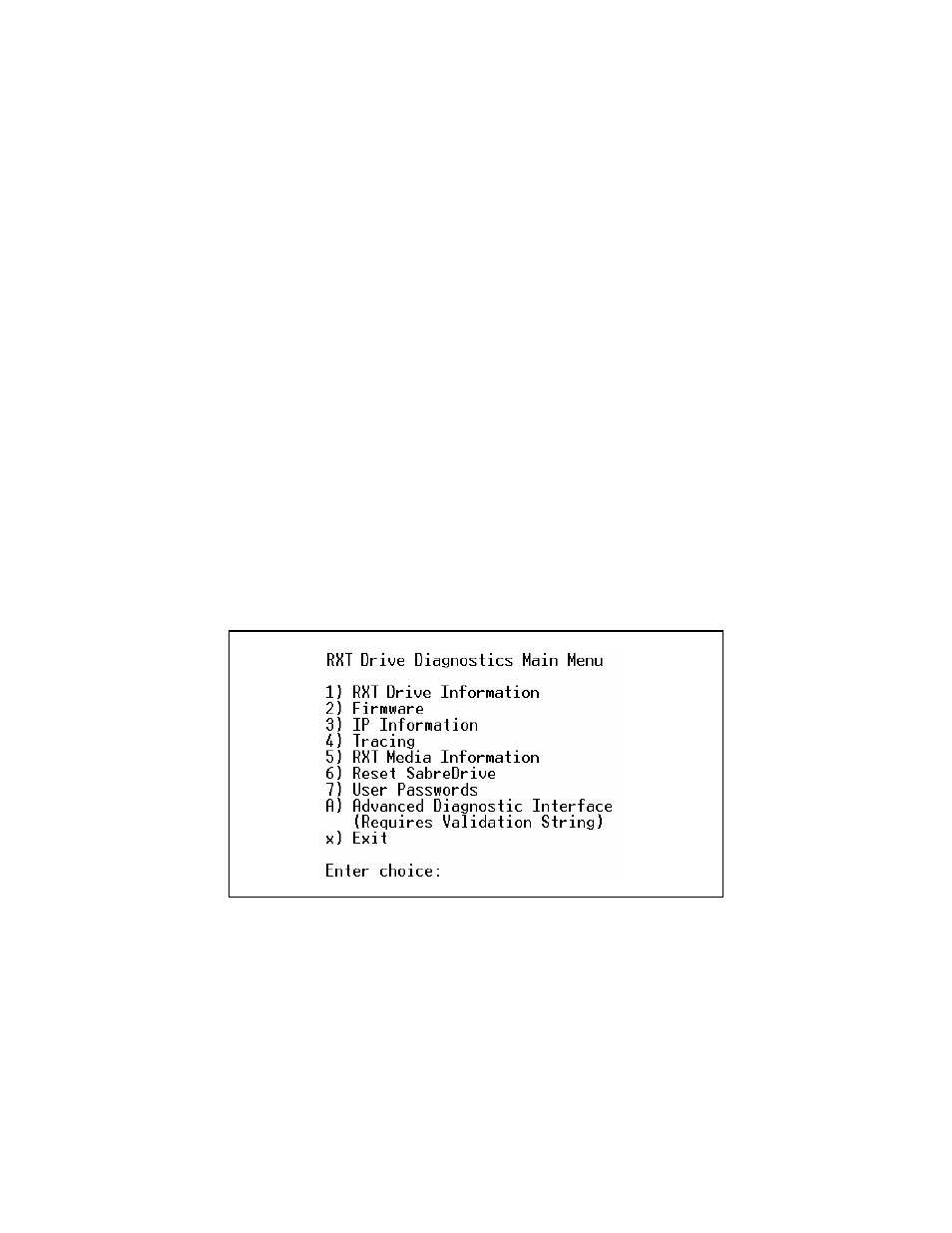

Figure 2-10 The RXT Drive Diagnostics Main Menu.
