Precision Comfort™ Owners Manual
9
INSTALLATION
10. Install mattress retainer as follows:
a. Locate (1) mattress retainer and (1)
mattress retainer hardware kit (bag).
b. Install (1) cupped washer, (1) spacer
and (1) flat washer on (4) mattress
retainer bolts (
FIGURE 4).
c. Locate (4) threaded lugs in the top side
of the foot section of the foundation
base. The lugs will be marked with
locating pins.
d. Remove the locating pins (pull out).
e. Install the mattress retainer bolts (loosely)
into the (4) threaded lugs ( FIGURE 5).
f. Slide each U-shaped end of the
mattress retainer around the mattress
retainer bolts. Position the retainer
ends between the spacer and the
washer (
FIGURE 5).
MATTRESS RETAINER HARDWARE
KIT CONTAINS:
(4) MATTRESS RETAINER BOLTS - A
(4) FLAT WASHERS - B
(4) SPACERS - C
(4) CUPPED WASHERS - D
CUPPED
WASHER
FLAT
WASHER
SPACER
MATTRESS
RETAINER
BOLT
ASSEMBLE AS
SHOWN BELOW:
A
B
C
D

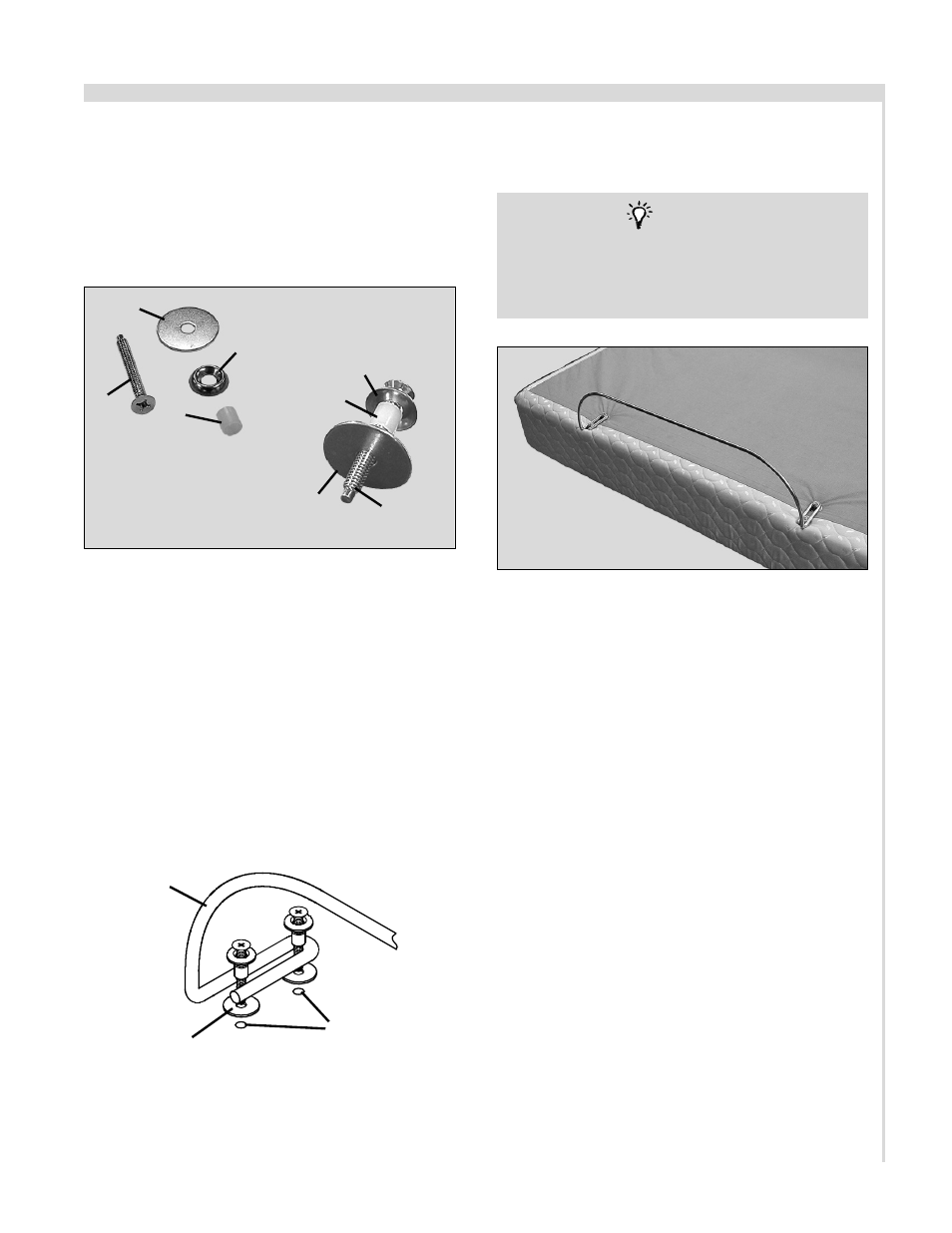

FIGURE 4: Mattress retainer hardware.
g. Tighten screws to complete mattress
retainer installation ( FIGURE 6).
Note: if adjustable foundation is to be set
up without a headboard, install mattress
on the foundation base frame and
installation is complete. If headboard is
to be installed, proceed to step 11.
DO NOT USE POWER SCREWDRIVER TO
INSTALL MATTRESS RETAINER.
DO NO DO NO DO NO DO NO DO NOTTTTT
O O O O OVERTIGHTEN MA VERTIGHTEN MA VERTIGHTEN MA VERTIGHTEN MA VERTIGHTEN MATTRESS RET TTRESS RET TTRESS RET TTRESS RET TTRESS RETAINER AINER AINER AINER AINER
HARD HARD HARD HARD HARDW W W W WARE! ARE! ARE! ARE! ARE!
NOTE
FIGURE 6: Typical mattress retainer installed.
FLAT WASHERS FIT BETWEEN
THE FOUNDATION BASE FRAME
AND THE MATTRESS RETAINER
(2) THREADED LUGS IN
EACH SIDE OF THE
FOUNDATION FOOT
SECTION (MARKED WITH
LOCATING PINS)
MATTRESS
RETAINER
FIGURE 5: Mattress retainer installation.
