Precision Comfort™ Owners Manual
10
INSTALLATION
FAILURE TO FOLLOW HEADBOARD
BRACKET INSTALLATION INSTRUCTIONS
MAY CAUSE HEADBOARD BRACKET
INTERFERENCE WITH BASE FOAM DURING
ADJUSTABLE BED OPERATION. BASE
FOAM OR BASE COVER DAMAGE COULD
RESULT.
NOTE
11. Install headboard brackets to the
foundation base frame. When attaching (2)
twin size units to a king size headboard,
use swing-away hinges (see accessories)
to connect the twin units.
3 inches MAX
.

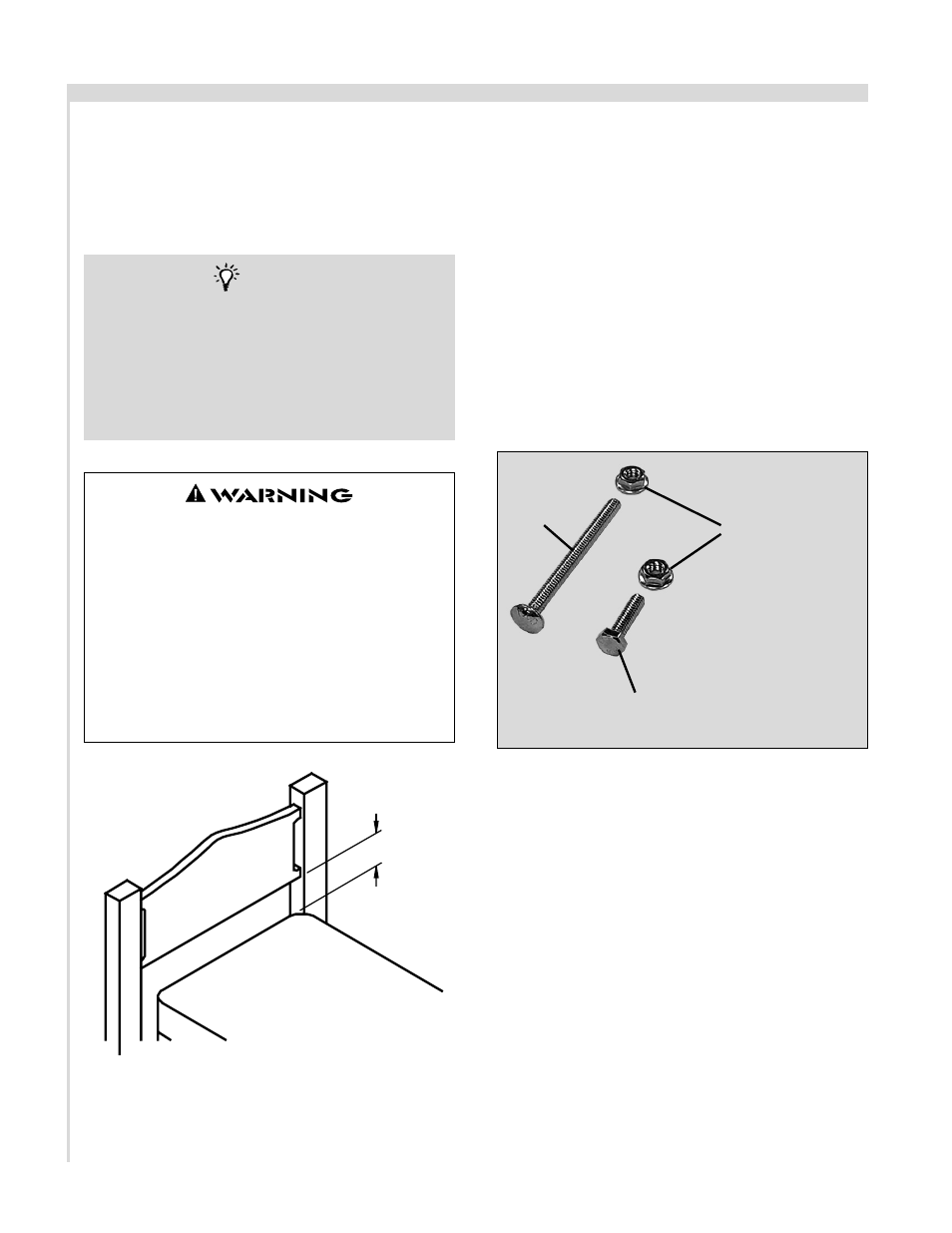

FIGURE 7: headboard cross member location must not
exceed 3 inches (76.2mm) from the top of the mattress.
12. Install headboard bracket assemblies per
the following procedure:
a. Raise the head section of the bed (with
hand control) to gain access to the bed
base frame.
b. Slide one headboard bracket channel
onto one side of the bed base frame.
Using (2) bolts/nuts (
FIGURE 8) attach
channel to base frame ( FIGURE 9).
Hand tighten bolts/nuts (loosely) to
allow adjustment of the headboard
bracket channels. Repeat procedure to
install the other headboard bracket
channel to the other side.
FIGURE 8: Headboard bracket hardware.
HEADBOARD BRACKET
HARDWARE KIT CONTAINS:
(4) 3 INCH CARRIAGE BOLTS - A
(4) 1 INCH HEX HEAD BOLTS - B
(8) NUTS - C
C
A
B
IN ORDER TO AVOID A PERSON OR PET
BEING CAUGHT IN THE SPACE
REFERENCED BELOW WHILE THE BED IS IN
MOTION, THE BOTTOM OF THE
HEADBOARD CROSS MEMBER MUST BE
POSITIONED SO THAT THERE IS NO MORE
THAN 3 INCHES (76.2mm) BETWEEN THE
HEADBOARD AND THE TOP OF THE
MATTRESS (FIGURE 7).
DO NO DO NO DO NO DO NO DO NOT EX T EX T EX T EX T EXCEED CEED CEED CEED CEED
3 INCHES (76.2 3 INCHES (76.2 3 INCHES (76.2 3 INCHES (76.2 3 INCHES (76.2mm mm mm mm mm). ). ). ). ). FAILURE TO FOLLOW
THIS INSTRUCTION COULD RESULT IN
SERIOUS PERSONAL INJURY OR DEATH.
