Inserting and Removingthe PCS Connection Card
Inserting the PCS Connection Card
Before you insert the PCS Connection Card, you must first install the PCS
Connection Manager Software as discussed earlier in this chapter. Once
you have completed the software installation procedure, you may insert
your card into your computer’s PC Card slot. The Sprint label should be
facing up and the 68-pin connector, located at the end of the card, should
be inserted directly into the computer’s PC Card slot.
Note: The PCS Connection Card should fit snugly, but you should be able
to insert or remove it easily from your computer’s PC Card slot.

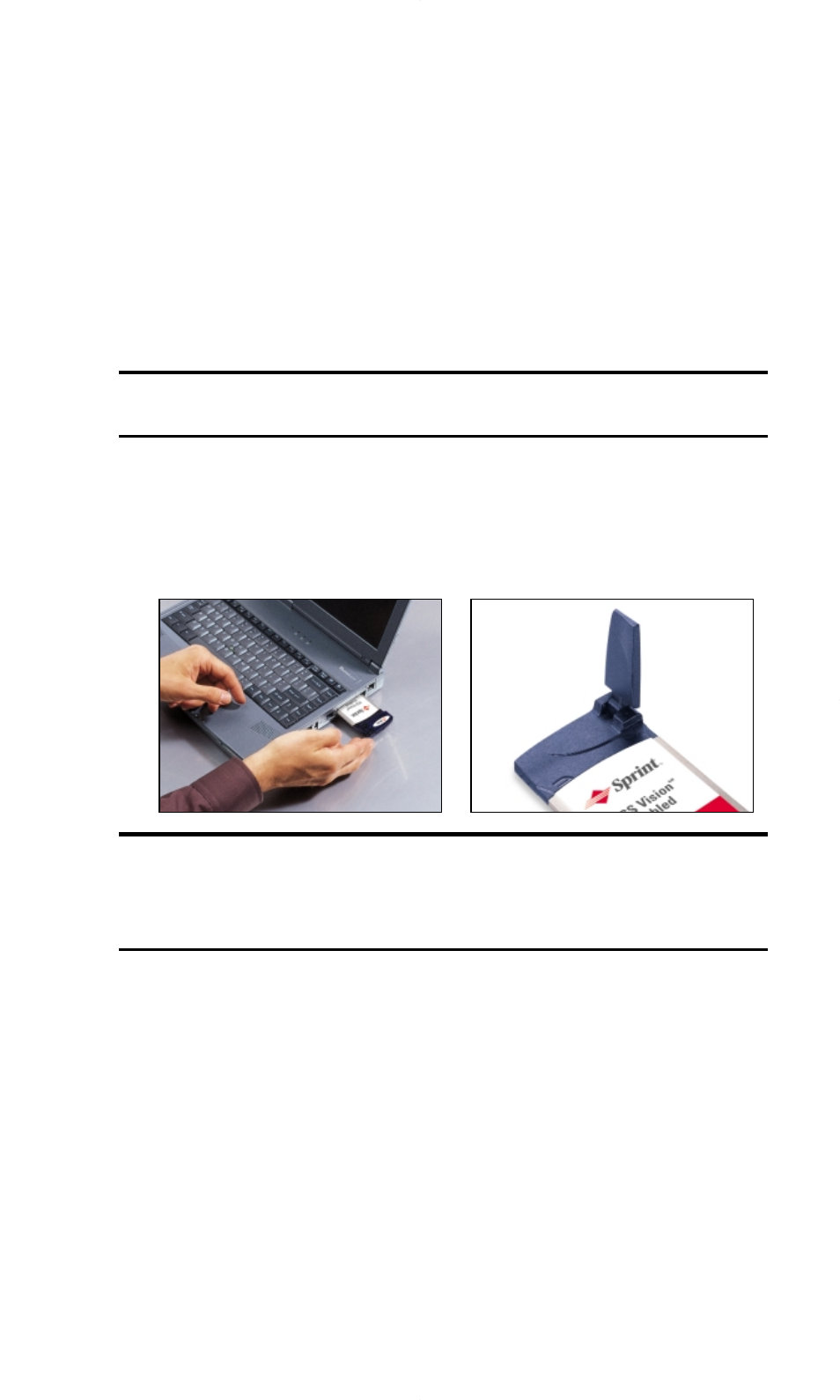

Insert the PCS Connection Card into your computer’s PC Card slot (A)
with the Sprint label facing up. Then raise the antenna so that it is fully
extended and pointed up at a 90 degree angle (B). Use in any other
configuration may exceed FCC RF Exposure limits.
A B
WARNING: Once the card is inserted,do not physically remove the
PCS Connection Card until you have completed the Unplug/Eject
process described on page 32. Removing the card improperly may
cause a fatal error to your PC.
When you insert the card, the following should occur:
4
If sound effects are enabled, the computer beeps.
4
The PC Card icon appears in the status area (unless the feature has
been disabled).
4
The PCS Connection Manager Software launches (unless the
auto-launch feature has been disabled).
The card is powered as soon as you insert it.
Section 2: Installing the PCS Connection Card
2C: Inserting and Removing the PCS Connection Card 31
