-11-
W1701 1HP Shaper
SE
T
U
P

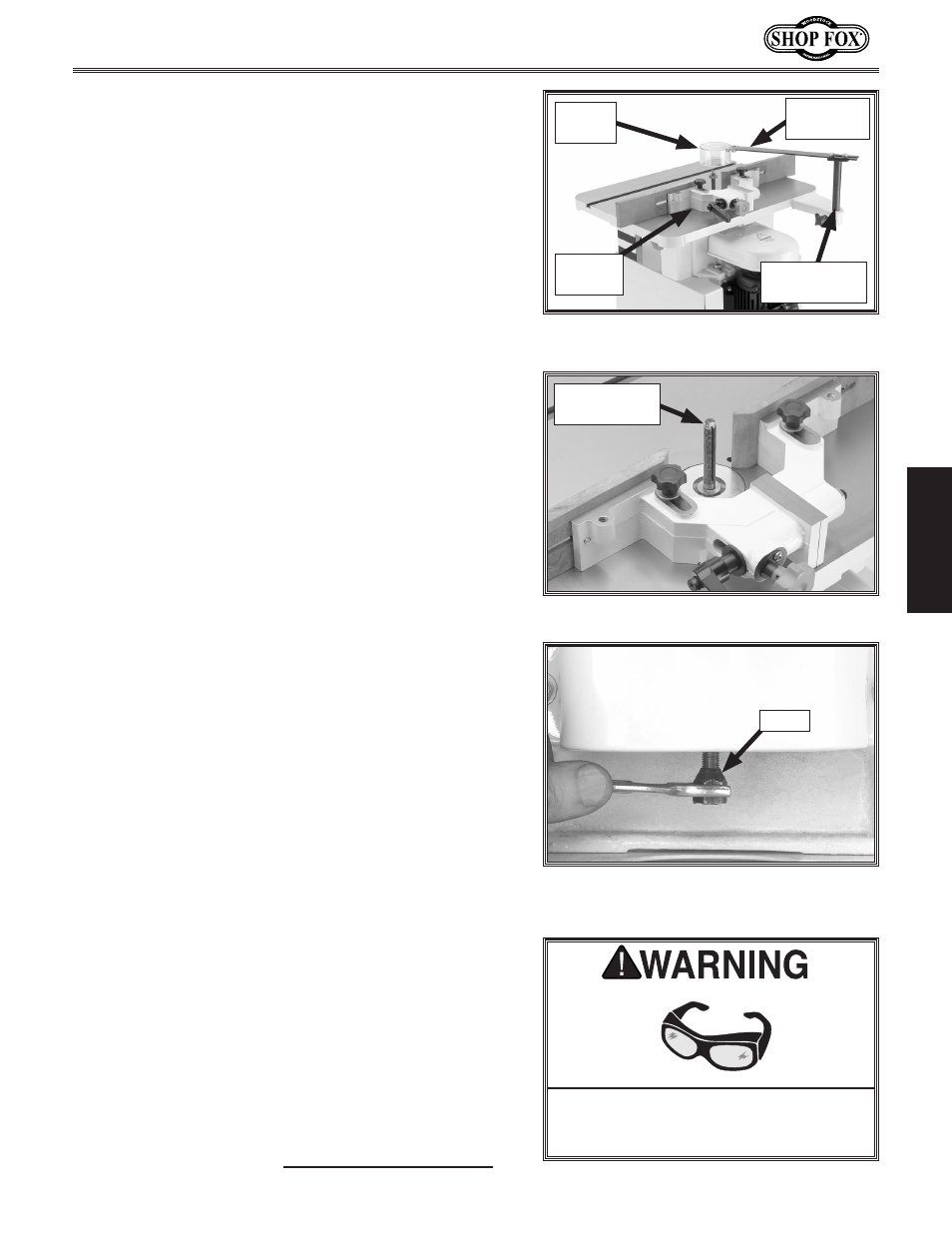

8. For custom fence facing, make sure the screw heads
are countersunk completely below the surface of the
fence face.
9. Connect the safety guard bar to the safety guard
shaft with two M8-1.25 x 12 bolts and the 8mm flat
washers. See Figure 12.
10. Connect the safety guard to the safety guard bar
with two M4-0.7 x 12 Phillips ® head screws and the
M4-0.7 nuts. See Figure 12.
11. Position the extension bar and safety guard on the
main fence housing and install the T-lock handle.
See Figure 12.
12. Position the guard as close as possible to the spin-
dle/cutter without impeding the feeding path of the
workpiece.
13. Place an 8mm open-end wrench on top the spindle
(see Figure 13).
14. Using a 14mm open-end wrench on the drawbar nut,
( Figure 14), make sure the drawbar nut is tight, but
DO NOT over-tighten the drawbar nut.
Note: This is an important safety measure that
must be done before the Test Run on the next
page.
Figure 12. Guard and fence assembly.
Safety
Guard
Fence
Housing
Safety
Guard Bar
Safety Guard
Shaft
Figure 14. Threading on drawbar nut with
the tapered end up.
Taper
Figure 13. Wrench location on spindle.
Hold Spindle
Here
Complete this process once you have familiarized yourself
with all instructions in this manual .
To test run the shaper, do these steps:
1. Read the entire instruction manual first, so you
are familiar with all controls and functions of the
shaper!
2. Connect your machine to the power source.
3. Turn the shaper ON. The shaper should run smoothly
with little or no vibration.
— Immediately turn the jointer OFF if you suspect
any problems, and fix those problems before start-
ing the shaper again. If the source of an unusual
noise or vibration is not readily apparent, contact
our technical support for help at (360) 734-3482 or
contact us online at [email protected].
Test Run
Projectiles thrown from the machine
could cause serious eye injury. Wear
safety glasses during the test run!
