7
Overview

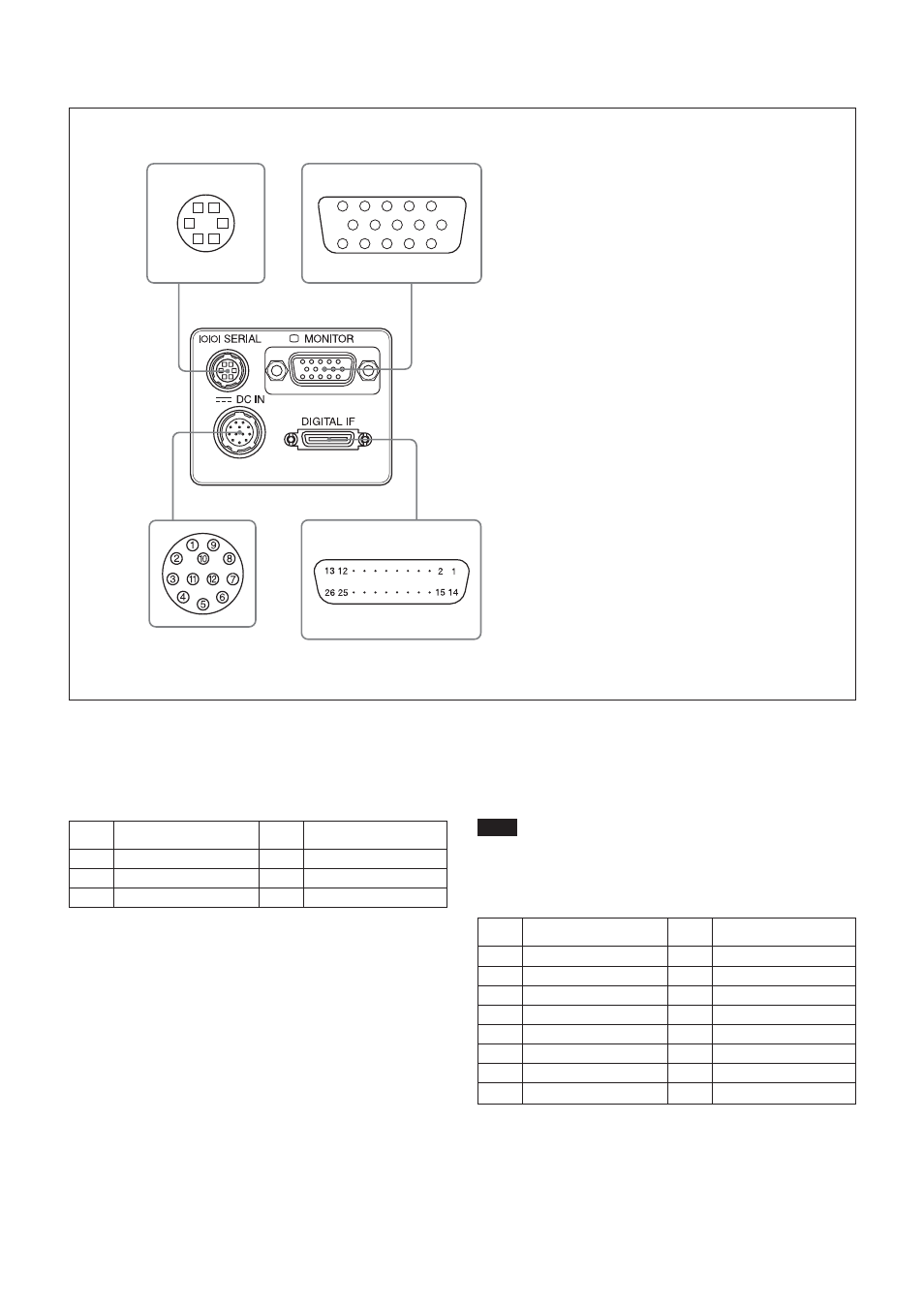

Rear
4 RS-232C connector (6-pin)
5 Monitor output connector (15-pin)
4 RS-232C connector (6-pin)
You can connect a serial cable to this connector to
control a camera module from a camera control device
(e.g., PC).
6 DC IN (PC power input) connector (12-pin)
7 DIGITAL IF (Interface) connector (26-pin) 6
4 5
7
6 1 5 4 3 2 1
10 9 8 7 6
15 14 13 12 11
4 3
2 5
Pin
Signal
Pin
Signal
No. No.
1 TXD 4 NC
2 RXD 5 NC
3 Ground 6 NC
5 Monitor output connector (15-pin)
You can connect a monitor cable to this connector to
display an image on a multiscan monitor supporting
UXGA resolution.
Note
If you connect a multiscan monitor that does not
support UXGA resolution, an image may not be
displayed.
Pin
Signal
Pin
Signal
No. No.
1 R output 9 NC
2 G output 10 Ground
3 B output 11 NC
4 NC 12 NC
5 Ground 13 HD output
6 Ground 14 VD output
7 Ground 15 NC
8 Ground
