Functions of the XCL-U1000C/U1000
TRG
LVAL
DVAL
Output

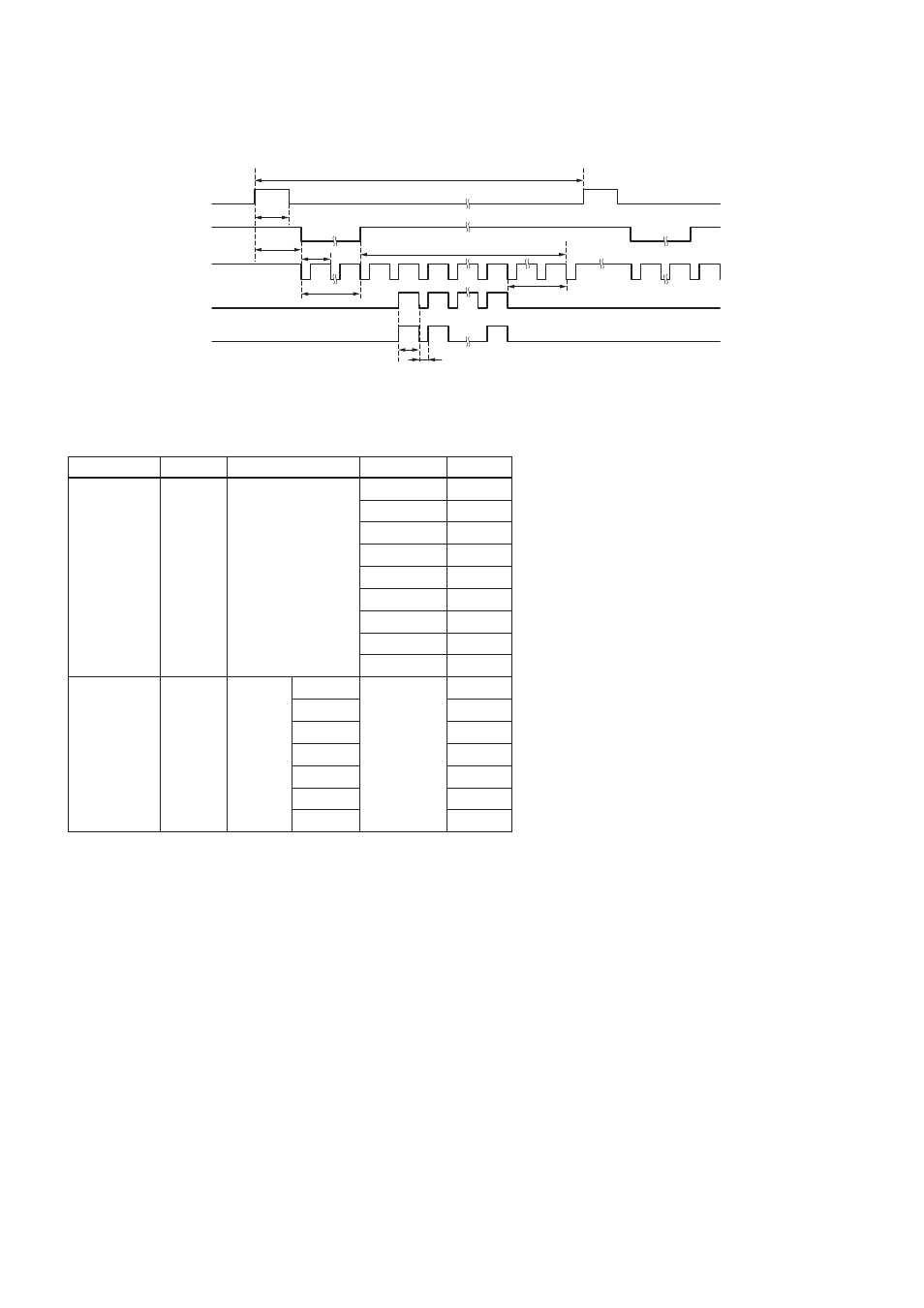

Vertical timing
(Horizontal timing is the same as Normal mode.)
FVAL
T1
T2
T3
1H
b
a
2 1
1600CL
320CL
d
c
Trigger mode T1 *1 T2 Shutter *2 T3 [ms]
1/30 s 37.40
1/100 s 14.04
1/120 s 12.40
See the
1/250 s 8.08
Edge detection formula on
100 us or more,
1/500 s 6.06
the right.
1 s less than
1/1000 s 5.08
1/2000 s 4.53
1/5000 s 4.28
1/10000 s 4.17
66.7 ms 70.82
33.3 ms 37.34
See the 100 us or
10.0 ms 14.02
Puls width
formula on more, 8.33 ms OFF 12.33
detection
the right. 1 s less than
4 ms 8.03
1 ms 6.03
100 us 4.13
*1 Set a trigger cycle (1/T1) using the following
formula.
T1>1920 (a+b)/36000+0.1[ms]
Refer to the table of the high rate scan mode (no
external trigger) for the values of “a,” “b,” “c,” and
“d.”
*2 In the edge detection mode, you cannot set a shutter
speed slower than 1/15 s. If the rate is over 30 fps,
you cannot set a shutter speed to 1/30 s. Set a rate
referring to the table of the high rate scan mode (no
external trigger).
■High rate scan Mode with external trigger
