6

Overview

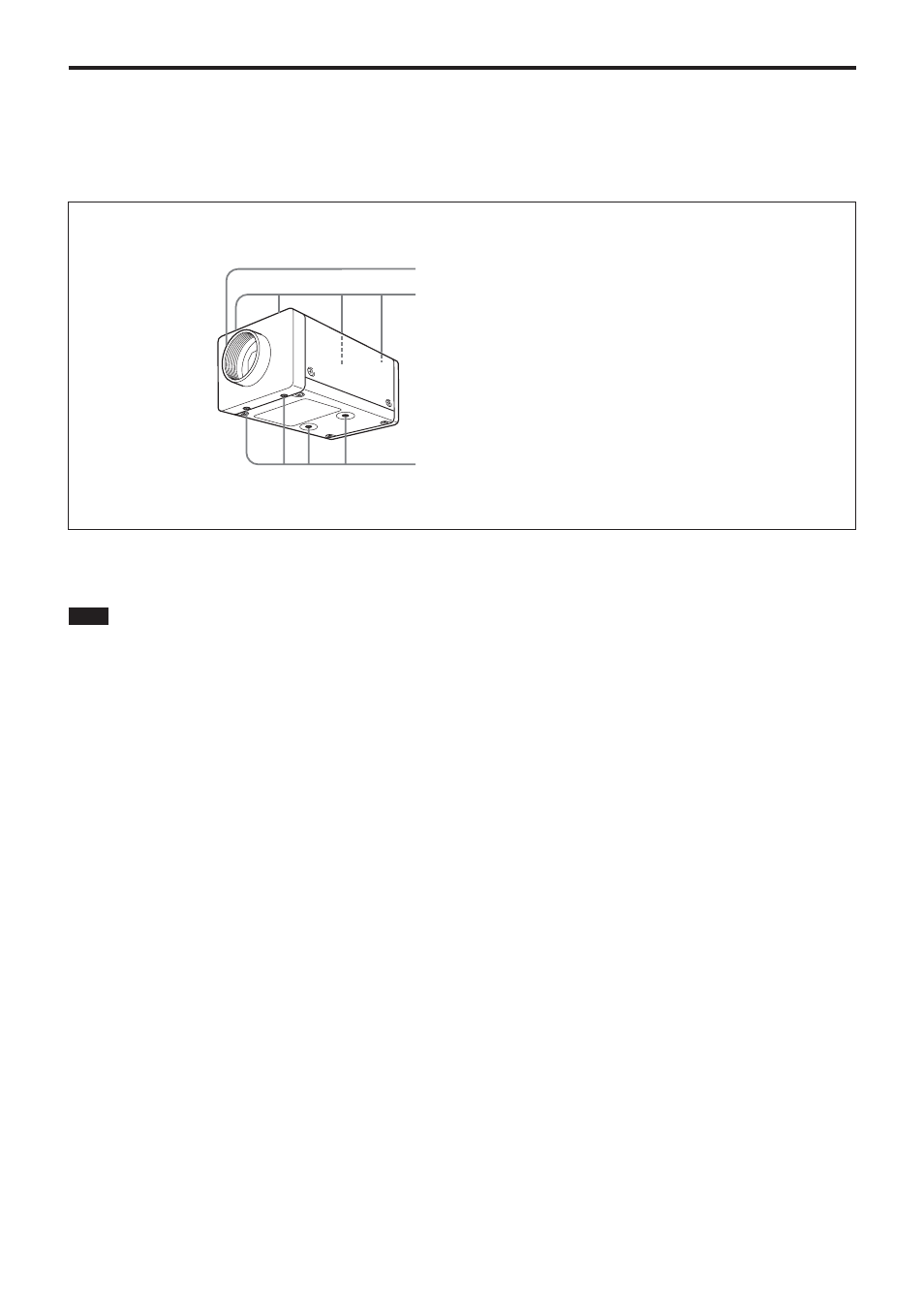

Location and Function of Parts and Controls

Front/Top/Bottom

1

Lens mount (C-mount)

Attach any C-mount lens or other optical equipment.

Note

The lens must not project more than 7 mm (9/32 inch)
from the lens mount.

2

Reference holes (at the top)

3

Reference holes/Tripod screw holes (at the

bottom)
These precision screw holes are for locking the camera
module. Locking the camera module into these holes
secures the optical axis alignment.

You can install the camera on a tripod. To install on a
tripod, you will need to install a tripod adaptor VCT-
ST70I to the camera on the reference holes 3.

Lens mount (C-mount)

Reference holes (at the top)

Reference holes/Tripod screw holes (at the bottom)

3

2

1
