Functions of the XCL-U1000C/U1000
Functions of
the XCL-U1000C/U1000
About the Camera Modes
Description: Outputs each independent pixel video
signal for 1/14.976 second.
Application: Use this mode to provide continuous
standard video output.
■Normal Mode

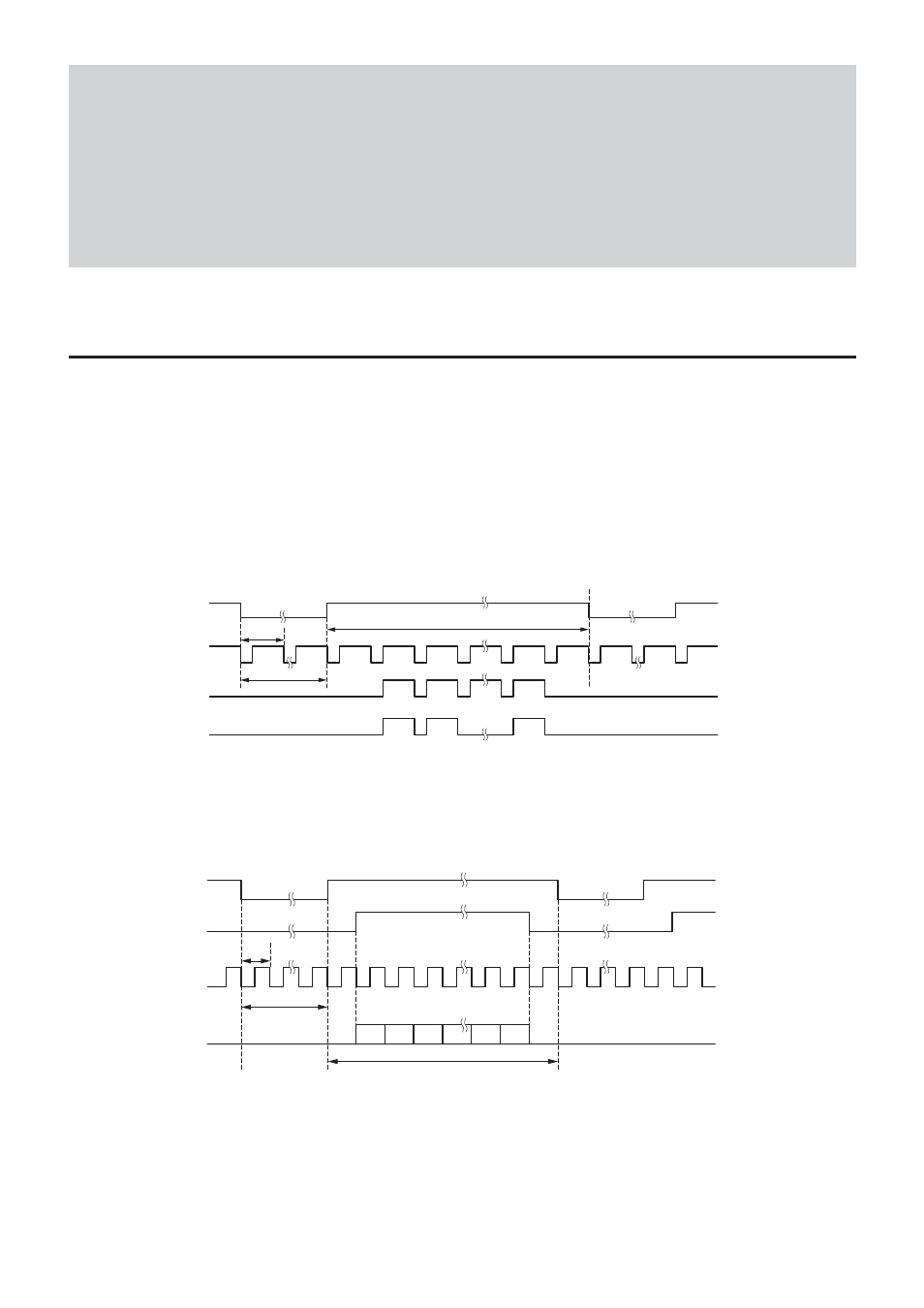

Vertical timing
1V=1252H
FVAL
LVAL
DVAL
Output
1H
50H
1202H
2
1
1200
LVAL
DVAL
Clock
Output
Horizontal timing
1H=1920CL
1CL=1/36 MHz=27.8 ns
1CL
318CL
2
1
1599
3
1600
1602CL
