Door assembly parts – Southbend STRG-5D User Manual
Page 41
S
TRATO
S
TEAM
C
OUNTERTOP
S
TEAMER
S
ERVICE

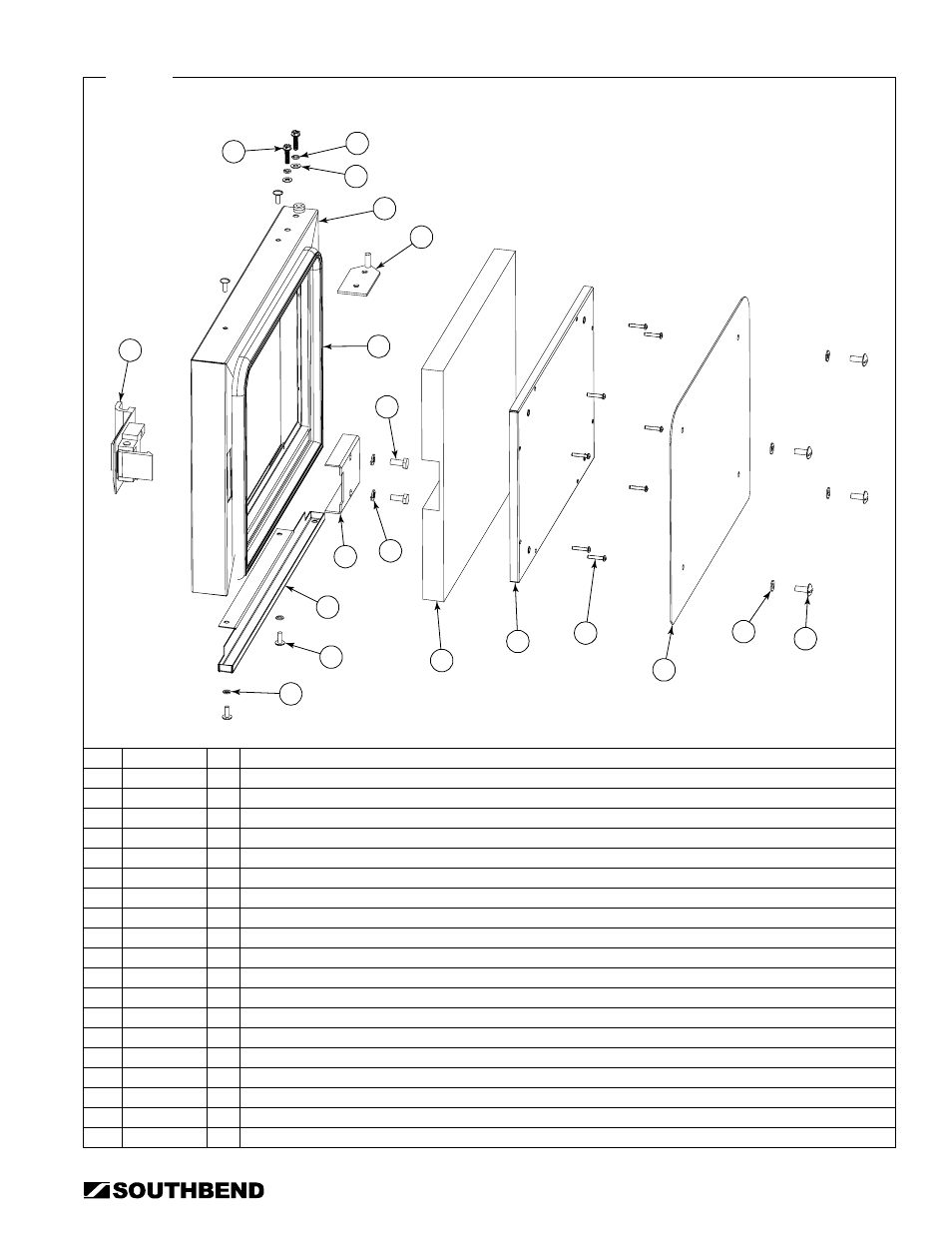

Figure 25
Door Assembly Parts
3
4
1
2
5
6
7
8
9
10
13
14
11
12
15
16
17
18
19
Note: The entire door, assembled, can be ordered (see page 39).
Key Part
Number Qty Description
1 1177317
1
LATCH ASSEMBLY
2 1177344
4
SCREW, #10-24 X 3/4 SLOTTED HEX
3 1146527
6
WASHER #10 LOCK, SS, 300
4 1146526
4
WASHER, #10, FLAT
5 1185053
1
PANEL W/A, R2 STACKABLE
6 1185028
2
HINGE PLATE W/A
7 1185115
1
GASKET, DOOR R2 REDESIGN
8 1146268
2
BOLT, 1/4-20 X 5/8 HEX HEAD, SS
9 6600412
2
LOCK WASHER, SS
10 1177086
1
RETAINER
11 1185048
1
TRAY, DOOR CONDENSATION
12 1146390
4
SCREW, 10-24 X 1/2, SS, TRUSS SLOT
13 PH-292
2
NYLON WASHER, 1/4 X 1/2 X 1/8
14 1185029
1
INSULATION, DOOR
15 1185023
1
SUPPORT W/A , DOOR GASKET
16 1173254
8
SCREW, 6-32 X 3/4, SELF TAP
17 1185118
1
RETAINER, DOOR GASKET
18 1180460
4
WASHER, FLAT #10
19 1173224
4
SCREW, 1/2-20 X 5/8 S, SLOT TRS
O
WNER
’
S
M
ANUAL
1185290 P
AGE
41
OF
50
