S ERVICE S TRATO S TEAM C OUNTERTOP S TEAMER

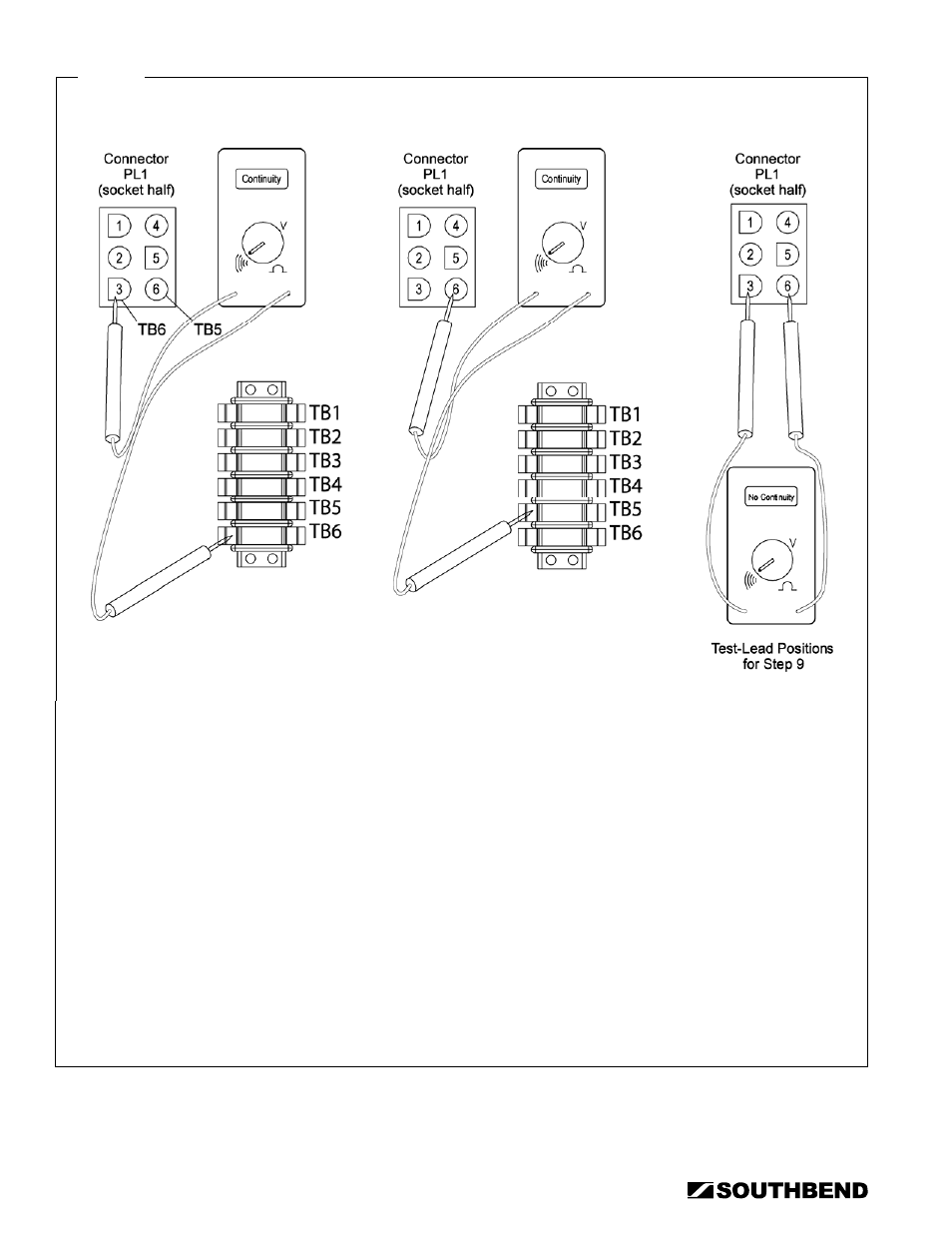

Figure 18
Power Switch Check
1. DISCONNECT POWER AT CIRCUIT BREAKER.
5. Remove right side panel.
6. Turn control lever from OFF to ON and then from ON to OFF while looking to see that the power switch is
properly actuating when the lever moves.
7. Disconnect the connector (PL1) that connects the control-panel component wires to the wiring harness.
8. As shown above, place one test lead on terminal TB6 of the terminal board and the other test lead on Pin 3 of
connector PL1 (the socket half, which is wired to the control panel).
9. Check for continuity with control lever in OFF position (there should not be continuity).
10. Check for continuity with control lever in ON position (there should be continuity).
11. Repeat steps 5 through 7 with one test lead on terminal TB5 of the terminal board and the other test lead on
Pin 6 of connector PL1 (as shown above).
12. Place one test lead on PL1 Pin 3 and the other test lead on PL1 Pin 6 (as shown above). Check for continuity
with control lever in the ON position (there should not be continuity).
13. If continuity checks are incorrect, replace power switch.
14. Reconnect lead wires.
