introducing your real time DVR _07

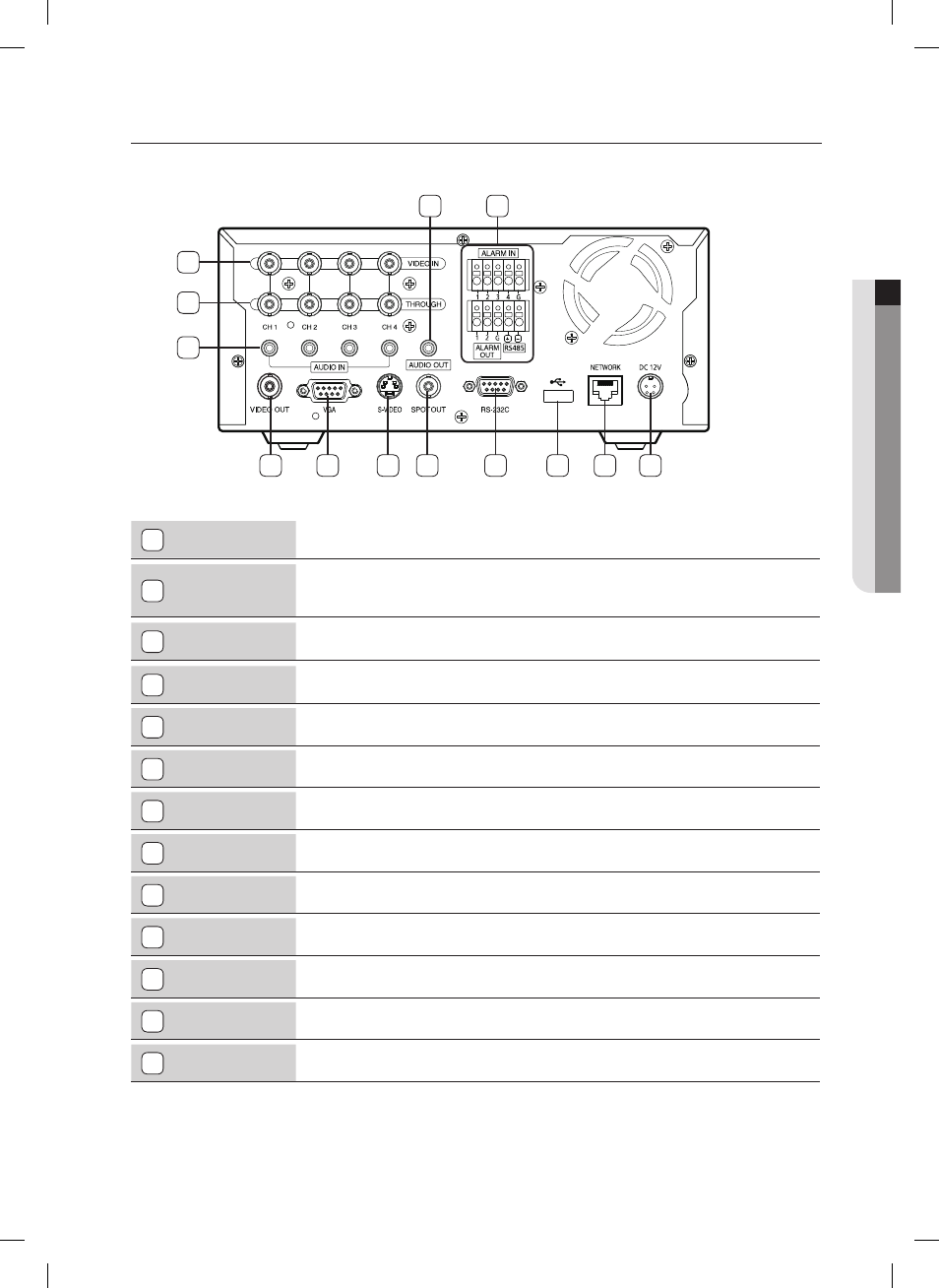

REAL PANEL jACKS
10
13
12
2 1
7 6 5 4 3
11
9 8
1 AUdIO OUt
This is the port (RCA Jack) for an audio signal output.
(When outputting an audio signal, please use the speaker with a built-in audio amplifier.)
2 ALARm
ALARM IN 1~4: This is the port for an alarm input.
ALARM OUT 1~2: This is the port for an alarm output.
RS485: This is the port for connecting PTZ.
3 dC-IN This is the connector for a 12V power socket.
4 NetWORK This is the port for connecting to a network.
5 USB
This is the port for connecting a USB type of device.
It is used when you backup a video data or upgrade the system software.
6 RS-232C This is port for engineering use (no DVR functionality).
7 SPOt OUt This is the port (BNC-type) for the SPOT OUT output.
8 S-VIdeO This is the port for the S-Video signal output.
9 VgA This is the port for the VGA signal output.
10 VIdeO OUt This is the port (BNC-type) for a composite audio signal output.
11 AUdIO IN This is the port (RCA Jack) for an audio signal input.
12 tHROUgH The THROUGH port can be used to send a video signal to another video device.
13 VIdeO-IN
This port is the port (BNC-type) for a composite video signal input.
It supports both the NTSC and PAL video signals.
