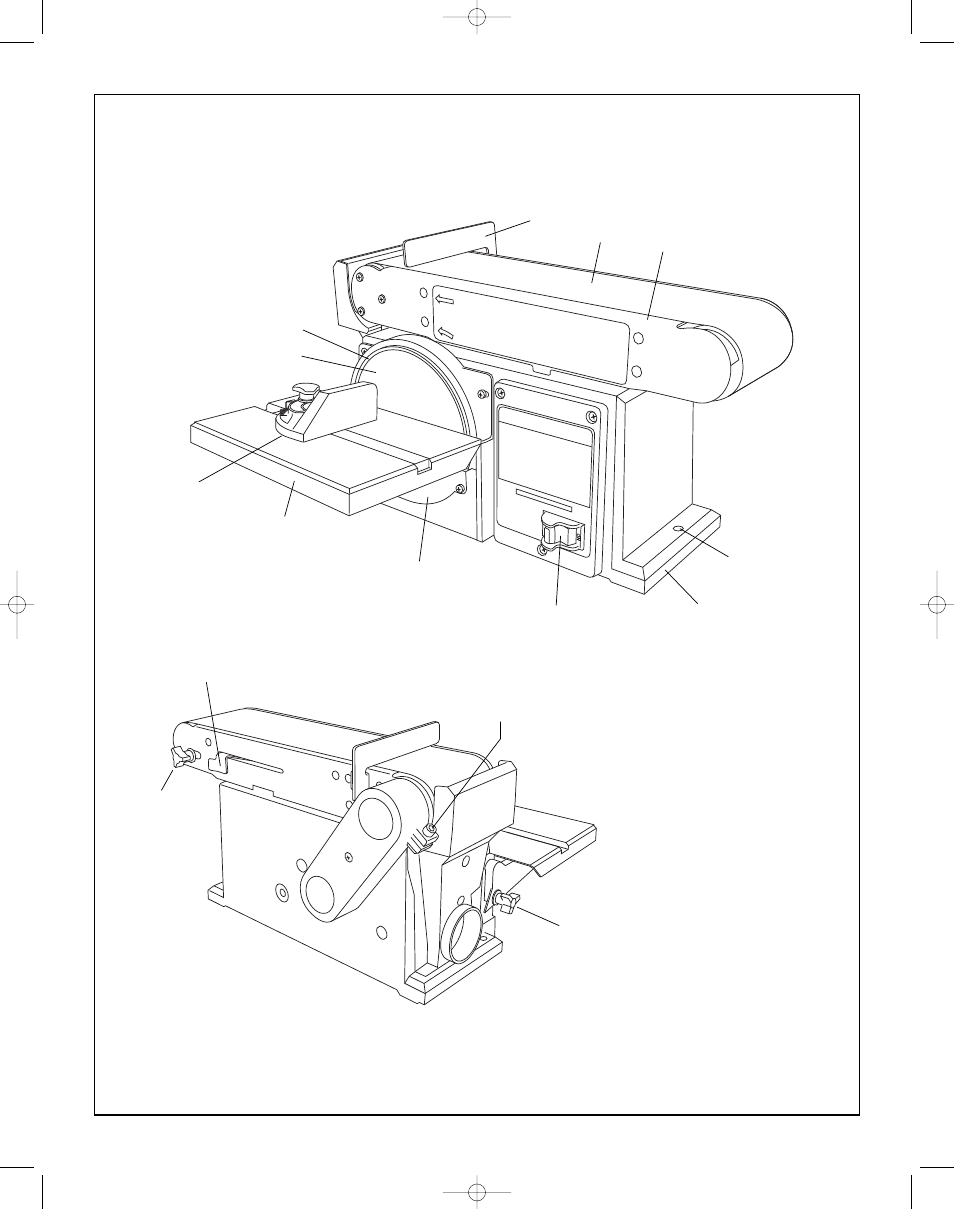

Getting To Know Your Belt/Disc Sander
1
3
2
4
5
8
9
13
14
15
7
6
10
11
12
1. On/off switch
2. Base
3. Mounting holes (x2)
4. Work table
5. Miter Guage
6. Table lock knob
7. Disc guard
8. Sanding disc
9. Sanding plate
10. Work support
11. Sanding belt
12. Belt bed
13. Belt tracking knob
14. Belt tension lever
15. Belt bed locking screw
